- 39 -

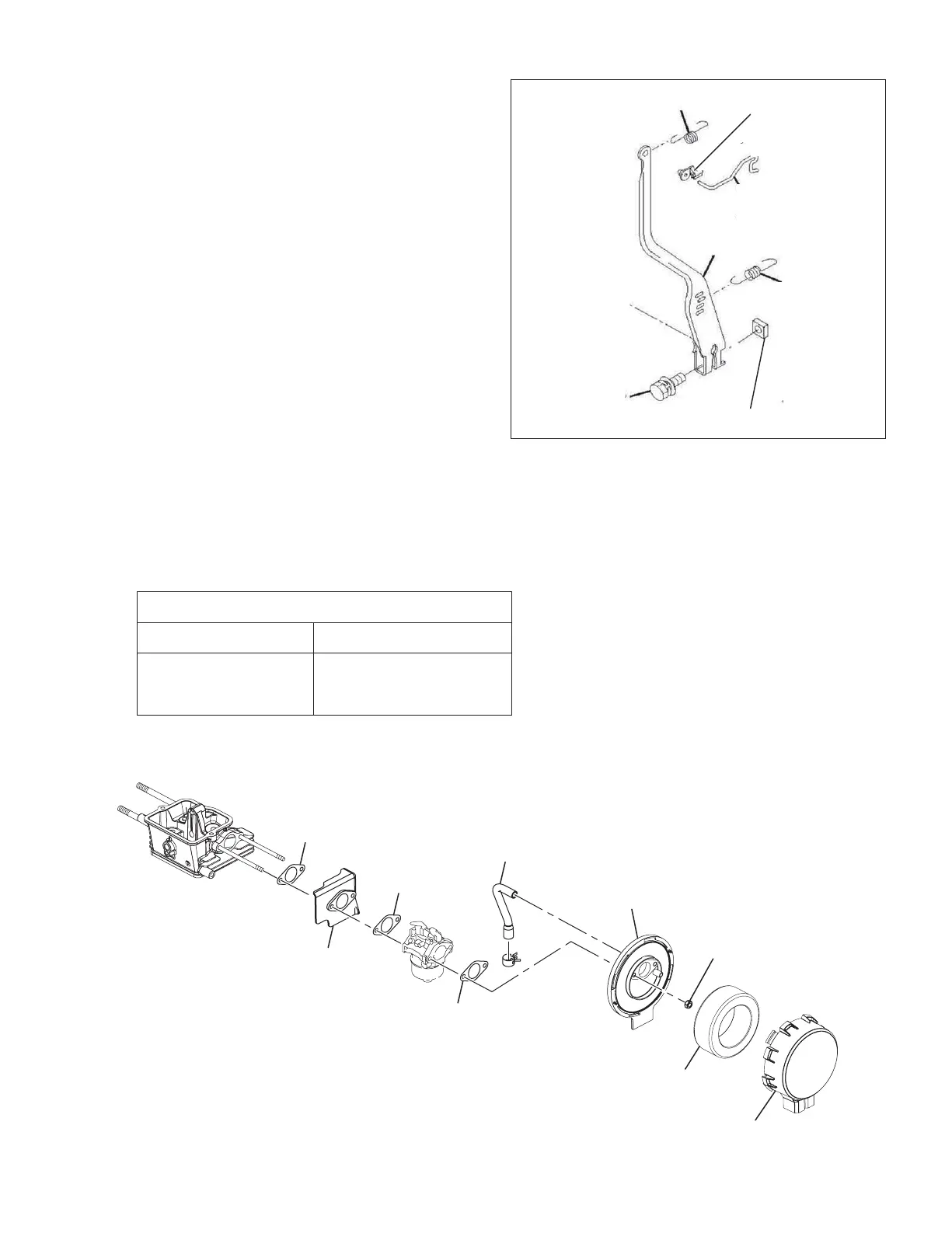

(21) AIR CLEANER BASE
Insert the breather pipe into the breather cover and air cleaner base then mount the air cleaner base
M6 salf lock nut:2pcs
Tightening torque
Float type carburetor Diaphragm type carburetor
70 - 90 N
・
m
(70 - 90
kgf
・
cm )
(51 - 65 ft
・
lb)
40 - 50 N
・
m
(40 - 50 kgf
・
cm )
(29 - 36 ft
・
lb)
Then install the element and cleaner cover
(20) GOVERNOR LEVER, CARBURATOR
(a) Mount the governor lever on the governor
shaft Do not adjust the bolt on the governor
lever yet
(b) Attach the governor rod and rod spring to
the governor lever
(c) Replace the gasket of insulator with a new
one and mount the insulator on the cylinder
head intake side
(d) Hook governor rod to the governor lever
and throttle lever of carburator
mount the carburator to the cylinder head
(e)
Hook the linkage bushing to the governor rod
ROD SPRING LINKAGE
BUSHING
GOVERNOR ROD
GOVERNOR LEVER
GOVERNOR
SPRING
BOLT AND
WASHER AY
NUT
GASKET
(INSULATOR)
INSULATOR 2
GASKET
(CARBURETOR)
RUBBER PIPE
AIR CLEANER BASE
ELEMENT
AIR CLEANER COVER
M5 SELF LOCK NUT : 2pcs.
GASKET
(CARBURETOR)
FLOAT TYPE CARBURETOR
