Subaru outback 2017 - Climate Control Panel; Type a

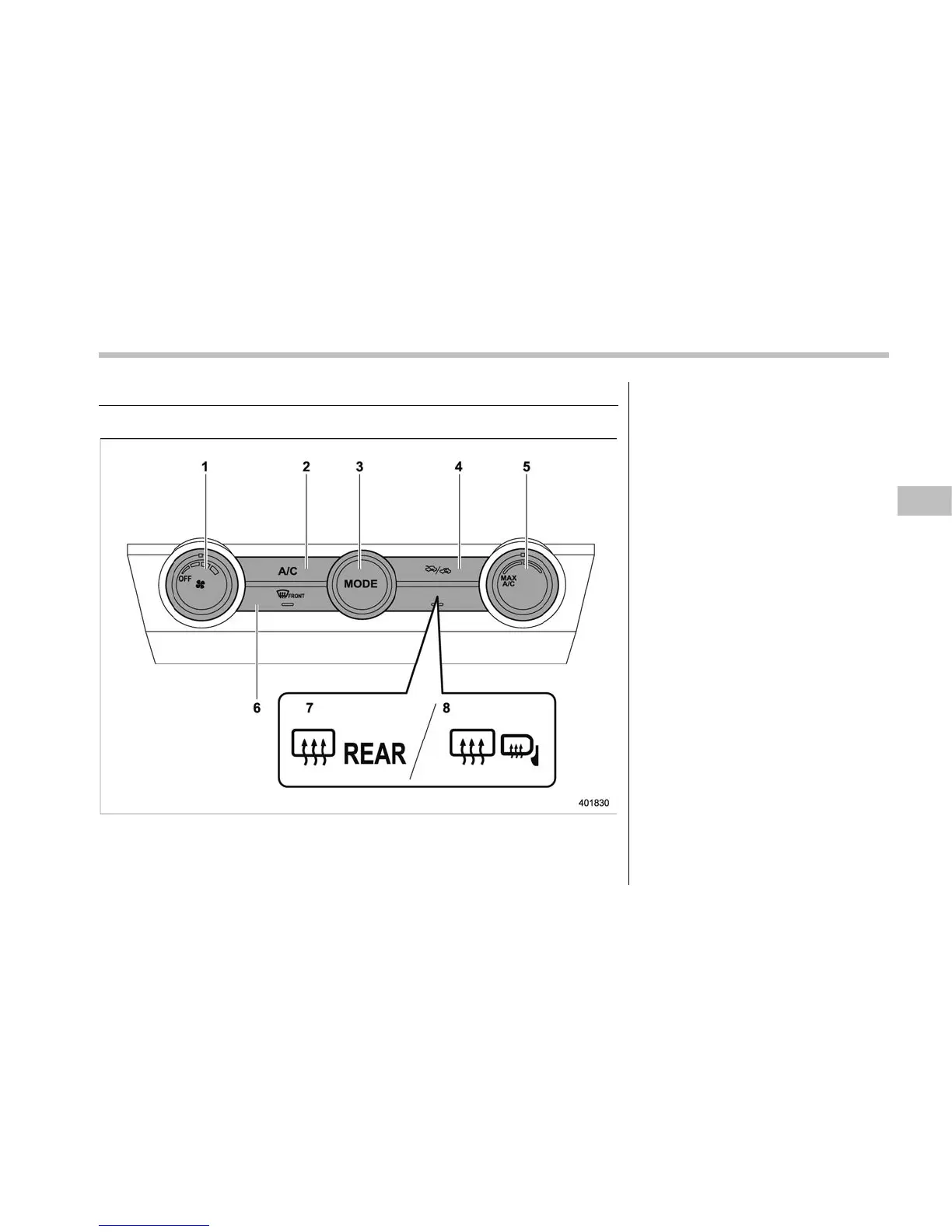

Climate control panel
& Type A
1) Fan speed control dial (Refer to “Fan
speed control” F4-8.)
2) “A/C” button (Refer to “Air conditioner
control” F4-8.)
3) Airflow mode selection button (Refer to
“Airflow mode selection” F4-6.)
4) Air inlet selection button (Refer to “Air
inlet selection” F4-8.)
5) Temperature control dial (Refer to “Tem-
perature control” F4-7 and “MAX A/C
mode” F4-7.)
6) Defroster button (Refer to “Airflow mode
selection” F4-6 and “Defrosting” F4-9.)
7) Rear window defogger button (models
without outside mirror defogger) (Refer to
“Defogger and deicer” F3-61.)
8) Rear window and outside mirror defogger
button (models with outside mirror de-
fogger) (Refer to “Defogger and deicer”
F3-61.)
Climate control/Climate control panel
– CONTINUED –
