Subaru outback 2017 - Type B

Climate control/Climate control panel
& Type B

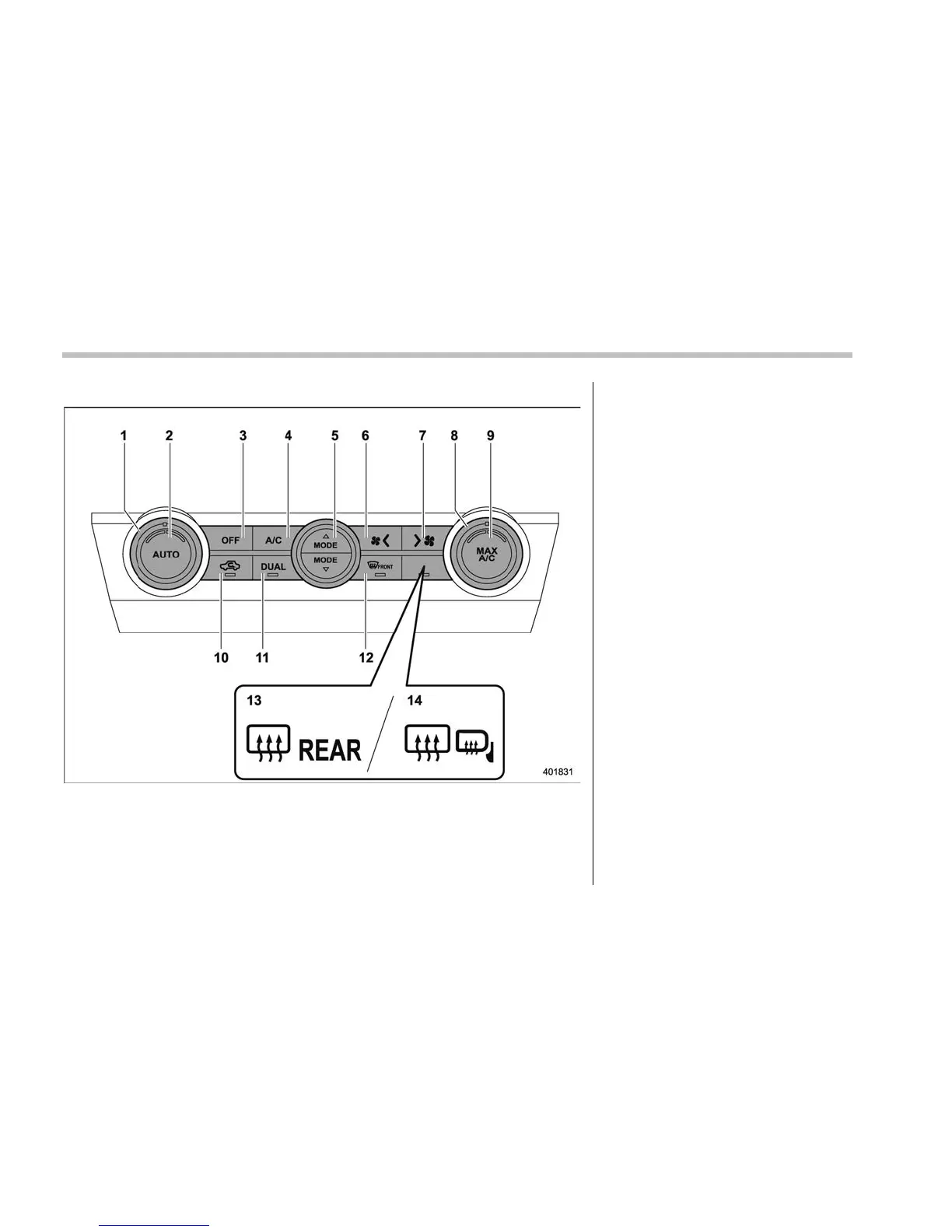

1) Temperature control dial (Refer to “Tem-
perature control” F4-7.)
2) “AUTO” button (Refer to “Automatic
climate control system (type B)” F4-5.)
3) “OFF” button (Refer to “Automatic cli-
mate control system (type B)” F4-5.)
4) “A/C” button (Refer to “Air conditioner
control” F4-8.)
5) Airflow mode selection button (Refer to
“Airflow mode selection” F4-6.)
6) Fan speed control button (for decreasing
the fan speed) (Refer to “Fan speed
control” F4-8.)
7) Fan speed control button (for increasing
the fan speed) (Refer to “Fan speed
control” F4-8.)
8) Temperature control dial (Refer to “Tem-
perature control” F4-7.)
9) “MAX A/C” button (Refer to “MAX A/C
mode” F4-7.)
10) Air inlet selection button (Refer to “Air
inlet selection” F4-8.)
11) “ DU AL” button (Refer to “Automatic
climate control system (type B)” F4-5
and ““DUAL” mode
(type B)” F4-8.)
12) Defroster button (Refer to “Airflow mode
selection” F4-6 and “Defrosting” F4-9.)
13) Rear window defogger button (models
without outside mirror defogger) (Refer to
“Defogger and deicer” F3-61.)
14) Rear window and outside mirror defogger
button (models with outside mirror de-
fogger) (Refer to “Defogger and deicer”
F3-61.)
