Suburban Dynaline 3 A&E Manual 12/2016 Rev.1
35

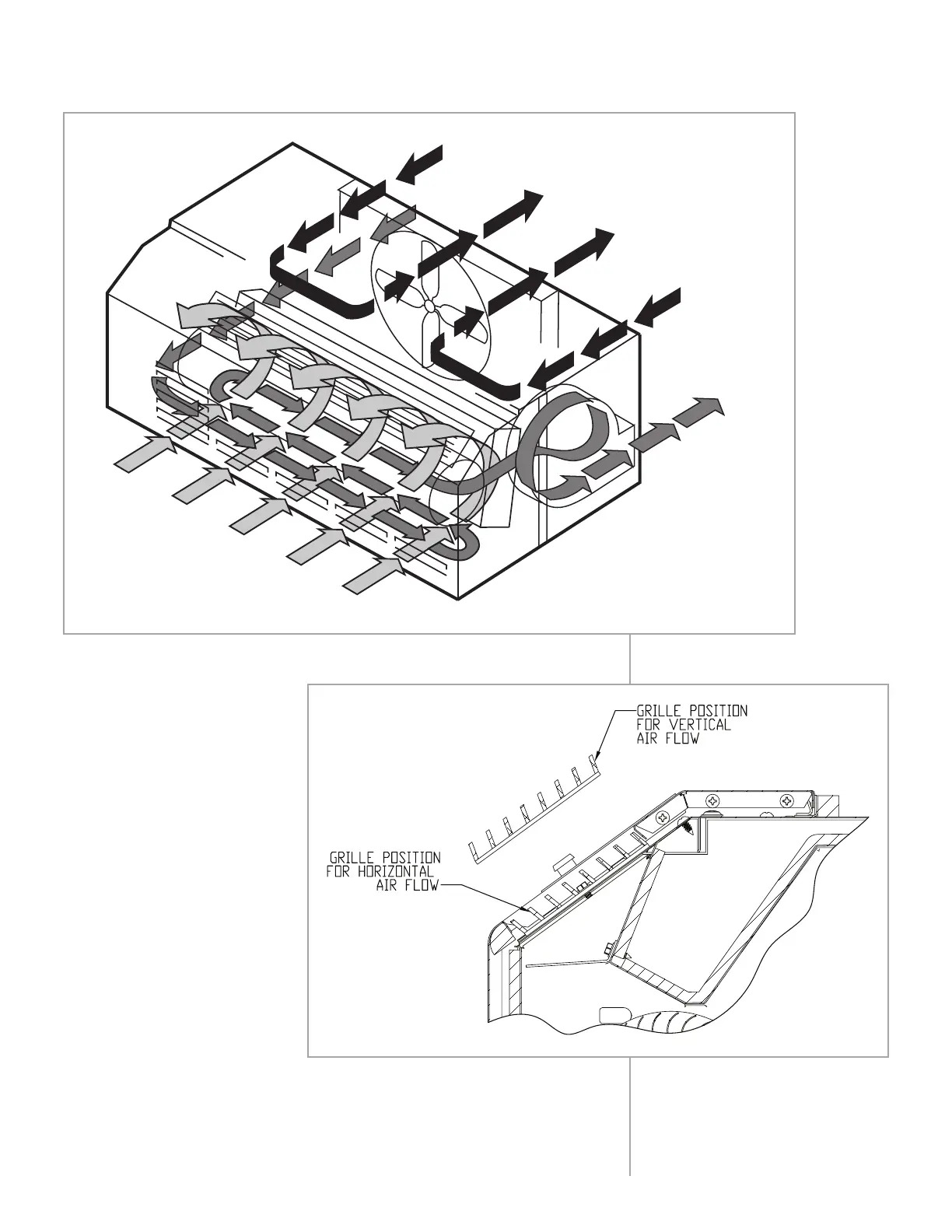

The room air discharge grille
can be installed to deliver
room discharge air either
horizontally or vertically.
The grille is installed from
the factory to deliver
horizontal air flow.
To change the airflow to
vertical, simply remove
the grille and reinstall in
the opposite position.
DYNALINE
™
3 AIRFLOW
Condenser airflow
(A/C mode only)
Combustion
airflow
(Heat mode
only)
Room airflow
(A/C and heat modes)
