Suburban Dynaline 3 A&E Manual 12/2016 Rev.1
19
MAIN GAS VALVE
90ϒ BRASS ELBOW
3/8 MALE X 3/8 FLARE
FIREWALL
GAS INLET TUBE ASSEMBLY
90ϒ BRASS ELBOW
3/8 MALE X 3/8 FEMALE
NIPPLE
UNION
1" CLOSE
NIPPLE
MANUAL SHUT-OFF VALVE

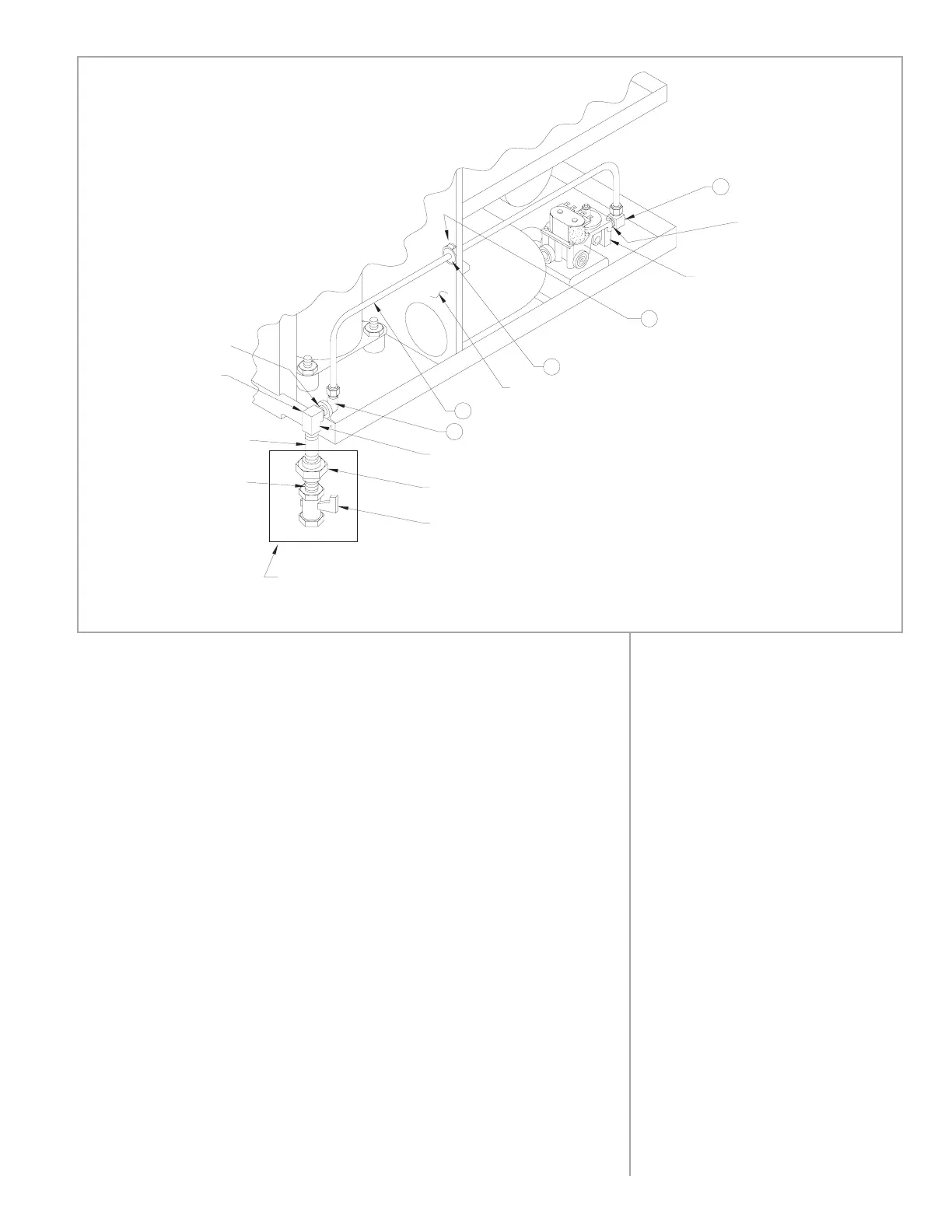

ILLUSTRATION OF SUGGESTED METHOD FOR MAKING
GAS CONNECTION (FIELD SUPPLIED PARTS)
CAULKING
90ϒ HI-EAR ELBOW (3/8 NPT X 3/8 FLARE)
APPLY PIPE THREAD
COMPOUND HERE
APPLY PIPE THREAD
COMPOUND HERE
STREET ELBOW MUST
BE SECURED PRIOR
TO INSTALLING CHASSIS
INTO WALL SLEEVE
A
B
E
D
C
REMOVE PLUG BUTTON FROM FIREWALL
AND INSTALL 1-1/8" UNIVERSAL BUSHING
TWO OPTIONS OF
SUPPLYING
CONDITIONED
AIR TO AN
ADJOINING ROOM.
Rectangular Front
Air Discharge Package
The optional air discharge package allows heating and cooling of an
adjoining room. (Not for use with 0712 Model.) The adaptor is
preassembled for air discharge to the right but can easily be converted
for discharge to the left. The adaptor is 43-1/4" long with female
connection. The extension is 43-1/4" long with 1" male tapered flange.
If you wish to discharge the air to the left, remove the end cover from
the left end of the adaptor and secure it to the right end. Next, turn it
around so the flow of air will be directed toward the front. The grille on the
adaptor need not be removed. Air apportionment can range from
30% to 70% for the primary room and 70% to 30% for the secondary room.
(See Table 6.)
Discharge air is dependent on Dynaline 3 model selected, mode of
operation (heat or cool), and length of total air discharge application.
When additional length is required, a connector is used in conjunction with
the air discharge package. Up to two connectors can be placed
between the adaptor and the extension (DL3-1220 or DL3-1622 only).
Suburban recommends that chassis with air discharge packages be
controlled via remote control thermostats.
Figure 14
