5.2. OPENING THE BATTERY COMPARTMENT
Put the DPV in vertical position on the shroud (5) on a flat surface.
Turn the front fastening knob (9) counter-clockwise. When rotating the knob the nosecone (8) (see fig. 1) starts to
lift. Continue rotating the knob until the nosecone detaches from the body. Remove the nosecone.
5.3. EXTRACTING THE BATTERY

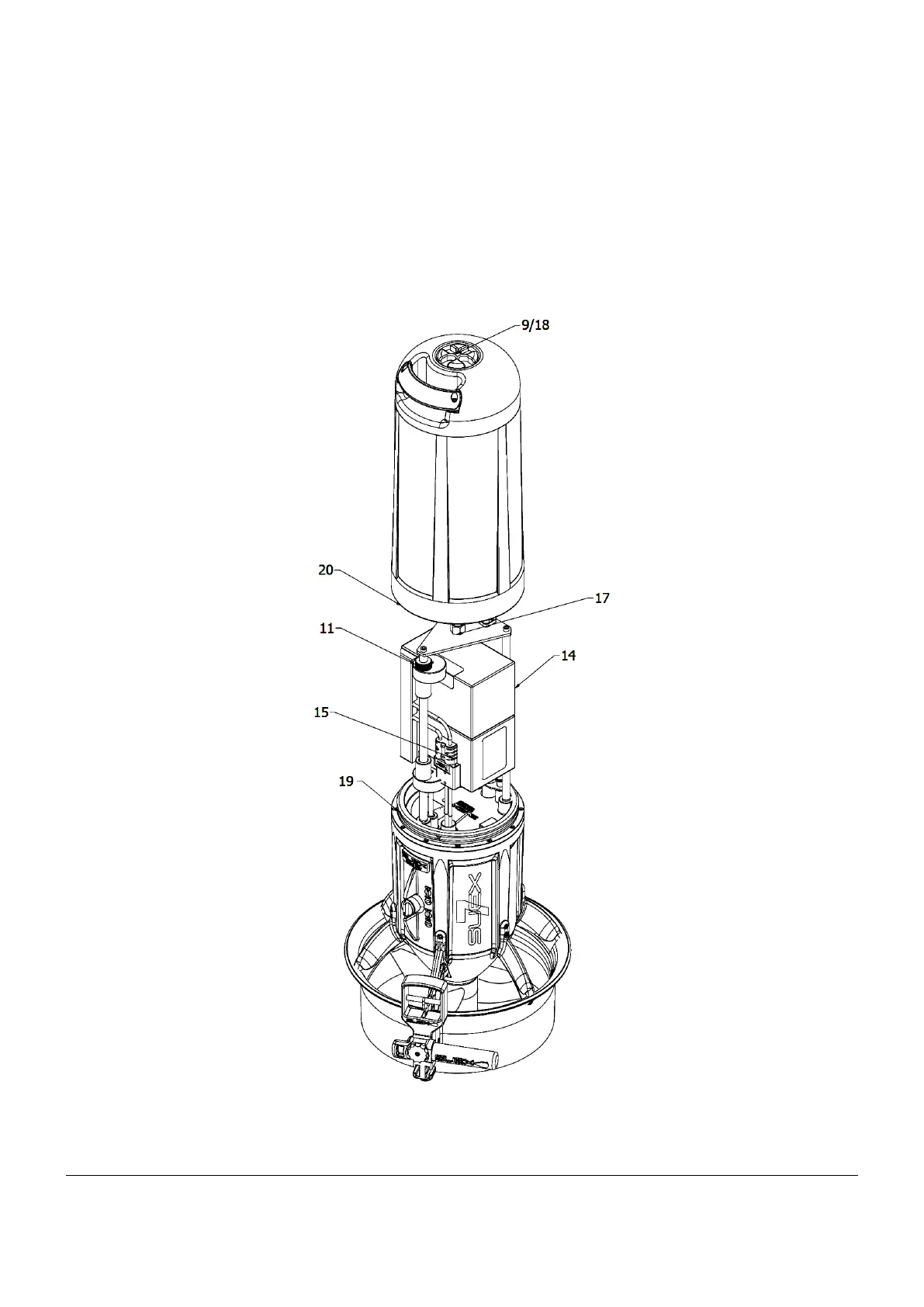

After removing the nose, disconnect the red connector (15) (do not pull the cables), unscrew the ring nut (11) and
loosen the eccentric terminal. Remove the battery (14). (fig.2).
