Section 2
DESCRIPTION
5
2.1 INTRODUCTION
Your new Sullair flood--lubricated rotary screw air
compressor will provide you with a unique experi-
ence in improved reliability and greatly reduced
maintenance.
Compared to other types of compressors, the Sull-
air rotary screw is unique in mechanical reliability,
with “no wear” and “no inspection” required of the
working parts within the compressor unit.
Read Sec t ion 7 ( Maintenanc e) in the O per ator ’s and
PartsListManualtoseehowsurprisinglyeasyitisto
keepyouraircompressor intop operatingcondition.
2.2 DESCRIPTION OF COMPONENTS
Refer t o F igur es 2 -- 1 and 2 -- 2. T he c omponents and
assemblies oftheair compressorareclearlyshown.
Thecompletepackageincludes
compressor
,
elec-
tric motor, starter, compressor inlet system,
compressor discharge system
,
compressor lu-
brication and cooling system
,
capacity control
system, instrument panel, aftercooler,acom-
bination separator and trap, all mounted on a
heavy gauge steel frame.
On air--cooled models, a fan draws airover the mo-
torandforces it out through the combined aftercool-
er and fluid cooler thereby removing the compres-
sion heat from the compressed air and the cooling
fluid.
On water--cooled models, a shell and tube heat ex-
changerismounted on the compressor frame. Fluid
ispipedintotheheatexchangerwherecompression
heat is removed from the fluid. Another similar heat
exchanger cools the compressed air.
Both air--cooled and water--cooled versions have
easily accessible items such as the fluid filters and
controlvalves. Theinlet airfilter isalsoeasilyacces-
sible for servicing.
2.3 SULLAIR COMPRESSOR UNIT, FUNCTIONAL
DESCRIPTION
Sullair air compressors feature the Sullair compres-
sor unit, a single--stage, positive displacement,

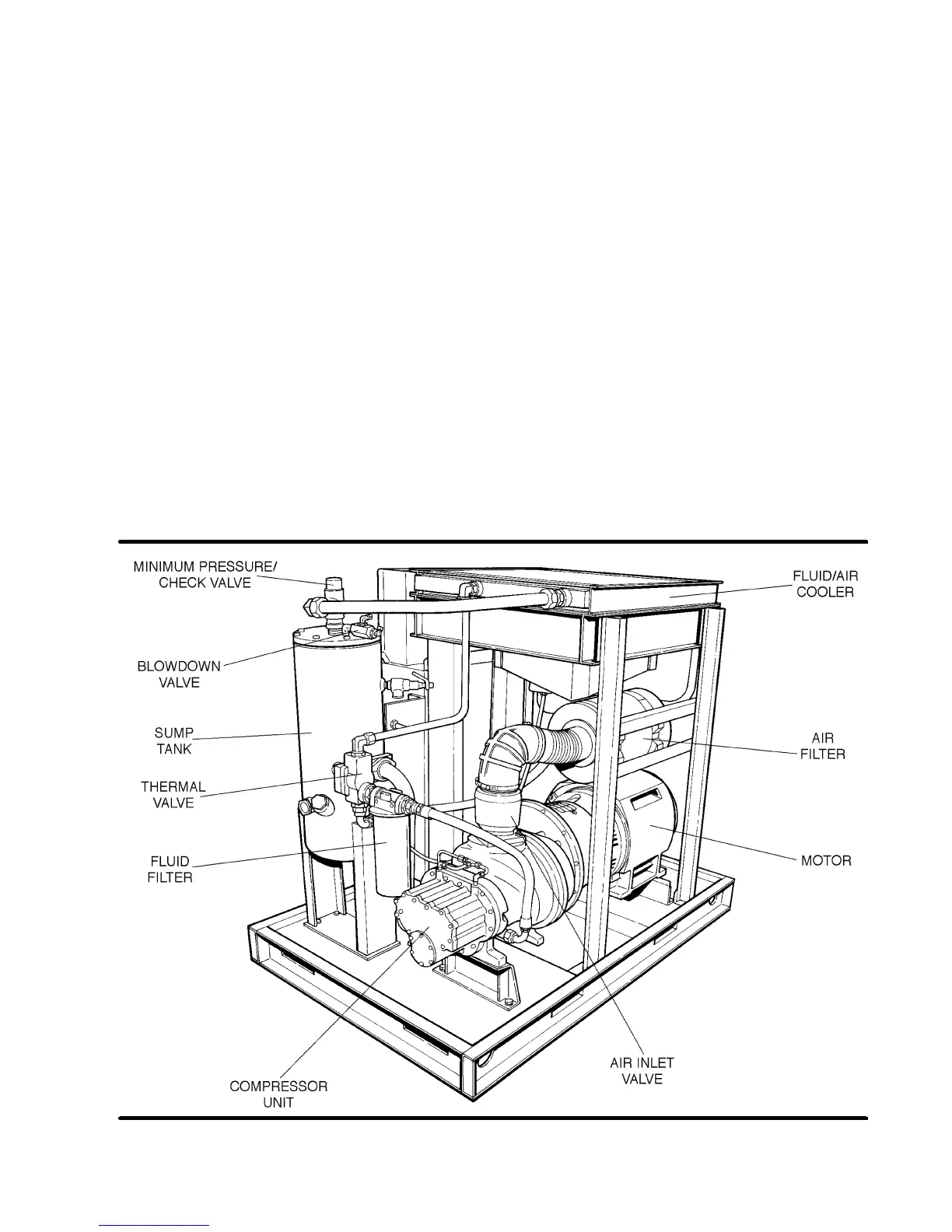

Figure 2-1 Sullair Rotary Screw Air Compressor- Air-cooled (typical component layout)
