English
OPERATING INSTRUCTIONS

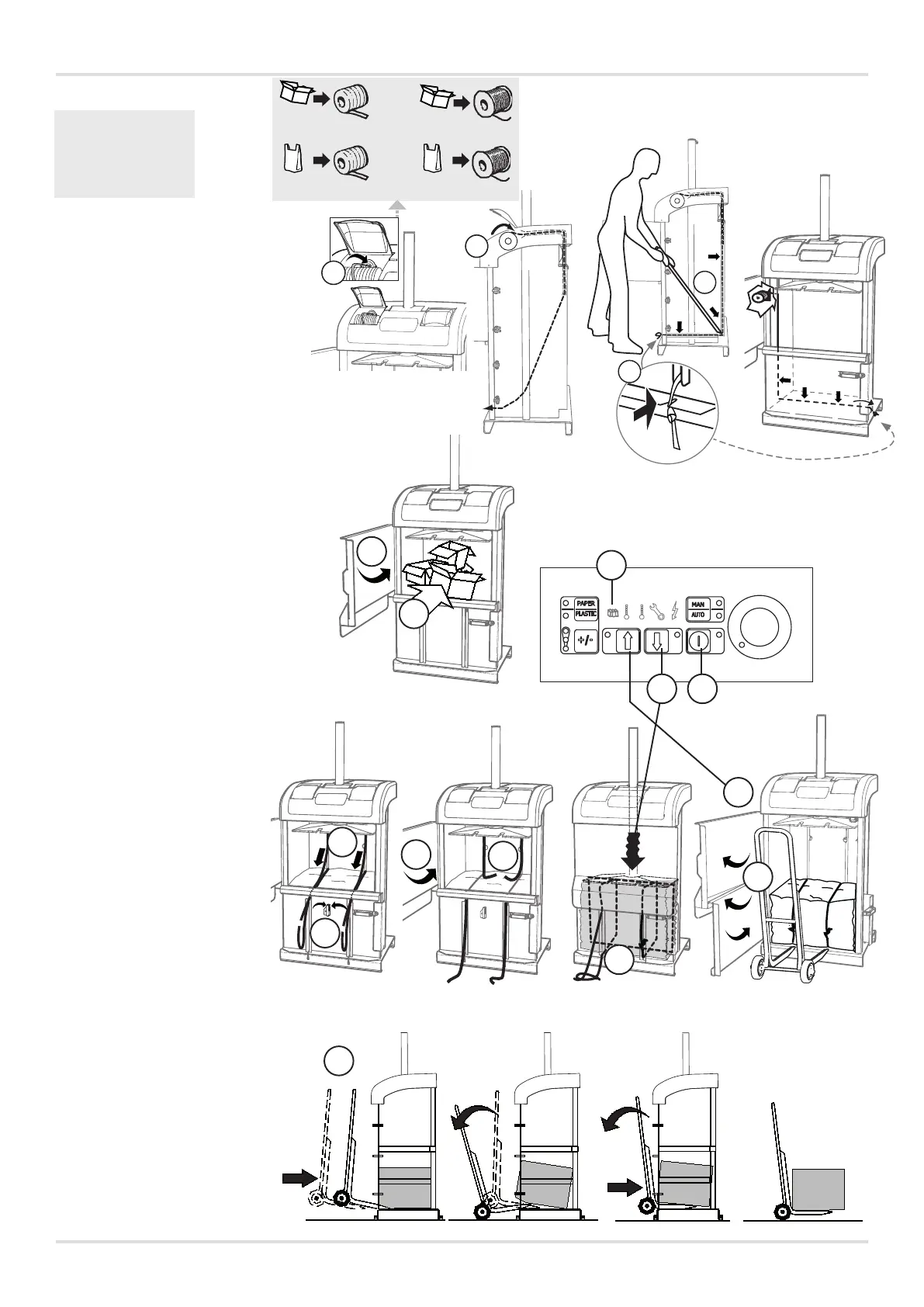

Mounting the straps
1 Open the strap shutters and the
upper door all the way. Place
the strap rolls in the strap holder
compartment and insert the
straps into the strap funnels.
2 When the strap ends are visible
inside the chamber, the straps
can be pulled forward and out
through their respective slots in
the lower door.
3 Tie a knot in each strap and
secure in the slots in the beam
at the lower front edge of the
machine.
4 Using the strap hook, place the
straps in the strap slots in the
bottom and along the back of
the machine.
The machine is now ready for use.
Compaction
5 Distribute the waste evenly
inside the chamber.
6 Close the upper door – the
start button will glow green.
(If the machine is set to
“AUTO” an automatic
compaction cycle will start
once the door is closed, and
step 7 will be skipped.)
7 Press the start button for a
manual compaction cycle.
WARNING!
Only the operator is
allowed in the working
area of the machine!
Baling (full bale)
8 The bale light will ash
when the bale is ready and
can be removed.
9 Open the upper door and
pull the straps over the bale
and through the slots in the
lower door.
10 Cut the straps with the knife.
11 Place the strap ends that
are not to be tied inside the
chamber.
12 Close the upper door.
(If the machine is set to
“AUTO” the press plate will
lower automatically and
stop UNDER PRESSURE
against the bale in its lower
position, and step 13 will be
skipped.)
13 Lower the press plate using
the down arrow. The press
plate will automatically
stop in its down position
and keep the bale UNDER
PRESSURE.
14 Tie the straps.
15 Raise the press plate back
up using the up arrow.
16 Open the doors and remove
the bale using the bale cart.
