2015-08-10. Errors and omissions excepted.
3115
1000002-00
380 kg
~950 mm
~1993 mm
1018
(490 3115-00)

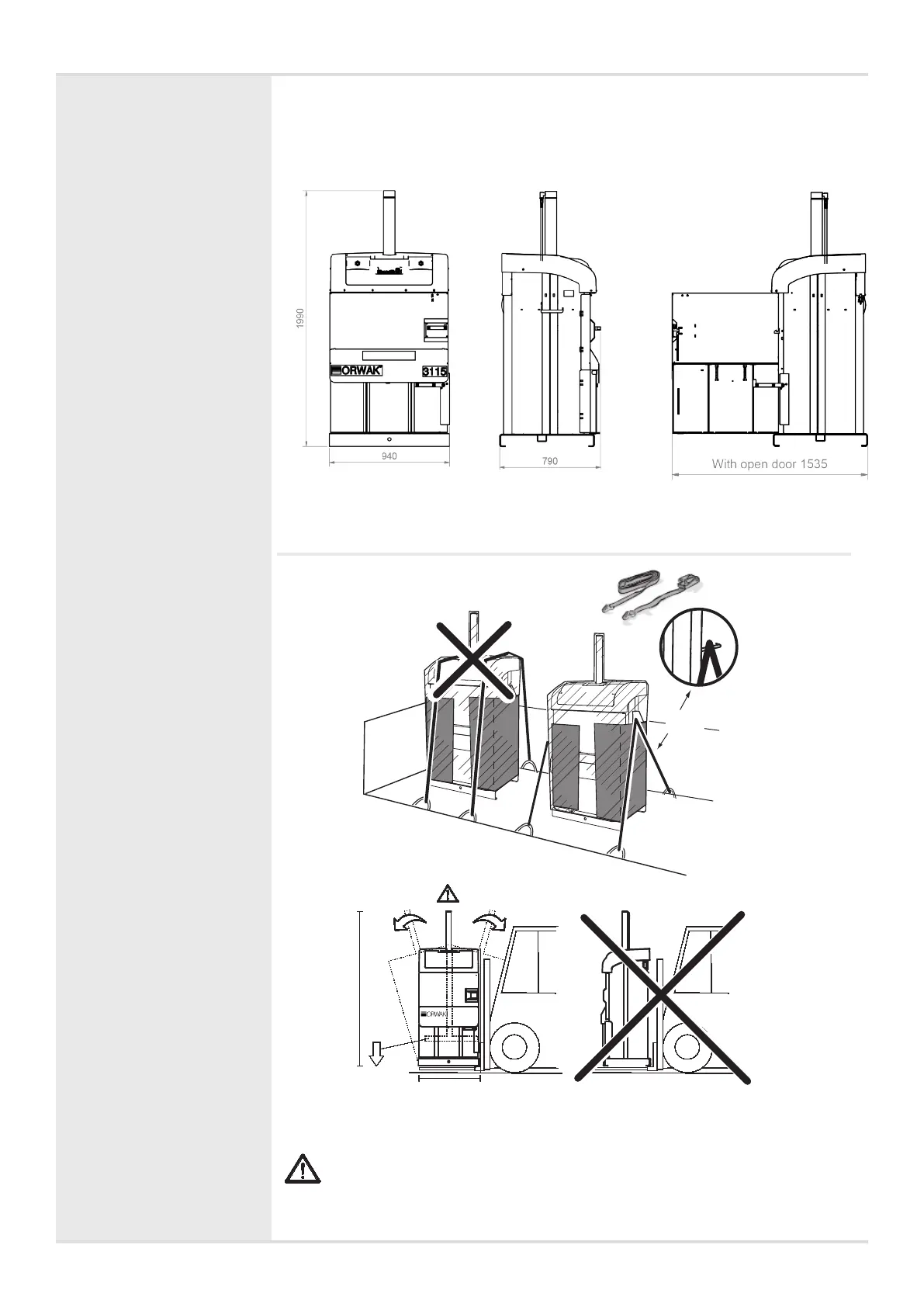

DIMENSIONAL DIAGRAM
TECHNICAL
SPECIFICATIONS
TRANSPORT
English
GENERAL DATA
Total weight: 380 kg
Transport height: 1,990 mm
Dimensions:
Height: 1,990 mm
Width: 940 mm
Depth: 790 mm
Depth with open
door: 1,535 mm
Recommended space for machine
in operation (working area):
Height: 2,000 mm
Width: 2,140 mm
Depth: 2,135 mm
Loading aperture:
Height: 460 mm
Width: 800 mm
Bale size:
Height: approx. 600 mm
Depth: 600 mm
Width: 800 mm
Weight (paper): up to 60 kg
Weight (plastic): up to 85 kg
Noise level:
< 62.4 (± 1.0) dB (A) (ISO 11200 &
11202)
Paint: Two-part paint and powder
coat with phosphatising as base.
Colours:
Orange RAL 2001
Grey RAL 7032
ELECTRICAL DATA
Operating power: 230V, 50/60 Hz
Operating voltage: 24V
Electric motor: 1.1 kW
Fuse rating: 10 A
Protection class: IP 55
HYDRAULIC DATA:
Working pressure (paper): 120 bar
Working pressure
(plastic): 80 bar
Overload pressure: 140 bar
Press force (paper): 6 tons
Press force (plastic): 4 tons
Surface pressure
(paper): 1.36 kg/cm
2
Surface pressure
(plastic): 0.9 kg/cm
2
Cycle time, total: 33 s.
Cylinder stroke length: 640 mm
Oil volume: 7,2 litres
Recommended oil:
+5°C to +60°C
ISO VG 32-68, Mineral oil
Below +5°C
A special oil or heater should be used
at lower temperatures.
The machine has a high centre of gravity. The press plate must be fully lowered
when the machine is moved.
Manual machine (MAN): Close the shutter. Press ‘Down arrow’ on the control panel.
Automatic machine (AUTO): Press to set to manual mode (MAN) on the control panel. Close
the shutter. Press ‘Down arrow’
