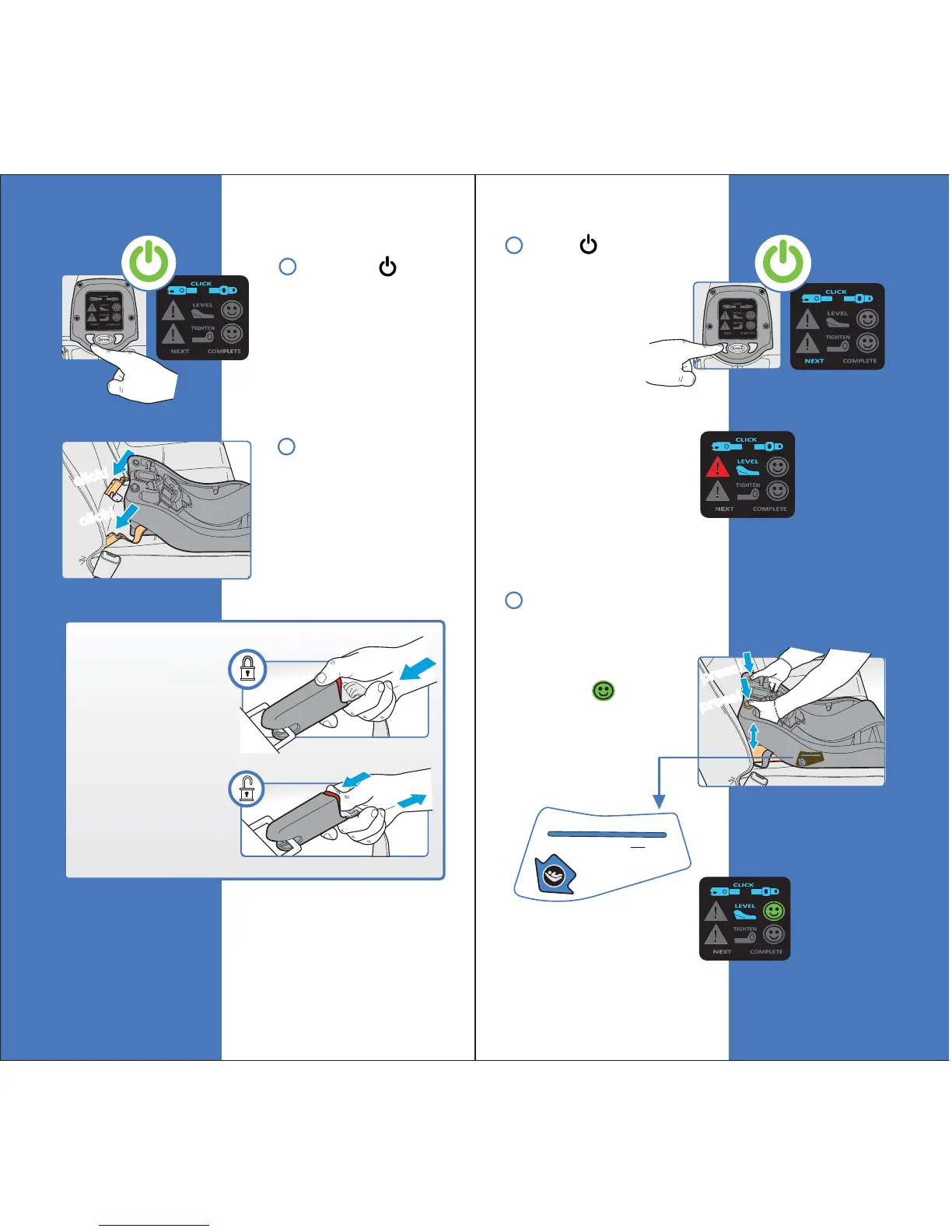

Press on the
Control Panel once
you’ve attached the
LATCH connectors to
the vehicle anchorage
bars.
The word “Level” will
light up, indicating that
you need to adjust the
base angle.
Press the Recline
Adjustment Buttons on
both sides of the
Control Panel while
lifting or lowering the
base until a appears.
Ideally the “level to
ground” line on the side
of the base should be
level to the ground.
Press the
button on the Control
Panel. The word
“Click” will light up.
Attach the LATCH
connectors to the
vehicle anchorage bars
located in the seat
bight (crease of the
vehicle seat).
31
Base Installation
30
Base Installation
press!press!
CARRIER IS INS
T
ALLED IN
VEHICLE
WITH
THE BASE.
LATCH
STORAGE
LINE MUST BE LEV
EL
WITH GROUND
WHEN
21110-L22
CARRIER IS INSTALLED IN VEHICLE WITH THE BASE.
LATCH
STORAGE
LINE MUST BE LEVEL WITH GROUND WHEN
21110-L22
press!press!
click! click!
NEXT
NEXT
The connection is
secure when a click
is heard. Check that
the LATCH webbing
is not twisted.
(To release, press
the red button on
the connector and
pull off the vehicle
anchor bar.)
push!
push!
click!
pull!
press!
NEXT NEXT
3
4
5
6
click! click!
