6

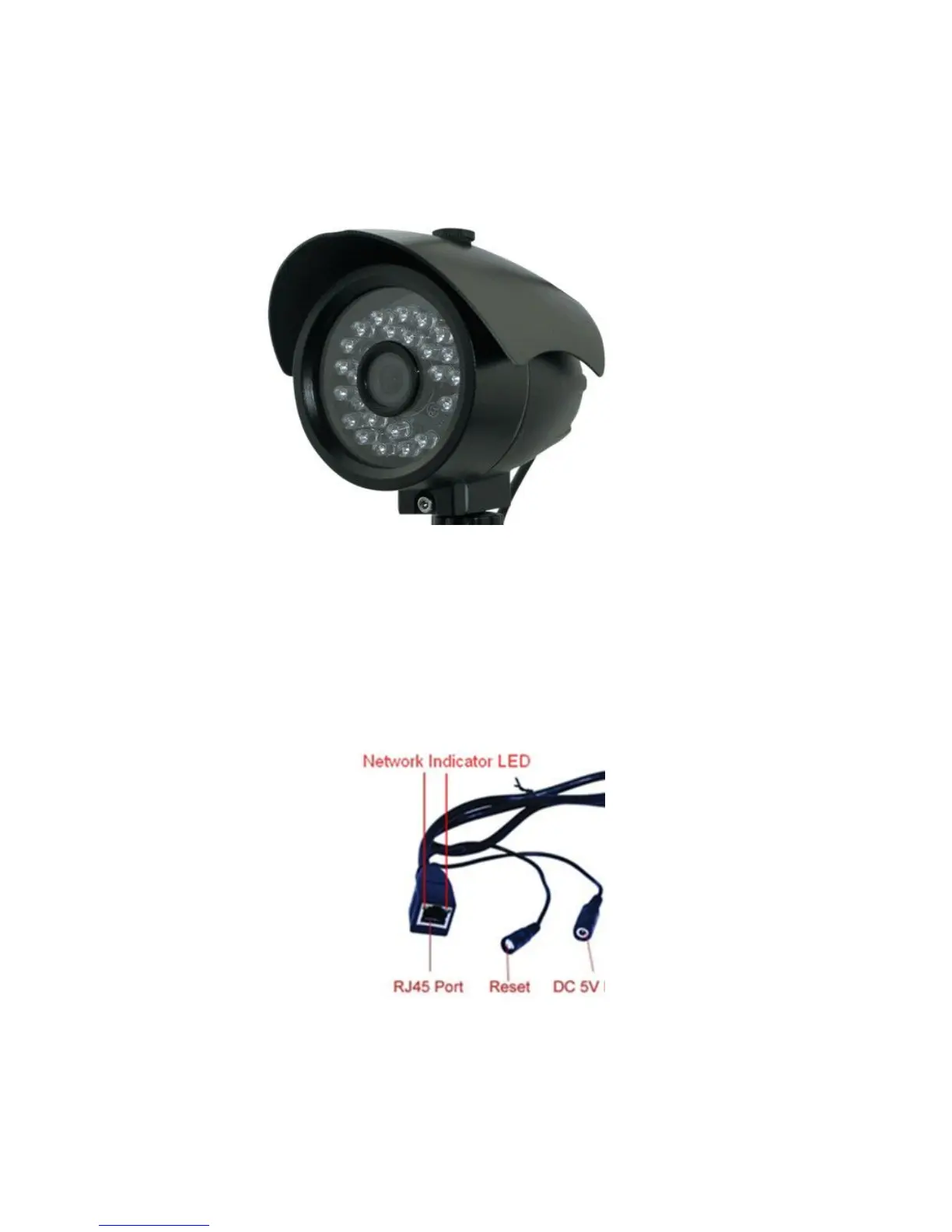

Figure 1.1
Light Sensitive Hole: For light sensitive photocell.
Infrared LEDs: For night Vision.
LENS: CMOS sensor with fixed focus lens. (3.6mm).
Sliding Shell: For protection from sun and waterproofing.
Figure 1.2
Network Indicator LED: The green LED is on when connected to the network, the yellow LED
