GDM-5010PT
6-2

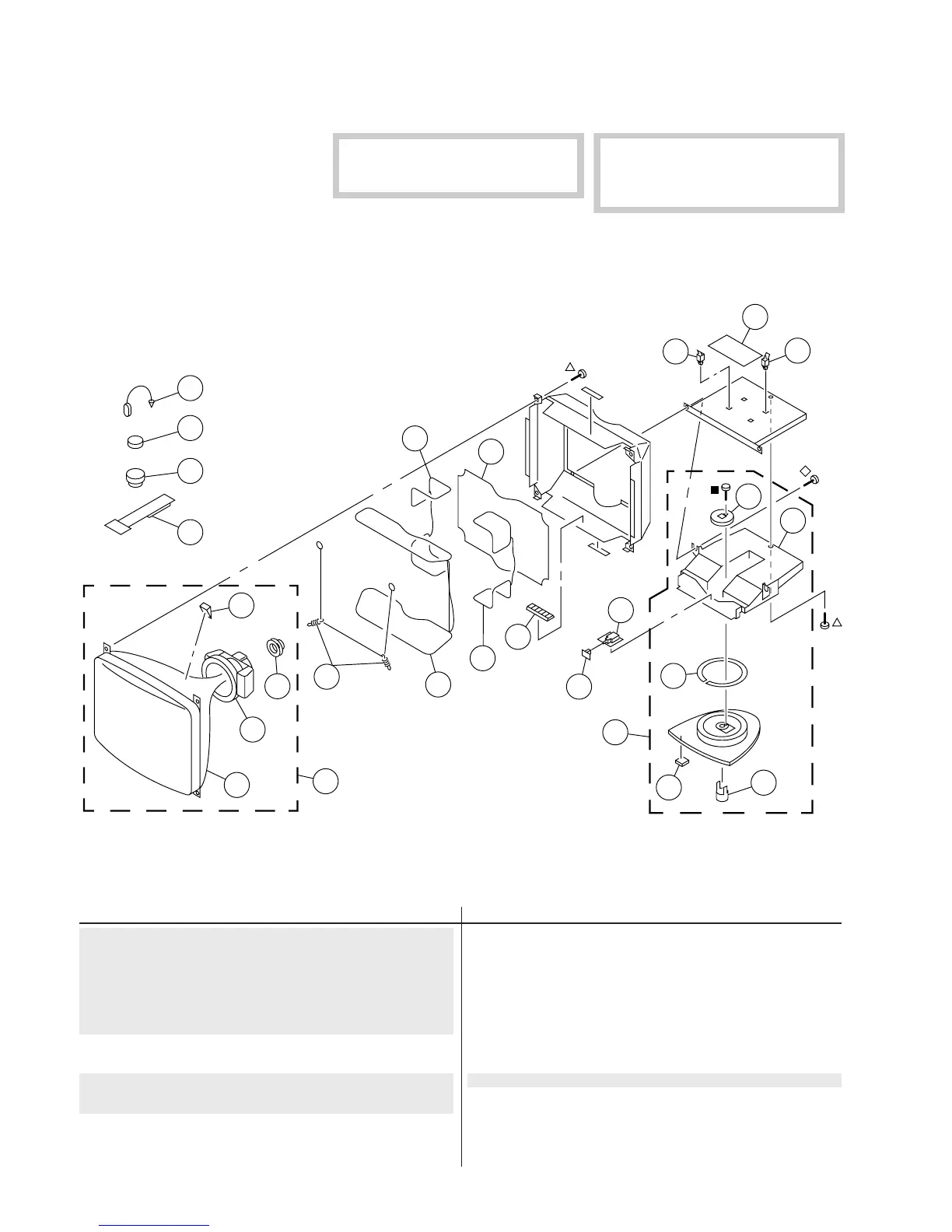

6-2. PICTURE TUBE
p 7-685-663-71 +BVTP 4X16
¢ 7-685-881-09 +BVTT 4X8
7-685-883-01 +BVTT 4X12
π
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
63 * 8-933-297-00 L BOARD, COMPLETE
64 * 8-933-279-00 J BOARD, COMPLETE
65 * 4-394-972-21 CAP, POWER
66 * X-4035-331-1 STAND ASSY 67-71
67 4-061-396-01 STOPPER (A)
68 * 4-063-082-01 COVER, BOTTOM
69 4-060-339-01 RING, TILT SWIVEL
70 4-041-621-02 STOPPER (B)
71 * 4-063-071-01 FOOT
72 ¡ 1-452-932-11 NECK ASSEMBLY
73 4-308-870-00 CLIP, LEAD WIRE
74 1-452-032-00 MAGNET, DISK; 10mmφ
75 1-452-094-00 MAGNET, ROTATABLE DISK; 15mmφ
76 4-059-493-01 PERMALLOY (90), CONV. CORRECT
51 ¡ 8-738-791-81 ITC ASSY (21SRG-R1) 52-54, 72
[except SH model]
51 ¡ 8-738-792-81 ITC ASSY (21SRG-RS1) 52-54, 72
[SH model]
52 ¡ 8-738-796-05 PICTURE TUBE (21SRG)
[except SH model]
52 ¡ 8-738-799-05 PICTURE TUBE (21SRG) [SH model]
53 ¡ 8-451-493-31 DEFLECTION YOKE (Y21SRL-M3)
54 4-050-492-01 SPACER, DY
55 * 4-047-316-01 SPRING, TENSION
56 ¡ 1-416-437-11 COIL, DEMAGNETIC
57 ¡ 1-416-140-21 COIL, LANDING CORRECTION
58 ¡ 1-416-438-21 COIL, LANDING CORRECTION
60 4-062-670-02 SPACER, PICTURE TUBE
61 * 4-321-929-00 HOLDER, PRINTED CIRCUIT BOARD
62 * 3-703-141-00 HOLDER, PRINTED CIRCUIT BOARD
Les composants identifiés per un tramé
et une marque
¡
sont critiques pour la
sécurité. Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by shading
and mark
¡ are critical for safety.
Replace only with part number specified.
60
70
51
61
71
52
62
72
53
63
73
54
64
74
55
65
75
56
66
67
58
68
69
57
57
76
To Next Page
