GDM-5510 (E) 5-3
REF.NO. PART NO. DESCRIPTION REMARK
74
51
52
57
69
54
55
53
56
58
62
68
72
71
67
66
64
60
59
73
61
63
65
75
76
77
70
78

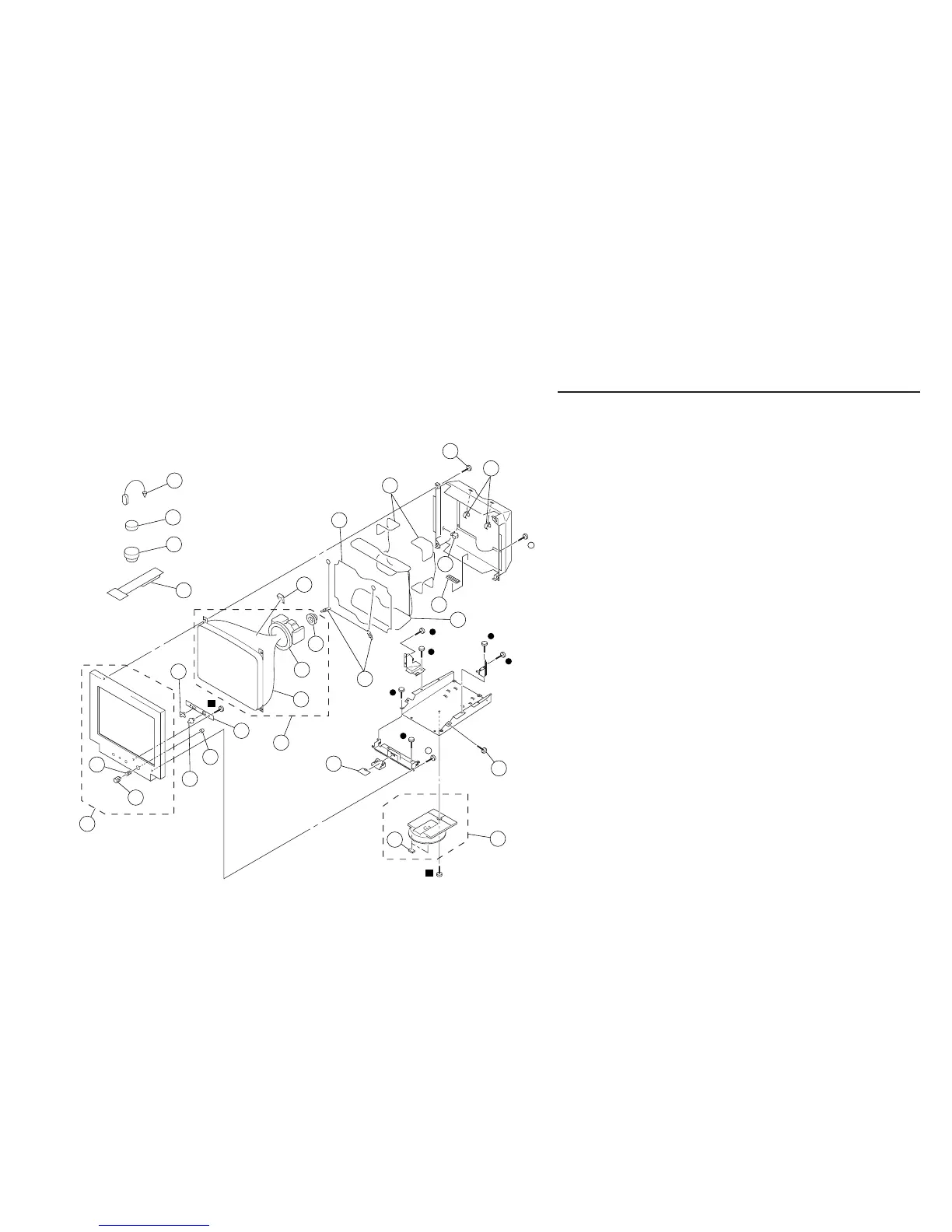

5-2. PICTURE TUBE
z 7-685-881-09 +BVTT 4X8
x 7-685-647-79 +BVTP 3X10
a 7-685-663-71 +BVTP 4X16
51 X-4039-584-1 BEZEL ASSY [Japan made-set] 52
51 X-4039-757-1 BEZEL ASSY [Mexico made-set] 52
52 4-042-593-01 SPRING COMPRESSION
53 4-085-628-01 SELECTOR, INPUT
54 4-085-632-01 BUTTON, POWER
55 * A-1377-069-A H6 BOARD, COMPLETE [Japan made-set]
55 * A-1400-212-A H6 BOARD, COMPLETE
[Mexico made-set]
56 0 8-734-053-06 ITC ASSY (21TKD-R3) [NH] 59, 60, 73
56 0 8-734-054-06 ITC ASSY (21TKD-RS3) [SH] 59, 60, 73
57 4-085-630-01 JOY STICK
58 2-162-100-21 SPACER, DY
59 0 8-451-519-11 DEFLECTION YOKE Y21TKN
60 0 1-452-923-51 NECK ASSEMBLY
61 * 4-047-316-01 SPRING, EXTENSION
62 0 1-419-130-21 COIL, LANDING CORRECTION
63 0 1-419-129-21 COIL, LANDING CORRECTION
64 4-365-808-01 SCREW (5), SELF TAPPING
65 4-041-021-02 HOLDER, DEGAUSE COIL
66 4-071-175-01 HOLDER, DGC
67 4-062-670-01 SPACER, PICTURE TUBE
68 0 1-419-838-11 COIL, DEGAUSSING
69 4-085-629-01 CAP, LED
70 X-4039-585-1 BASE ASSY, STAND 71
71 * 4-061-996-01 CUSHION
72 0 8-610-158-71 SENSOR, MAGNETIC MIU-221D
73 0 8-738-860-05 PICTURE TUBE 21TKD
(OCEAN COAT) [NH]
73 0 8-738-861-05 PICTURE TUBE 21TKD
(OCEAN COAT SOUTH) [SH]
74 4-308-870-00 CLIP, LEAD WIRE
75 1-452-032-00 MAGNET, DISK; 10mmφ
76 1-452-094-00 MAGNET, ROTATABLE DISK; 15mmφ
77 4-051-736-21 PIECE A (90), CORRECT
78 4-389-025-01 SCREW (M4) (EXT TOOTH WASHER)
