Chapter 2 Disk Drive, Air Management Sled, and Tabletop Cover FRUs 2-13

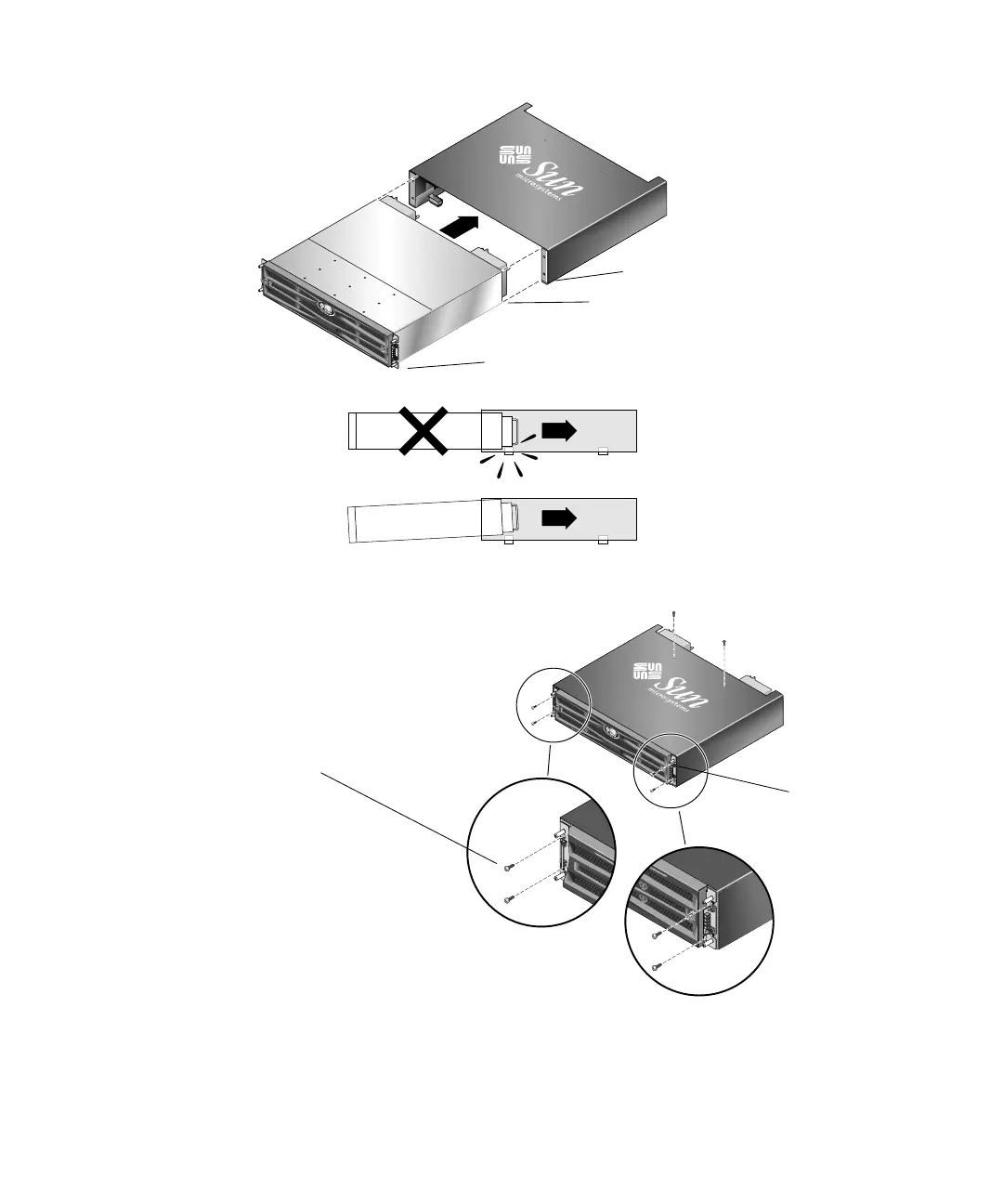

FIGURE 2-4 Sliding the Chassis Into the Tabletop Cover

FIGURE 2-5 Attaching the Chassis Ears to the Tabletop Cover

9. Put the caps back onto the ears:

Back of RAID product

Front of tabletop cover

Front of RAID product

Screws to attach the cover to the chassis ears

Chassis ear LEDs
