6-18 Sun StorEdge 3000 Family FRU Installation Guide • May 2004

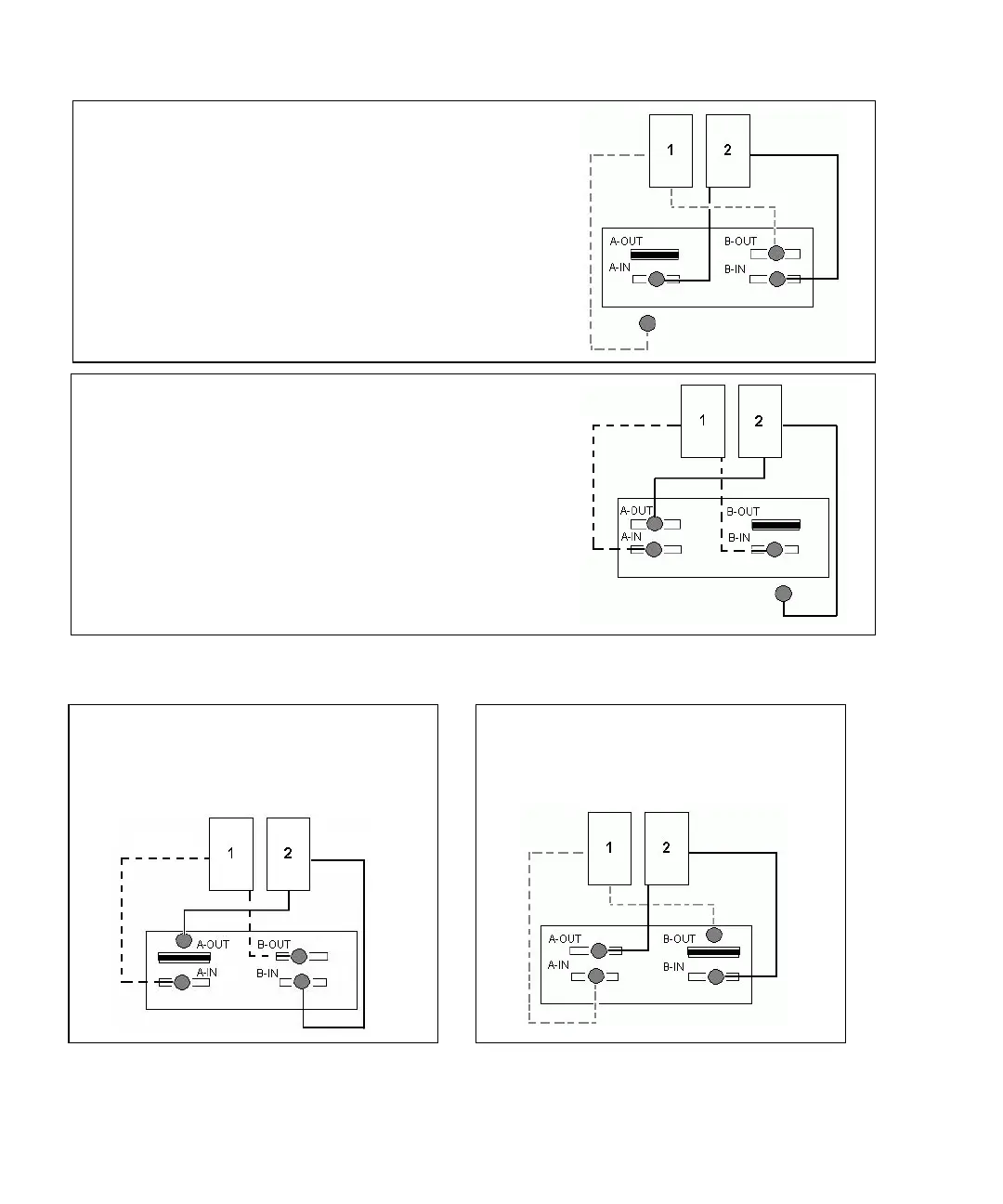

FIGURE 6-5 Removing a Single Cable From an IN Port in a Two-Host Configuration
FIGURE 6-6 Removing a Single Cable From an OUT Port in a Two-Host Configuration
Scenario #1
Disconnect 1 cable from A-IN port:
1. Disconnect Host 1 cable from port A-IN.
2. Unplug cable from port A-OUT and move it to port A-IN.
3. Install a terminator in port A-OUT.
Scenario #2
Disconnect 1 cable from B-IN port:
1. Disconnect Host 1 cable from port B-IN.
2. Unplug cable from port B-OUT and move it to port B-IN.
3. Install a terminator in port B-OUT.
Scenario #3
Disconnect 1 cable from A-OUT port:
1. Disconnect Host 1 cable from port A-OUT.
2. Install a terminator in port A-OUT.
Scenario #4
Disconnect 1 cable from B-OUT port:
1. Disconnect Host 1 cable from port B-OUT.
2. Install a terminator in port B-OUT.
