7
4. Remove the PCI card from slot 2 (FIGURE 6):
a. Using a number 2 Phillips screwdriver, remove the screw securing the bracket
tab adapter to the chassis.
b. Remove the bracket tab adapter.
c. At the two corners of the card, pull the card from the riser board connector.
d. Move the PCI card so that the card backplate clears the chassis back panel slot.
e. Remove the PCI card.
f. Place the PCI card on an antistatic mat.

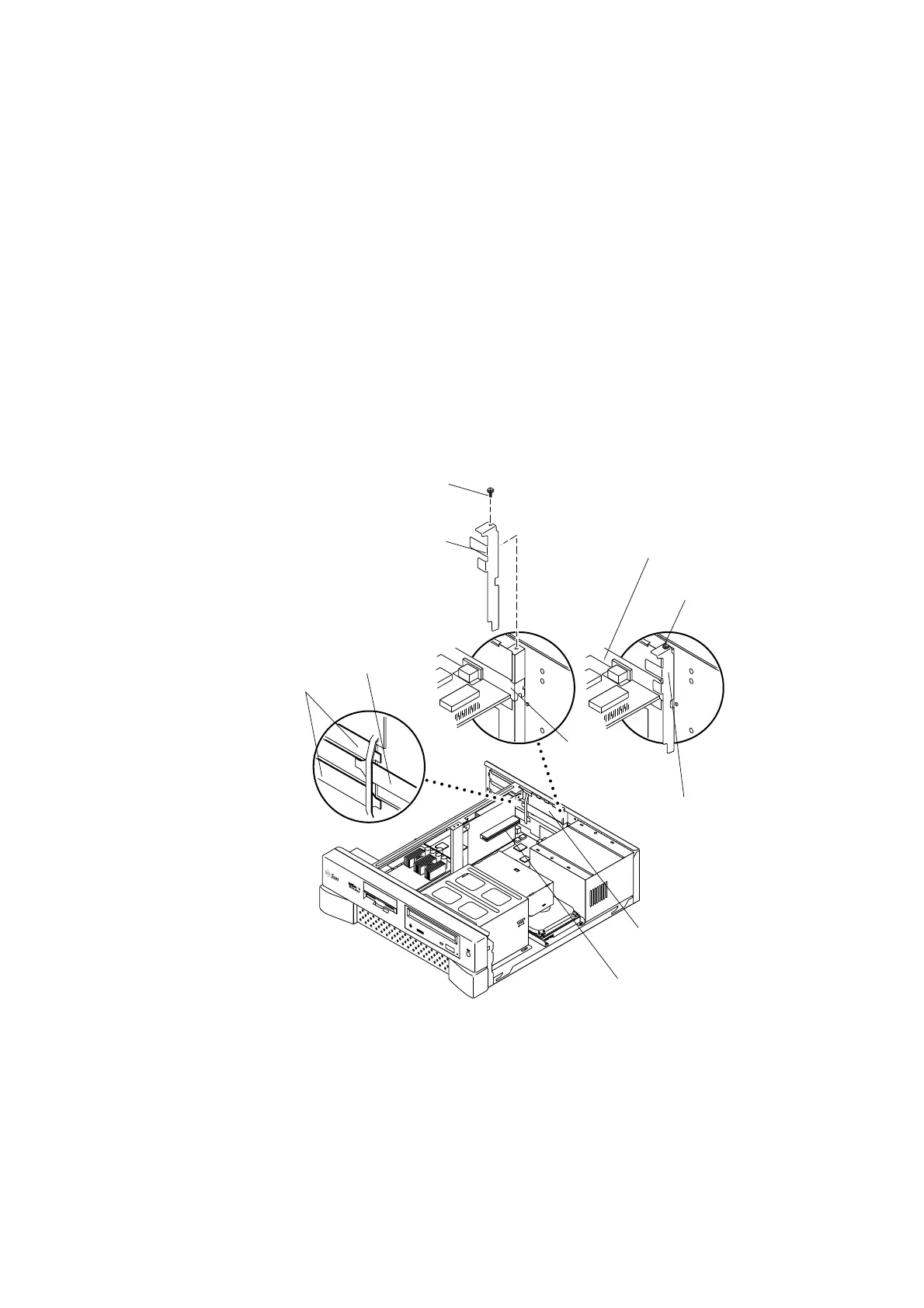

FIGURE 6 Removing and Replacing the PCI Card from PCI Slot 2 (Ultra 5)
PCI card
Screw
Riser board
PCI connector 2
PCI card
Bracket tab adapter
Screw
backplate end
Raised
retaining
tab
Slots 1
and 3
Bracket
tab adapter
Chassis back
panel slot
