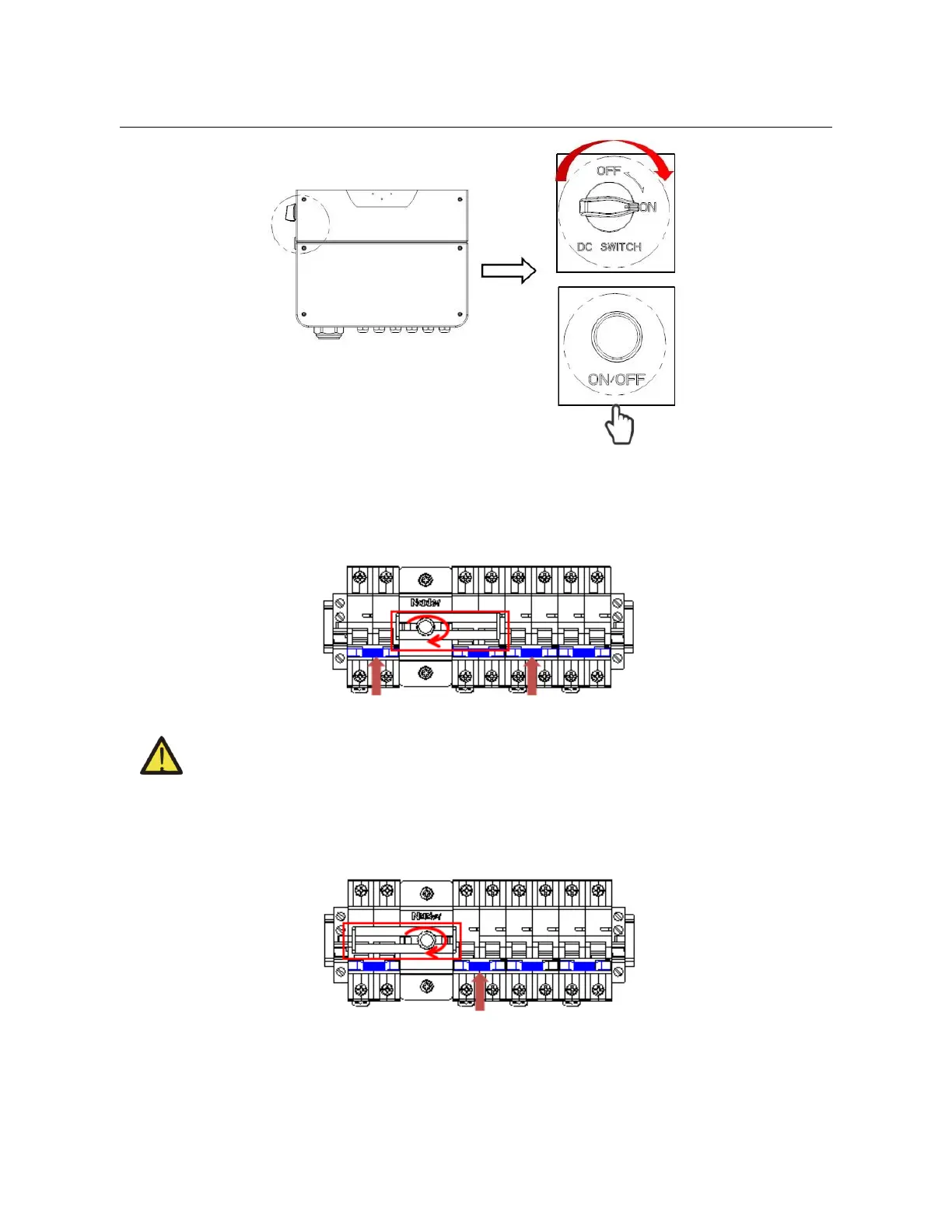

Close the "GRID" circuit breaker
(5) Close the "LOAD" circuit breaker. Push the interlock device toward the Bypass switch and tighten it clockwise;
then push the Load switch handle upwards.
y
The "Bypass" switch is only used for inverter maintenance, and this switch is not used by default.
y
Before closing the "Bypass" switch, the "Load" switch must be turned off
y
Close the "Bypass" switch, and the load is powered by grid.
When closing the "Bypss" switch, first loosen the interlocking device anticlockwise, then push it towards
the Load switch and tighten in the clockwise direction; finally push the Bypass switch handle upward.
