3.3 Installation
3.3.1 Installation Preparation
The cabinet is installed against the wall and the height of the installation base is greater than 200mm; keep both
sides well ventilated, and the minimum gap between the two sides and the top should not be less than Cabinet 3-1.

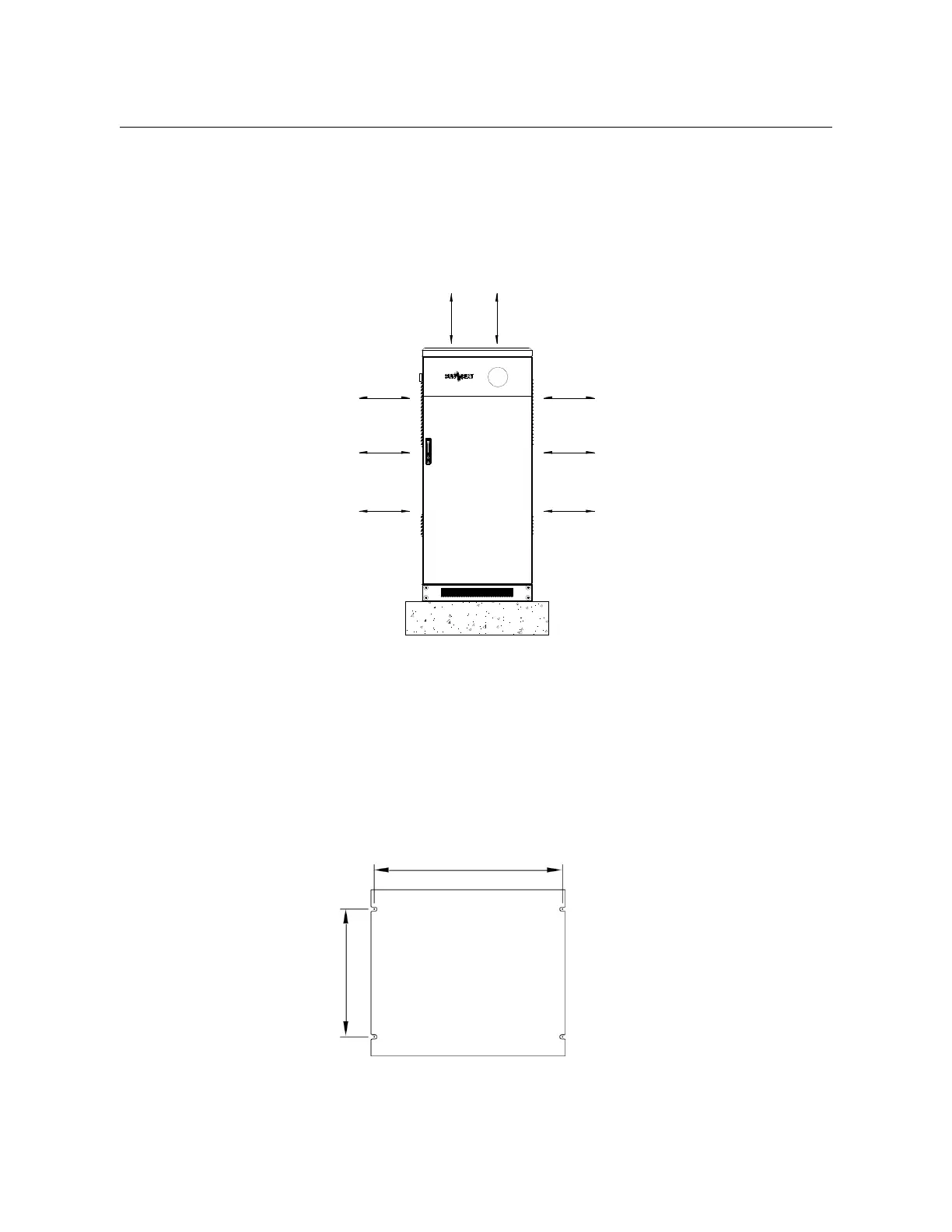

Picture 3-1 Installation diagram
3.3.2 Installation Guide
(1) Floor-mounted installation of the cabinet, use expansion bolts to fix the cabinet on the base, the base bearing
>1500KG.
The hole size of the base is shown in Picture 3-2:
629
Picture 3-2 Dimensions of the openings in the cabinet base
