4.3.3 Solar Power Curve

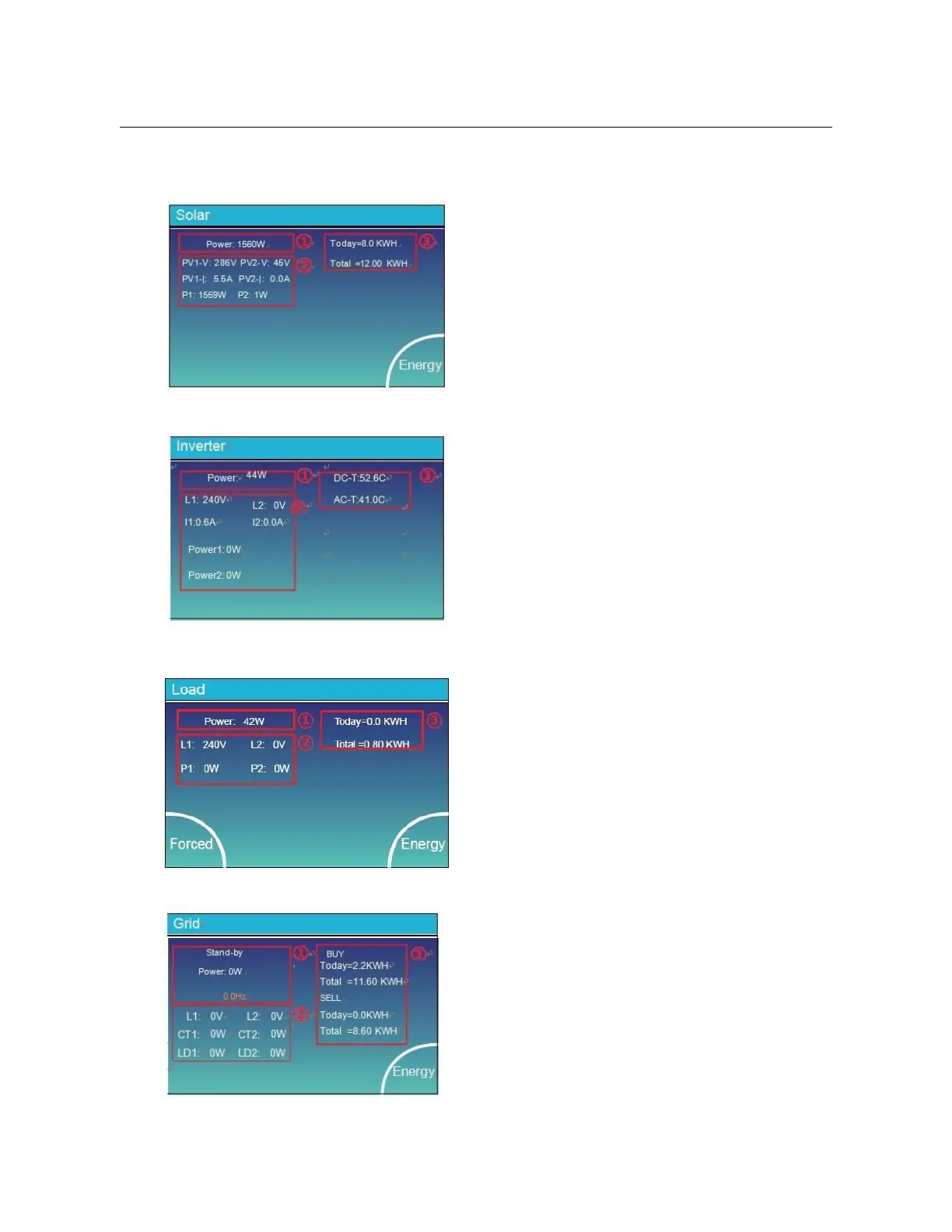

This is Solar Panel detail page.
ķ Solar Panel Generation.
ĸ Voltage, Current, Power for each MPPT.
Ĺ Solar Panel energy for Day and Total.
3UHVVWKHŗ(QHUJ\ŗEXWWRQZLOOHQWHULQWRWKHSRZHU
curve page.
This is Inverter detail page.
ķInverter Generation.
ĸ Voltage, Current, Power for each Phase.
Ĺ DC-T: mean DC-DC temperature,
AC-T: mean Heat-sink temperature.
This is Back-up Load detail page.
ķ Back-up Power.
ĸ Voltage, Power for each Phase.
Ĺ Back-up consumption for Day and Total.
3UHVVWKHŗ(QHUJ\ŗEXWWRQZLOOHQWHULQWRWKHSRZHU
curve page.
3UHVVWKHŗ)RUFHGŗEXWWRQZLOOIRUFHGRSHQWKHVPDUW-
load (While GEN PORT utilized as Smart-load output).
This is Grid detail page.
ķ Status, Power, Frequency.
ĸL1&L2:Voltage for each Phase
CT1&CT2: External Current Sensor Power
LD1&LD2: Internal Current Sensor Power.
Ĺ BUY: Energy from Grid to Inverter,
SELL: Energy from Inverter to Load.
3UHVVWKHŗ(QHUJ\ŗEXWWRQZLOOHQWHULQWRWKHSRZHU
curve page.
