-3-

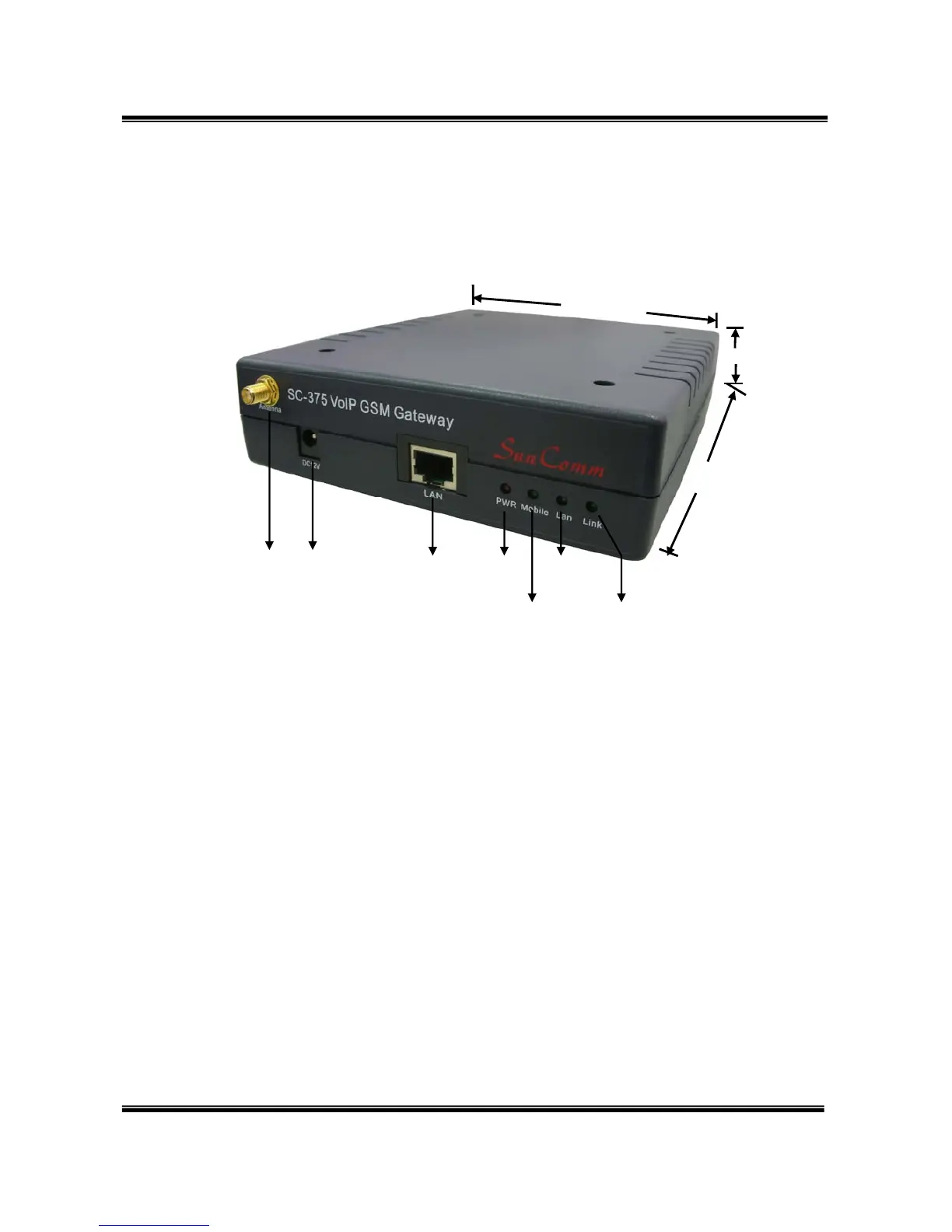

4. Dimension and Panel description
4.1 Antenna：Antenna connector.
4.2 DC 12V：Power socket.
4.3 LAN: Standard RJ-45 socket, connecting to Hub circuit.
4.4 PWR: Power indicator light, red light. Light is on when system’s
power supply is normal.
4.5 MOBILE: GSM indicator light, green light. Light flashes when
GSM status is normal; light turns on constantly when GSM is
called.
4.6 LAN: LAN indicator light, green light. Light flashes when Lan is
called; light turns off when GSM answers.
4.7 LINK: Link indicator light, green light. Light is on when network
is connected correctly.
(4.1) (4.2) (4.3) (4.4) (4.6)
(4.5) (4.7)
14.5cm
