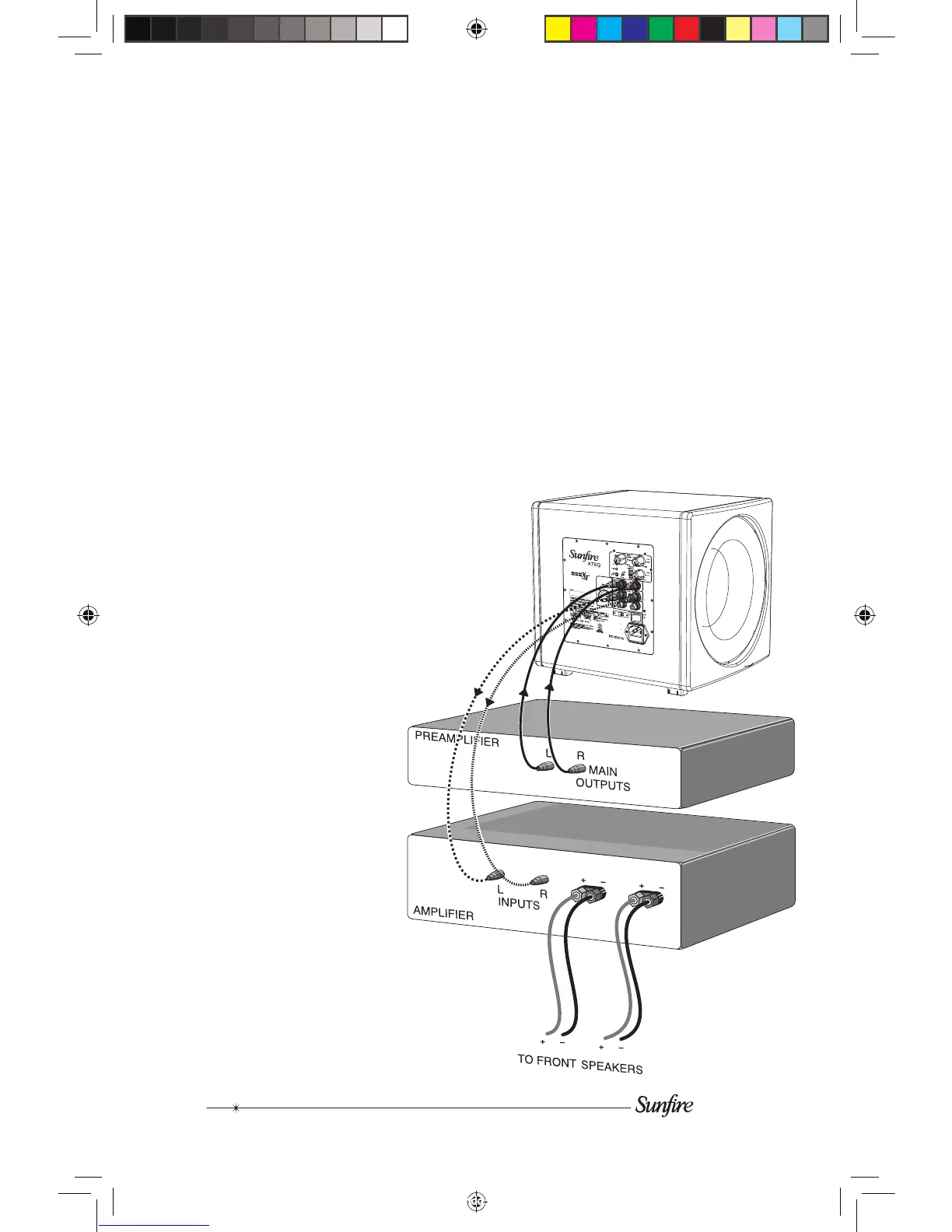

If you are using a preamplier that does not have a sub/LFE output, you can send its
left and right front output into the subwoofer’s line-level inputs and then connect the
subwoofer’s line-level outputs to the inputs of your amplier.
The subwoofer will play the low frequencies and your amplier and front speakers
will play the frequency range of the subwoofer's outputs.
The subwoofer's output switch lets you select BYPASS or 85 Hz.
In the 85 Hz position, the signals coming out of the subwoofer’s outputs are a copy of the
signals going into the subwoofer, except that the low bass is ltered out. This uses the
subwoofer’s passive crossover network, rather than the active network and controls.
This is an excellent method if your front speakers are small satellites or mini-monitors,
and/or your power amplier is of limited power, such as a tube amp.
If the switch is set to BYPASS, then the amplier and speakers receive the full frequency
range. This is a good position if your speakers are capable of good low frequency
performance.
Using the Line-Level Outputs
