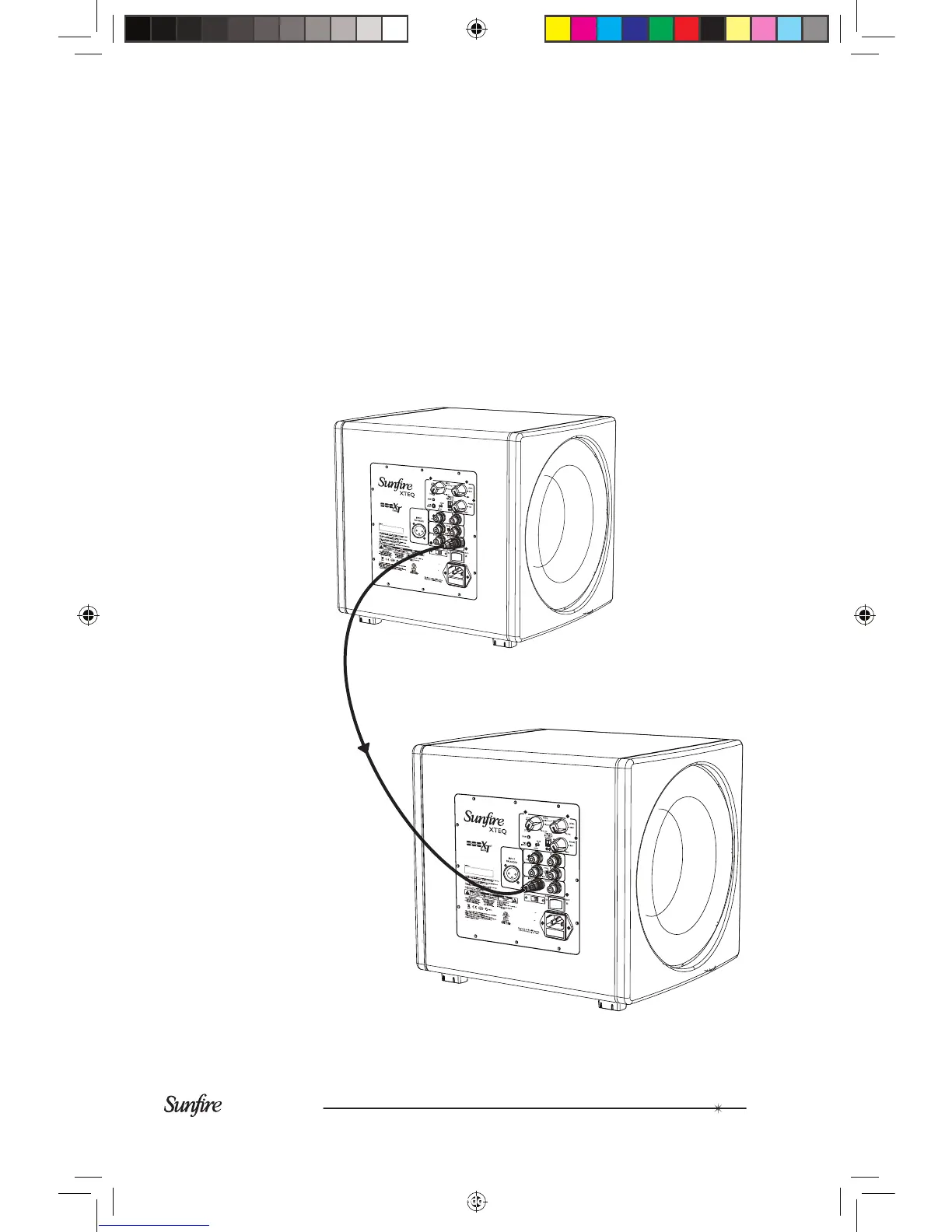

The SLAVE output from one XTEQ subwoofer can be connected to the SLAVE input of
a second XTEQ subwoofer. The second subwoofer will then receive the optimum audio
signals from the rst.
There is no need to adjust the controls of the second subwoofer, as the audio is controlled
by the controls and EQ setting of the rst. The second subwoofer does not require any
connections to its line-level inputs.
Before the EQ procedure, make sure that both XTEQ subwoofers are connected together
as shown. The microphone should be connected to the rst subwoofer. The automatic EQ
procedure will take into account the effect of both subwoofers as they play in the room.
