1. Route the Ground wire through the cable entry holes.
2. Then connect the ground wire to the ground copper bar located at the
bottom of the inverter, see Figure 4-8 .
The cross section of the ground conduction is larger than 10mm
2

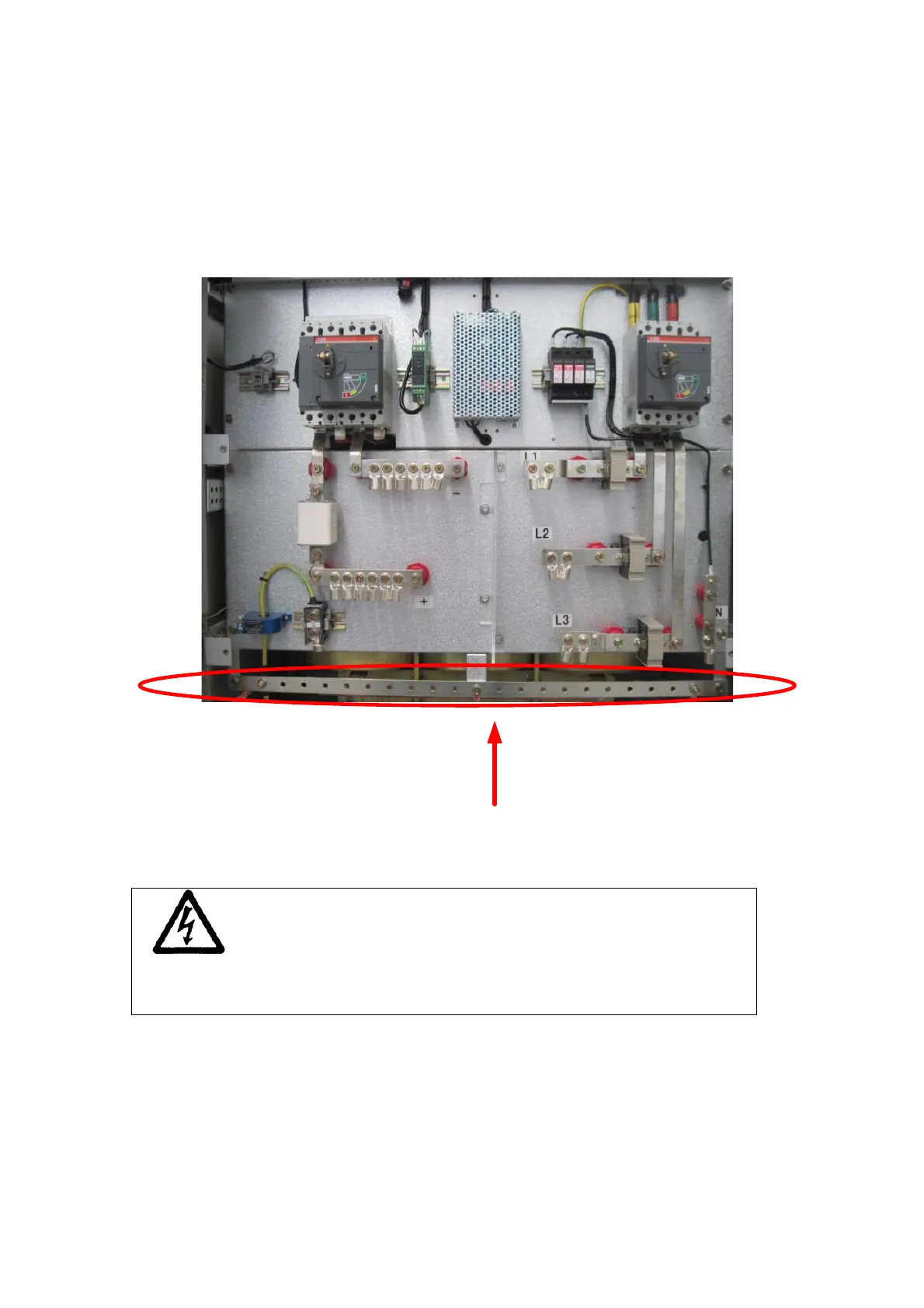

The ground copper bus-bar
Figure 4-8 Ground wire routing
Warning
::
This product can cause a dc current in the external
protective earthing conductor. Where a residual current-operated
protective (RCD) or monitoring (RCM) device is used for protection in
case of direct or indirect contact,
