30
The expansion plug set shown below is recommended for the installation.

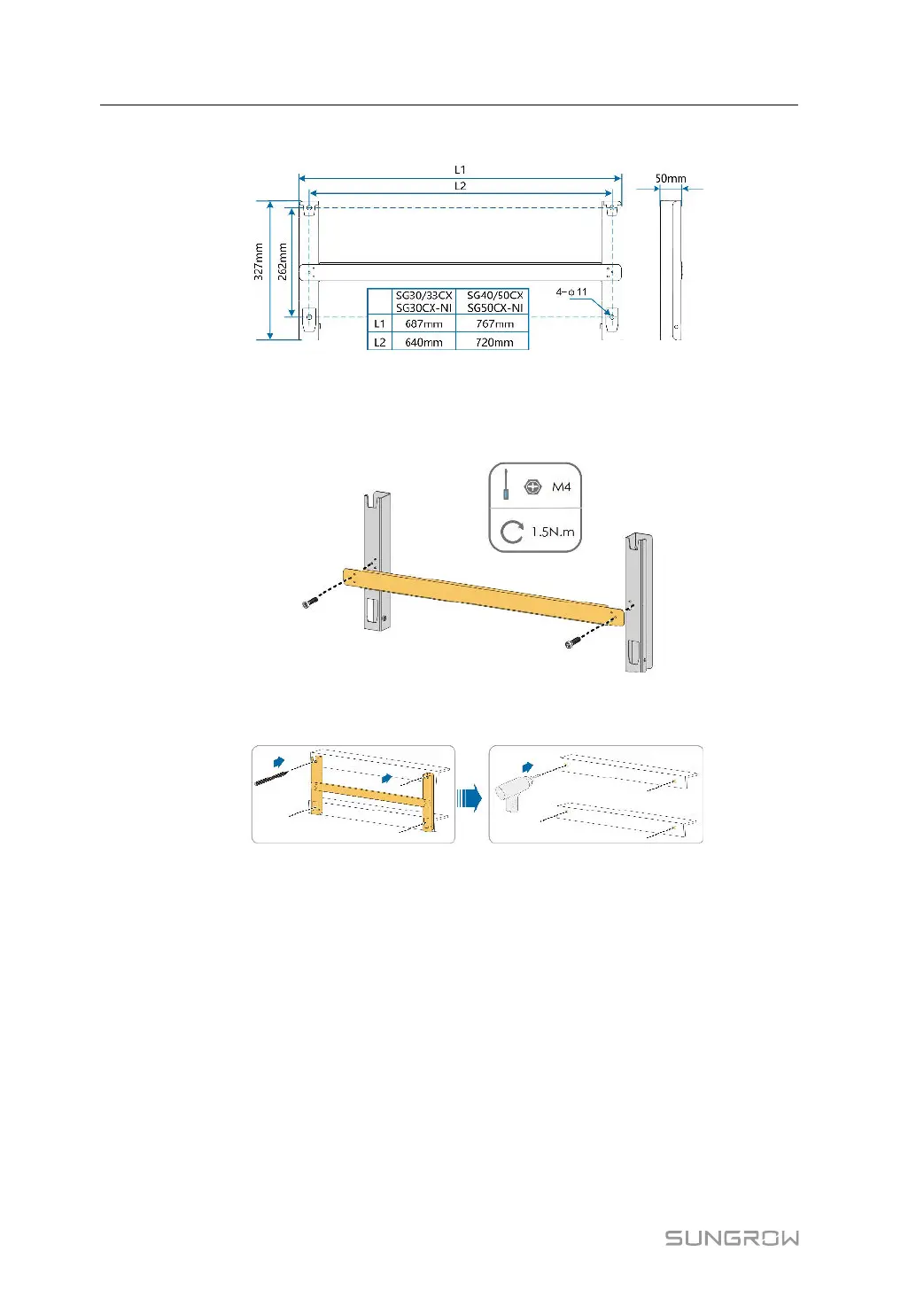

figure 4-1 Dimensions of Mounting-bracket
4.5.1 PV Bracket-Mounted Installation
Step 1 Assemble the mounting-bracket.
Step 2 Level the assembled mounting-bracket by using the level, and mark the positions for drilling
holes on the PV bracket. Drill the holes by using a hammer drill.
4 Mechanical Mounting User Manual
