Sungrow SG36KTL-M User Manual

2 Product Introduction User Manual
8
*Image shown here is for reference only. Actual product you receive may differ.
Item
Name
Description
1 LCD display panel
Inverter operation data viewing and parameters
configuration can be performed via the LCD display
panel.
2 Connection terminals
They are DC input terminals, AC output terminal
and RS485 communication terminal.
3 Second PE Terminals
Second protective earth terminals as specified in EN
50178.
4 Fans
There are four fans to perform controlled forced-air
cooling.
5 Handles
The handles are designed for holding the unit when
transporting, installing or servicing.
6
Air outlet
Exit of hot air during the inverter operation.
7
Mounting ear
It is used for hanging inverter onto the backplate.
8 DC switch
During normal operation it is in “ON” state. It can
shut down the inverter immediately in “OFF”
position.

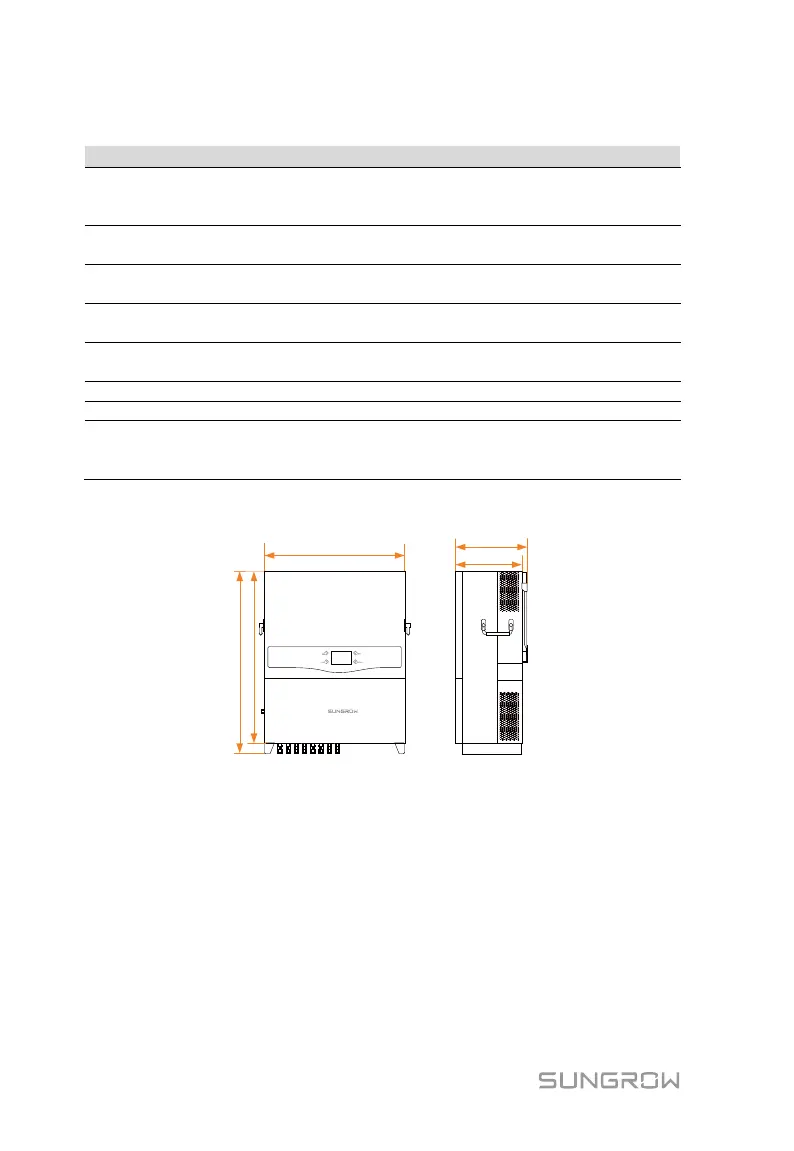

2.2.3 Dimensions of Inverter
267.7
740
525
690
240
Fig. 2-3 Outline Dimensions of Inverter (unit: mm)
2.2.4 LCD Display Panel
As an HMI, LCD display panel comprises LED indicators, buttons and LCD display
screen on the front panel of the inverter.

LEDs indicate the working status of the inverter

The current running information shown on the LCD display

Fault records shown on the LCD display

Inverter configuration by pressing the buttons
