User Manual 10 Operation of LCD Display
63
10.3 Main Screen
Once the inverter commissioning is finished, LCD display will enter the main screen
as shown in Fig. 10-2.
Power
curve
Time
Present
power
Today’s energy
Total energy
Inverter
state
Icon
&active
power limit
kW
h
kW
h
15.6
497600
Run
kWh
kWh
kW
100.0%
P(%)
110
50
0
5 8 11 14 2017 23
t
001
Device
address
P-ac
E-day
E-tot
State
2015/01/31 10:30
33.000

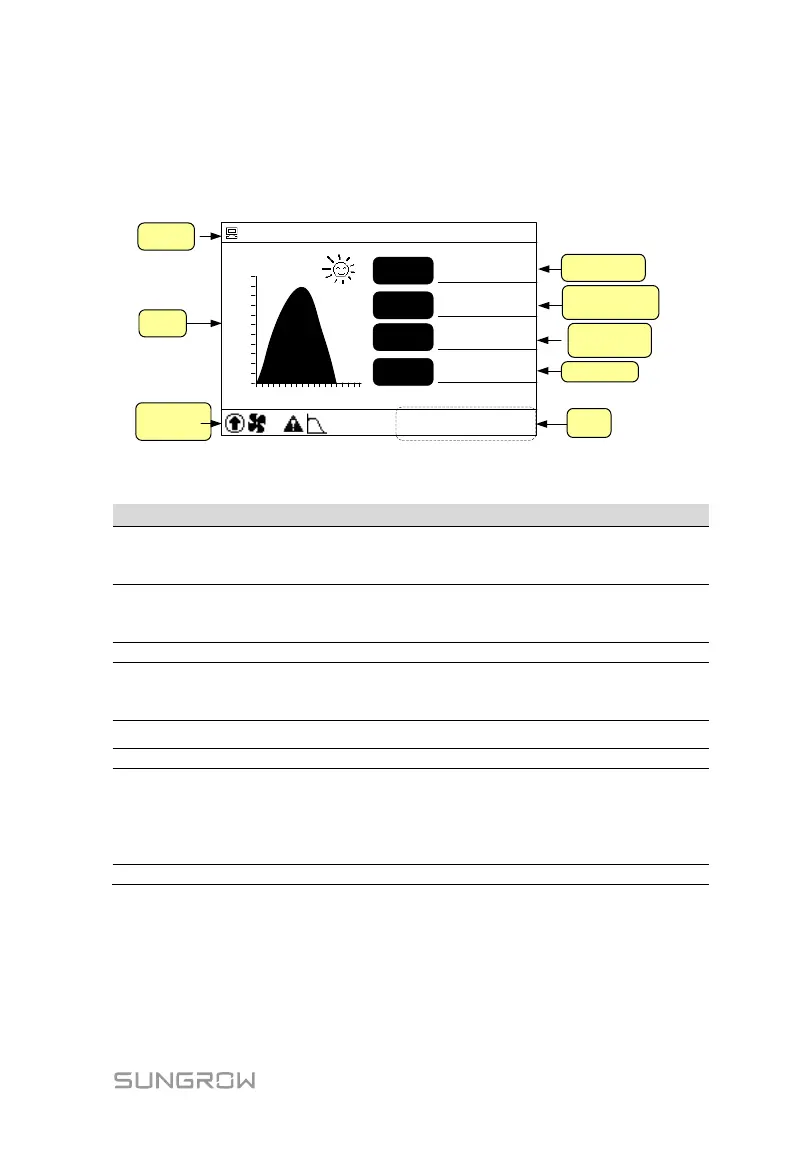

Fig. 10-2 Main screen
Tab. 10-2 Description of the main screen
Run
After being energized, inverter tracks the PV arrays’ maximum power
point (MPP) and converts the DC power into AC power. This is the normal
Standby
Inverter enters Standby mode when DC side input is insufficient. In this
mode inverter will wait within the Standby duration (set by user, refer to
10.10.1 Main Screen of Run-param).
Key-stop
Inverter will stop operation by manual “stop” through LCD menu. In this
way, inverter internal DSP stops. To restart the inverter, manually start
Start…
The inverter is initializing and synchronizing with the grid.
Fault
If a fault occurs, inverter will automatically stop operation, disconnect the
AC relay, and display the fault information on the LCD display with the
“FAULT” indicator on.
Once the fault is removed in recovery time (set by user, refer to 10.10.1
Main Screen of Run-param), inverter will automatically resume running.
Warning information is detected.
If inverter is in “Fault” state, press
or
to view “Current fault” information. To know
the meaning of the fault code, please refer to” 9.1.2 Troubleshooting of Faults in LCD
Screen”.
