Sungrow SG5K-D User Manual

2 Product Description User Manual
6
2.2.2 Appearance
2
3
4
6
71
8
9
5

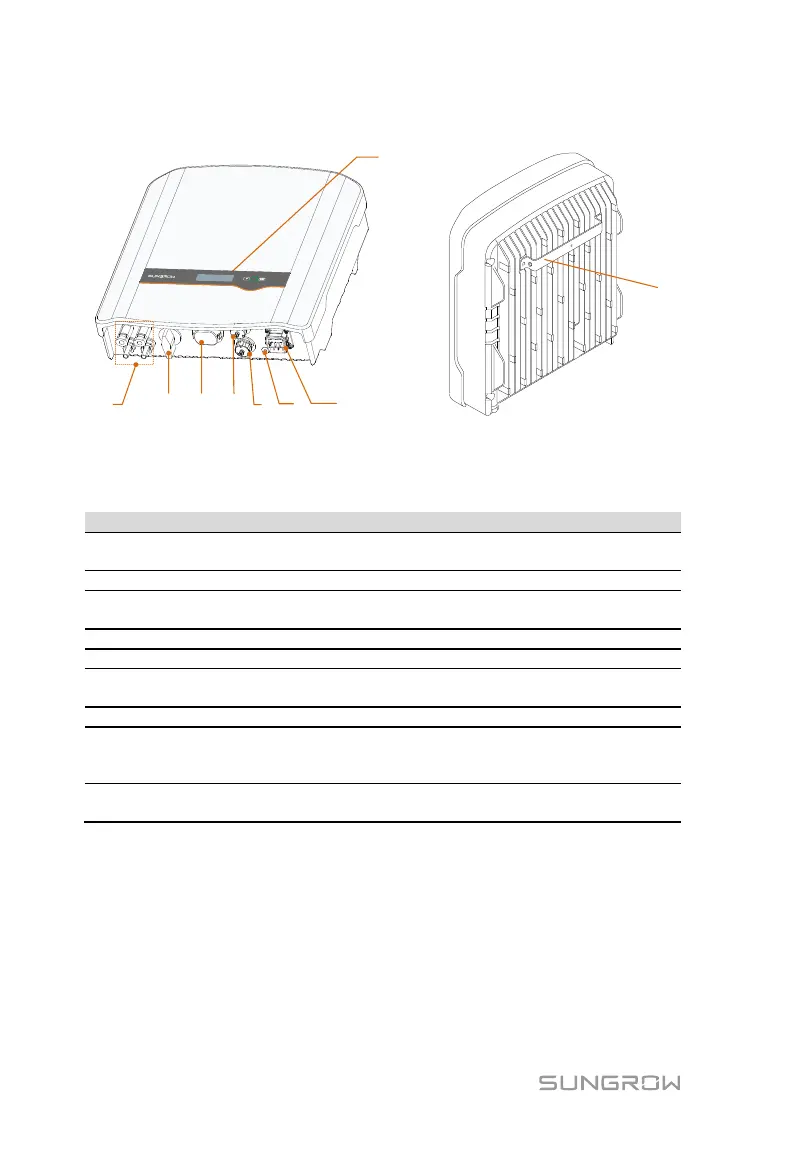

Fig. 2-2 Inverter Appearance (-D series for reference)
* The image shown here is for reference only. The actual product you receive
may differ.
Item
Name
Description
1
PV terminals
Positive and negative DC input connectors.
One or two pairs, depending on inverter model.
2
DC switch
To disconnect the DC current safely.
3
Com. terminal
Can be connected to Wi-Fi or E-Net
communication module.
4
DRM terminal
Reserved.
5
Meter terminal
For Energy Meter.
6
Additional grounding
terminal
For reliable grounding.
7
AC terminal
To feed power into the utility grid.
8
LCD panel
The display and two buttons can be used to
access current operating data or change inverter
settings.
9
Mounting rack
For mounting the inverter to the wall mounting
bracket.

Sungrow SG5K-D Specifications

General

Rated AC Output Power	5000 W
Max. Efficiency	98.4%
Operating Temperature Range	-25°C to +60°C
Max. DC Power	6000 W
Number of MPPTs	2
Max. AC Power	5500 VA
Rated AC Voltage	230 V
AC Voltage Range	180 V - 280 V
Rated Grid Frequency	50 Hz / 60 Hz
Power Factor at Rated Power	>0.99
THDi	<3%
DC Connection Type	MC4
Protection Degree	IP65
Cooling Method	Natural convection
AC Connection Type	Plug-in terminal
