Multiple inverters cannot share one circuit breaker.
Never connect a load between the inverter and the circuit breaker.
Residual Current Monitoring Device
With an integrated universal current-sensitive residual current monitoring unit
inside, the inverter will disconnect immediately from the mains power once a
fault current with a value exceeding the limit is detected.
However if an external residual current device (RCD) is mandatory, the switch
must be triggered at a residual current of 300 mA or higher.
5.4.2 Assembling the AC Connector

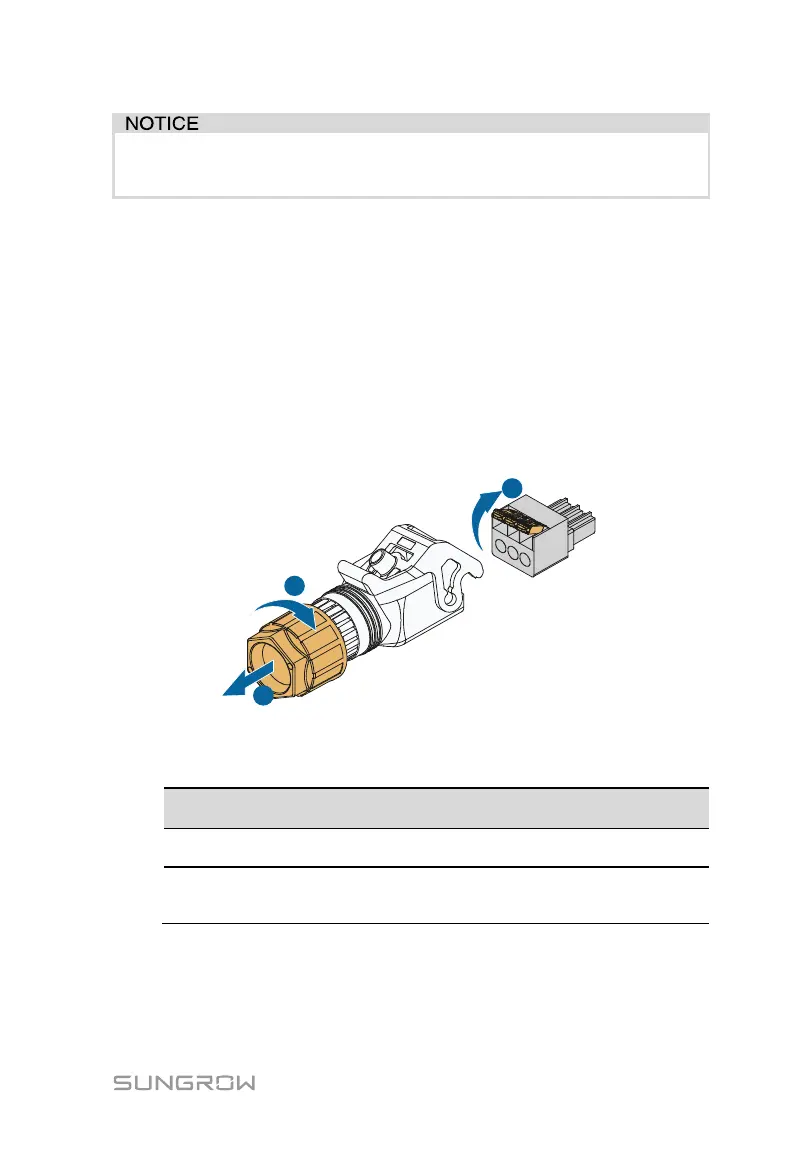

1. Unscrew the cable gland from AC connector and open the clamp on the
terminal block.
1
2
3
2. Lead the AC cable through the cable gland and the housing. Remove the
cable jacket by less than 45 mm, and strip the wire insulation by 12 mm–
16 mm. The cross-section are shown in the following table
Model
Cross-section Range /
Recommended
Seal
SG2K-S / SG2K5-S /
SG3K-S / SG3K-D
4 mm
2
–6 mm
2
/ 4 mm
2
10 mm–12 mm
SG3K6-D / SG4K-D /
SG4K6-D / SG5K-D /
SG6K-D
4 mm
2
–6 mm
2
/ 6 mm
2
12 mm–16 mm

Sungrow SG5K-D Specifications

General

Rated AC Output Power	5000 W
Max. Efficiency	98.4%
Operating Temperature Range	-25°C to +60°C
Max. DC Power	6000 W
Number of MPPTs	2
Max. AC Power	5500 VA
Rated AC Voltage	230 V
AC Voltage Range	180 V - 280 V
Rated Grid Frequency	50 Hz / 60 Hz
Power Factor at Rated Power	>0.99
THDi	<3%
DC Connection Type	MC4
Protection Degree	IP65
Cooling Method	Natural convection
AC Connection Type	Plug-in terminal
