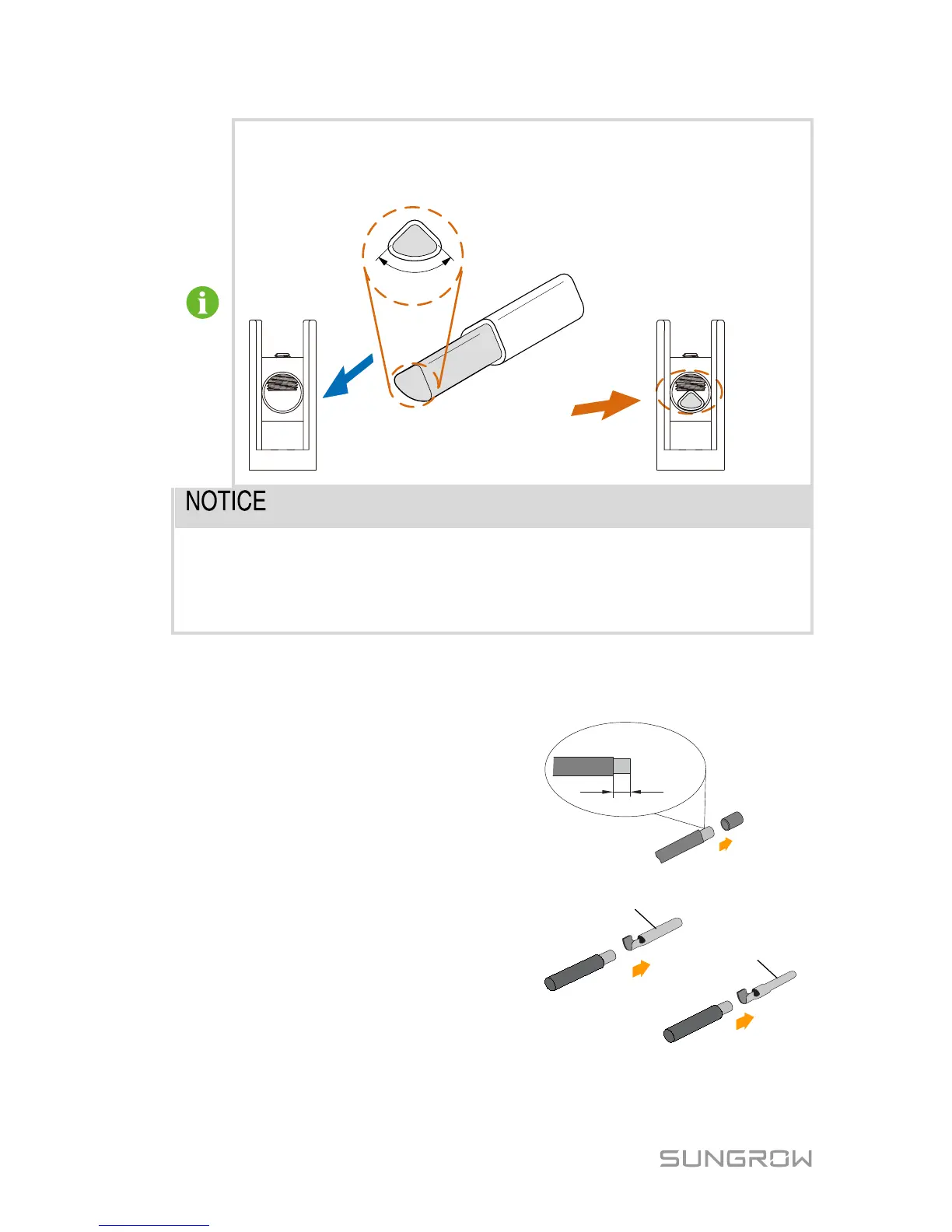

section of the AC cable is sectorial, please place the apex(A) of
sector upside and then fix the AC cable to the corresponding terminals..
Observe the AC terminal layout. Device will not work normally if the phase
cable is connected to the PE terminal.
Do not squeeze or press the cable insulation layer. Improper connection
may affect the normal operation of the inverter.
Step 7 Seal the gaps between the AC cable and the gland inside the lower part of
the cabinet by fireproofing mud.
3-4 DC Connection
Step 1 Strip off 7mm insulation layer from
Step 2 Assemble cable ends with crimp
contacts by crimping pliers.
Positive Crimp Contact
Negative Crimp Contact
To Next Page
