Sungrow SP600S - Installed on Aluminum Guide Rail; Installed on Steel Guide Rail (T-head Bolt)

14

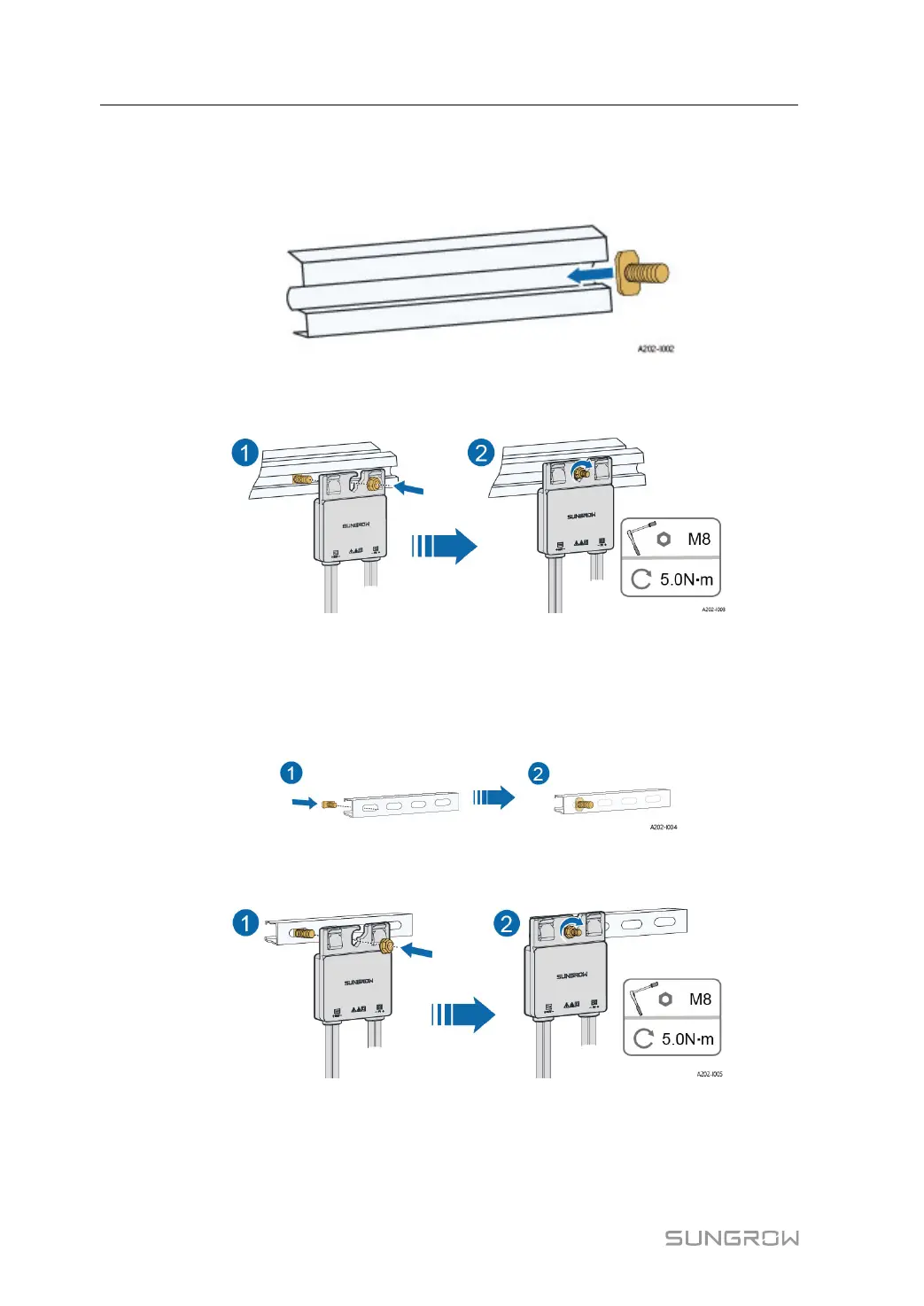

4.3.2 Installed on Aluminum Guide Rail
step 1 It is recommended to use M8*25 T-head bolt assembly (not included in the scope of deliv-
ery). Slide the T-head bolt into the groove in the aluminum guide rail.
step 2 Hang the optimizer at the T-bolt through the bolt hole and fix it on the aluminum guide rail
using a socket wrench in the order of nut, bolt hole and T-head bolt.
- - End
4.3.3 Installed on Steel Guide Rail (T-head Bolt)
step 1 It is recommended to use M8*25 T-head bolt assembly (not included in the scope of deliv-
ery). Insert the T-head bolt through the guide rail and turn it 90°.
step 2 Hang the optimizer at the T-head bolt through the bolt hole and fix it on the steel guide rail
using a socket wrench in the order of nut, bolt hole and T-head bolt.
- - End
4 Mechanical Mounting User Manual
