Sunny SF-B1421 - Step 2: Connect Pedals and Bottle Holder

#20 d5*Φ10*1 2pcs
#21 M5*16*Φ10 2pcs
STEP 2:

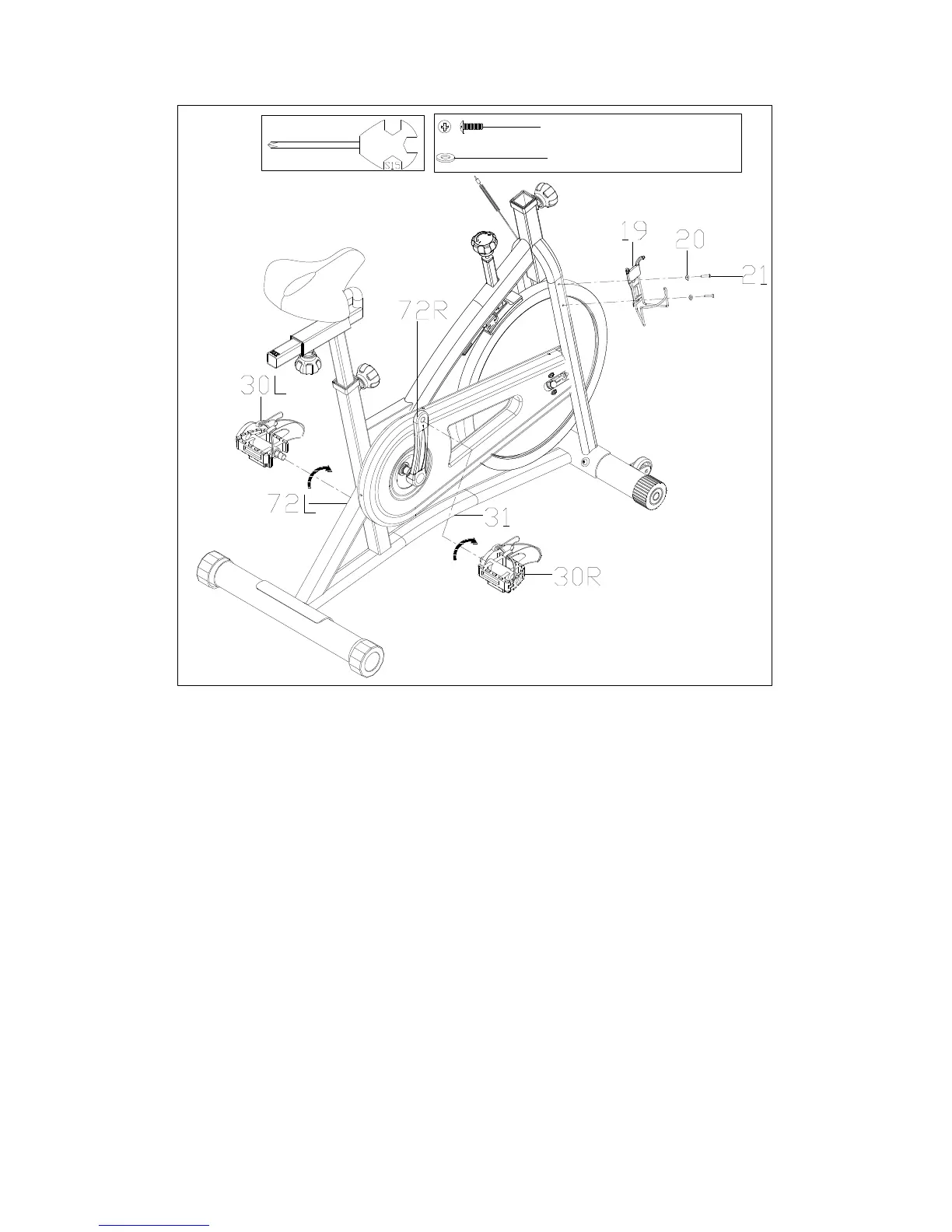

Connect the Left & Right Pedals (No. 30L & No. 30R) to the Left & Right Crank Arms
(No. 72L & No. 72R). Before you begin, immobilize the crank arms by turning the
tension knob all the way to the right.
NOTE: The Left & Right Pedals (No. 30L and No. 30R) are marked L for the left pedal
and R for the right pedal.
Left Pedal: align the Left Pedal (No. 30L) with the Left Crank Arm (No. 72L) at 90
degrees. Gently insert the pedal into the crank arm and turn the pedal counter-
clockwise as tightly as you can with your hand then tighten and secure with Spanner
(No. 33).
Right Pedal: Align the Right Pedal (No. 30R) with the Right Crank Arm (No. 72R) at
90 degrees. Gently insert the pedal into the crank arm and turn the pedal clockwise as
tightly as you can with your hand then tighten and secure with Spanner (No. 33).
Connect the Water Bottle Holder (No. 19) to the Main Frame (No. 31) using 2 Screws
(No. 21) and 2 Washers (No. 20). Tighten and secure with Spanner (No. 33).
7
