NOTE: After a period of time, the grease in the joint will become dry and may cause
noise as a result. Please follow the instructions below regarding the proper lubrication of
the joint, this should be done periodically in order to maintain adequate lubrication.

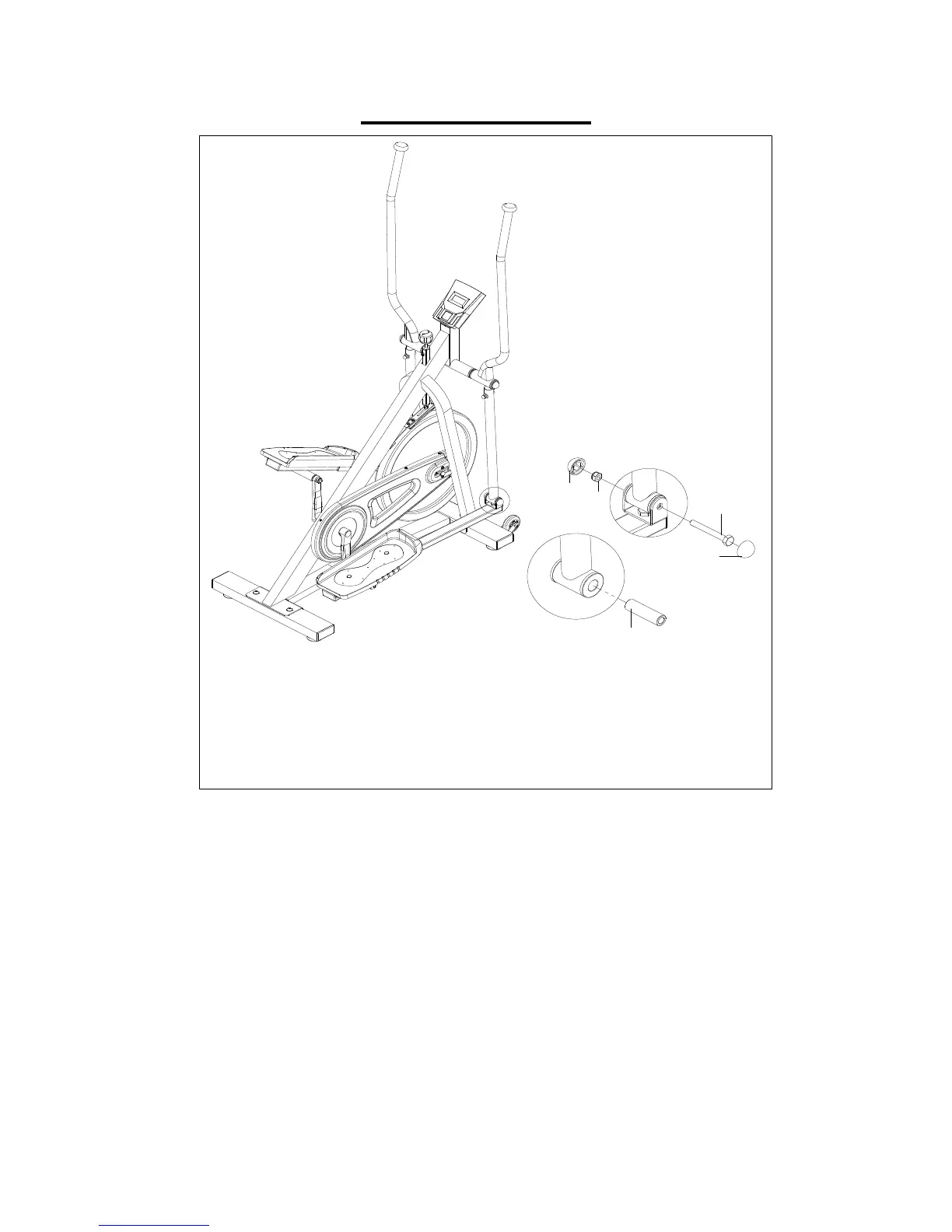

Begin by removing End Cap (No. 22), Bolt (No. 31) and Nut (No. 33) as shown above
in figure “I”.
Next remove the Spacer (No. 30) as shown above in figure “I I”, next add some grease
to the surface and to the inside of the Spacer (No. 30), this will increase lubrication
which will decrease rub, (repeat this process for the left side). This should be done
periodically in order to maintain adequate lubrication and function ability of the
equipment.
Upon completion be sure to re-attach the Spacer (No. 30) and re-assemble the Bolt
(No. 31), Nut (No. 33) and End Cap (No. 22).
