ASSEMBLY INSTRUCTIONS

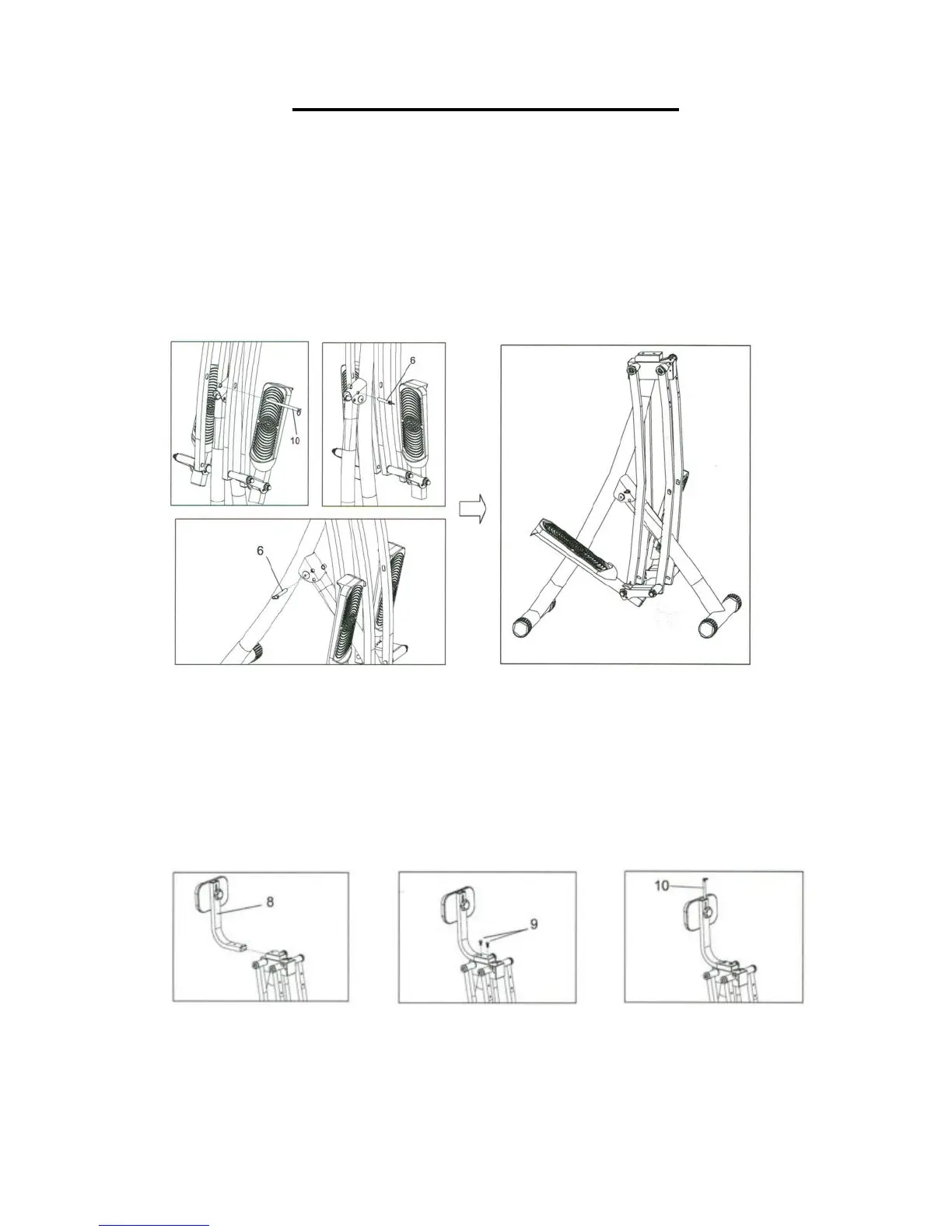

1) Unfolding the Air Walker Trainer
Pull out the large Ball Pin (10), located half-way through the swing bars, to unlock the swing bars.
Pull out Ball Pin (6), located in the hinge where the two support tubes meet, to unlock the Main
Frame (7). Unfold the main frame by pulling apart the support tubes. Reinsert the Ball Pin (6) into
the aligned holes on the hinge, to secure the Main Frame (7). Unfold both of the pedals to have
the machine fully unfolded.
2) Attaching the Abdominal Support
Insert the Abdominal Support (8) into the slot located at the top of the Main Frame (7). Align the
holes on the Abdominal Support (8) with the holes on the slot and insert two Allen Screws (9) into
each hole and use the Allen Key (A) to secure. Insert the large Ball Pin (10) into the top hole of the
Abdominal Support (8) for safe keeping.
4
