17

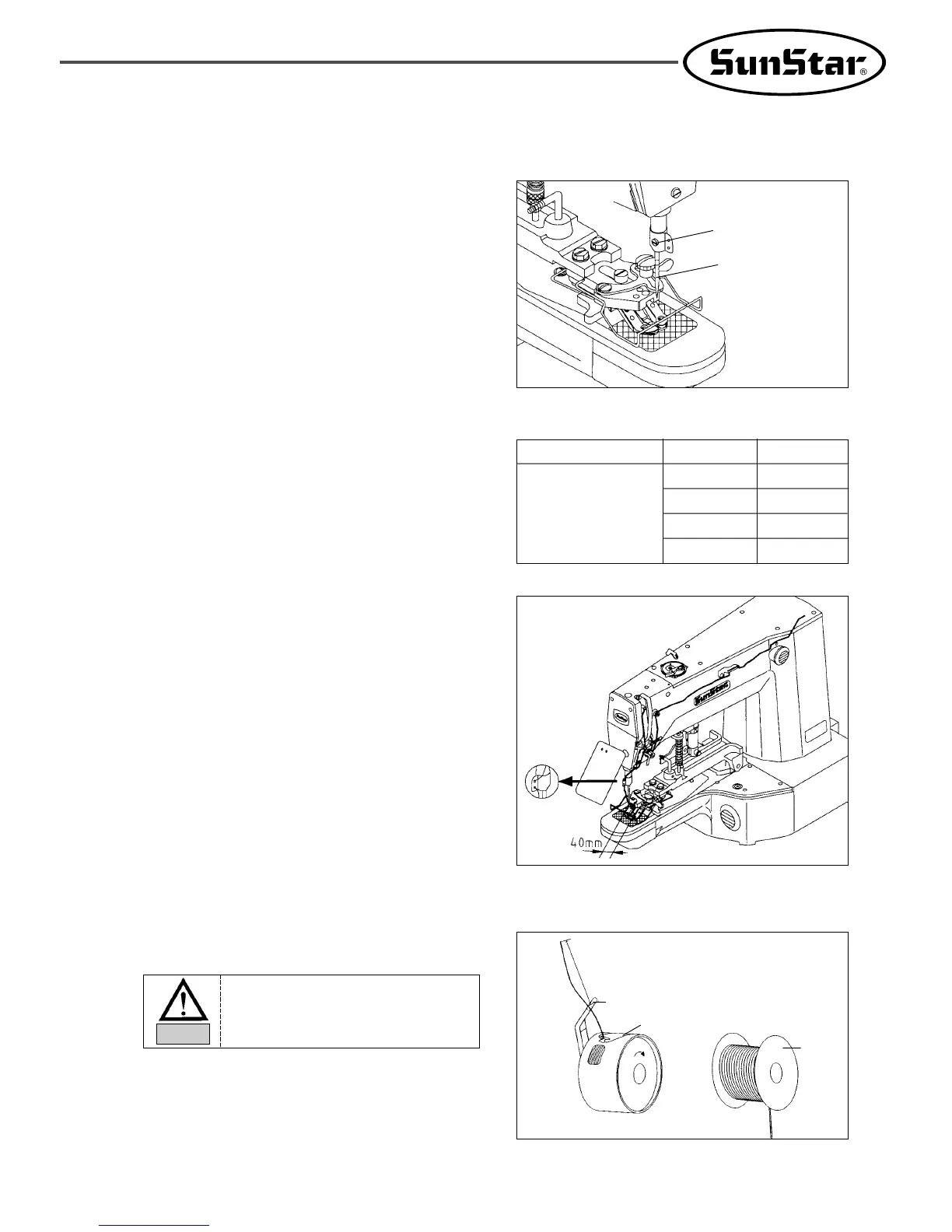

5) How to pass upper thread
Place the thread take-up lever on the top
position, and hang the upper thread as shown in
the Figure20. About 40mm of the upper thread
should come out from the needle eye.
[ Fig. 20 ]
3) How to attach needle
Loosen the needle fixing screw① in the needle
bar, place the long groove of needle② toward to
user and push it until the needle upper point
gets to the needle insert hole, then fix it with
the needle fixing screw①.
[ Fig. 19 ]
①
4) Checking needle and thread
Refer to the right table when selecting the
needle and thread to use according to working
conditions.
(Cotton thread or span thread is available.)
②
Needle
DP×17 #14
Upper Thread
#60
#50
#40
#60
#80
#60
#60
#60
Lower Thread
6) Threading the lower thread
A. Insert bobbin ① into bobbin case ② as
shown in the Figure21.
B. After setting the lower thread through the
crack of the bobbin case, insert the thread
through thread hole ③.
C. Adjust the lower thread to hang 25mm out
of thread hole ③.
[ Fig. 21 ]
③
25mm
②
①
Insert the bobbin to turn clockwise
when seen from behind the bobbin
case
Caution
To Next Page
