SM3.6kWLL - Lifelynk X12
1. Connect the Lifelynk X Hybrid Inverter to the electrical grid via the grid ports, using a suitable RCD and a
20A fuse on the consumer board.
2. Now, using a 3mm cable, connect only the essential loads to the load ports (output) to a secondary
consumer board, considering the maximum limit of 3.6 kW.
3. Ensure the main consumer unit and the secondary consumer unit are correctly grounded to the Lifelynk X.
The Lifelynk X Hybrid Inverter has an MPPT controller with a maximum input current of 16A.
Please do not connect two PV sets with different voltages to the MC4 connectors. This can damage the
PV set, causing the system to malfunction.
Before connecting to PV modules, install a separate DC circuit breaker between the inverter and PV array.
To avoid any malfunction, DO NOT connect any PV modules with possible current leakage to the inverter.
For example, grounded PV modules will cause current leakage to the inverter.
Also, the open-circuit voltage (Voc) of the PV modules does not exceed the maximum input voltage of the
inverter. Also, the Voc of the PV array should be higher than the minimum starting voltage of the inverter.
Connect the PV panels into the MC4 connectors.
Essential Loads
Non-Essential Loads

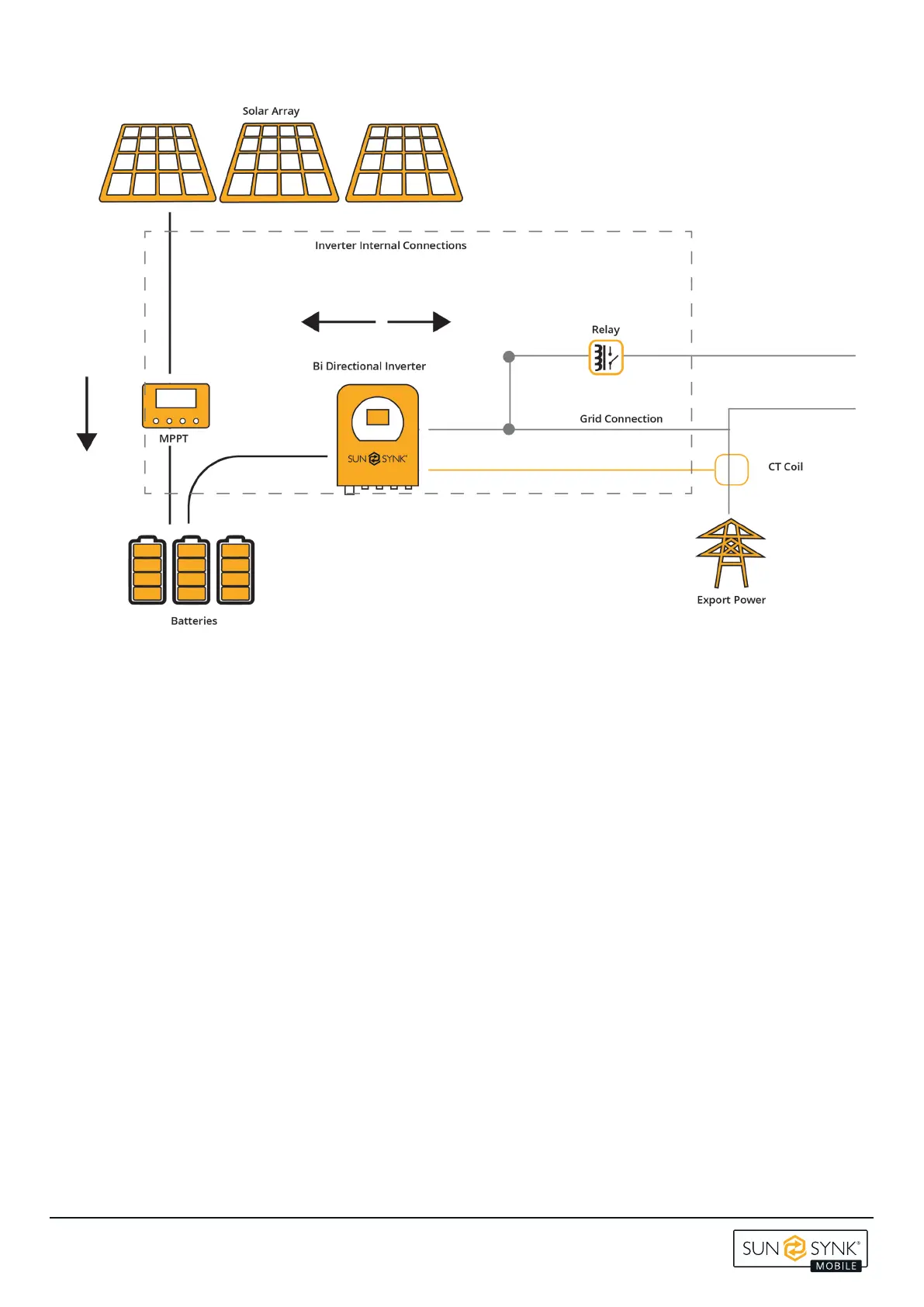

Flow Diagram
Connecting to the Mains / Grid
Wiring the PV Panels
To Next Page
