A
A
B
B
NOTE

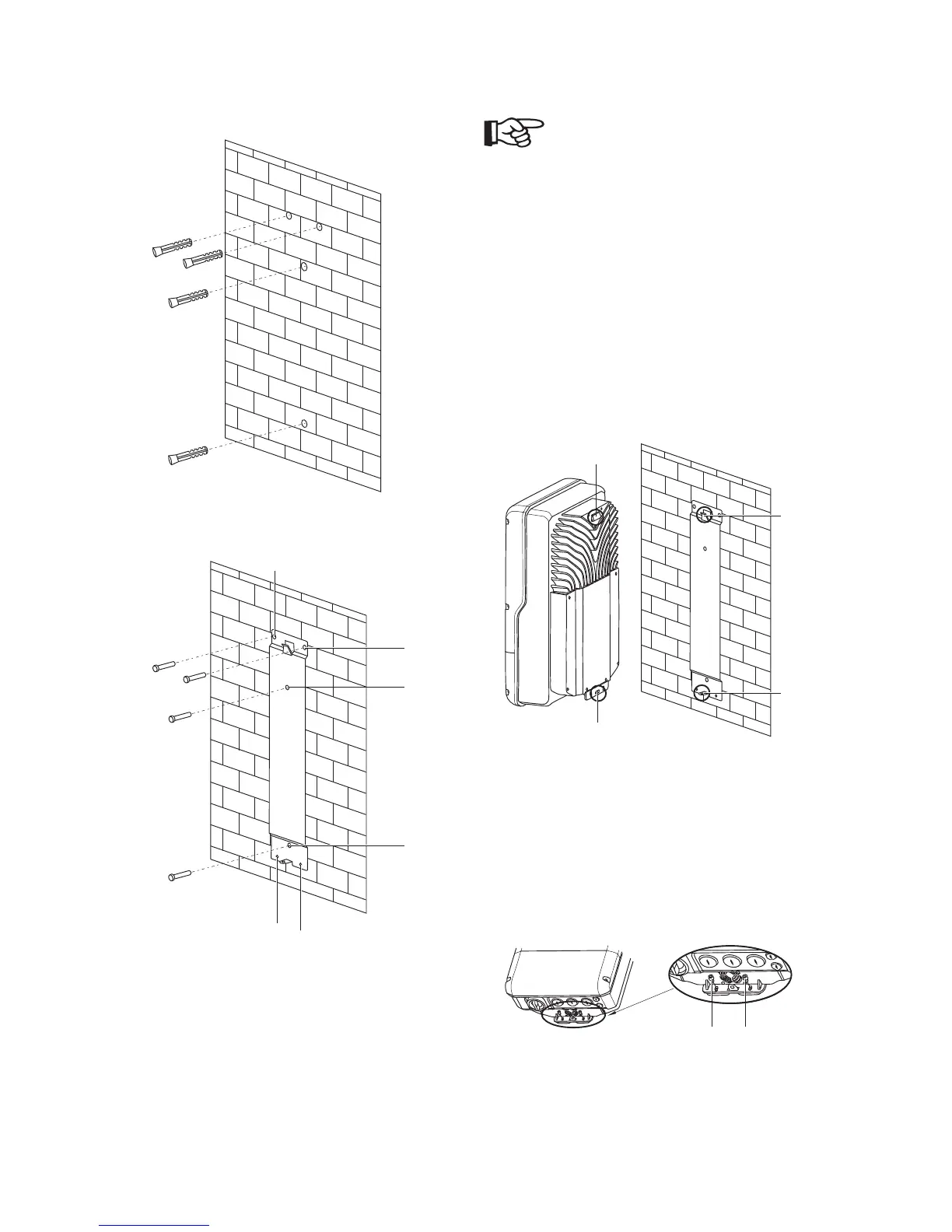

The bracket needs to be mounted vertically to the
wall and the side with the hook (shown as pos C in
the next figure) should be mounted with the hook
pointing upward as shown in the figure.
3. After the bracket is secured to the wall, install
the inverter as shown in the following figure.
The inverter should be hung onto the bracket
using the hook D and the hole F that need to be
well inserted into their counterparts C and E (D
connects to C and F connects to E).
Wall mounting of inverter
C
E
D
F
4. After the inverter is hung onto the wall mount-
ing, it needs to be secured using the M6x10
screws that will pass through the opening on the
lower side of the inverter (shown as pos H in the
following figure) into to the PEM faster (shown
as position B).
Fasten inverter installation
H
H
