5 Electrical connection
30
Router
RS485
adapter
RS232
SolaPower
Manager
Ethernet
Ethernet

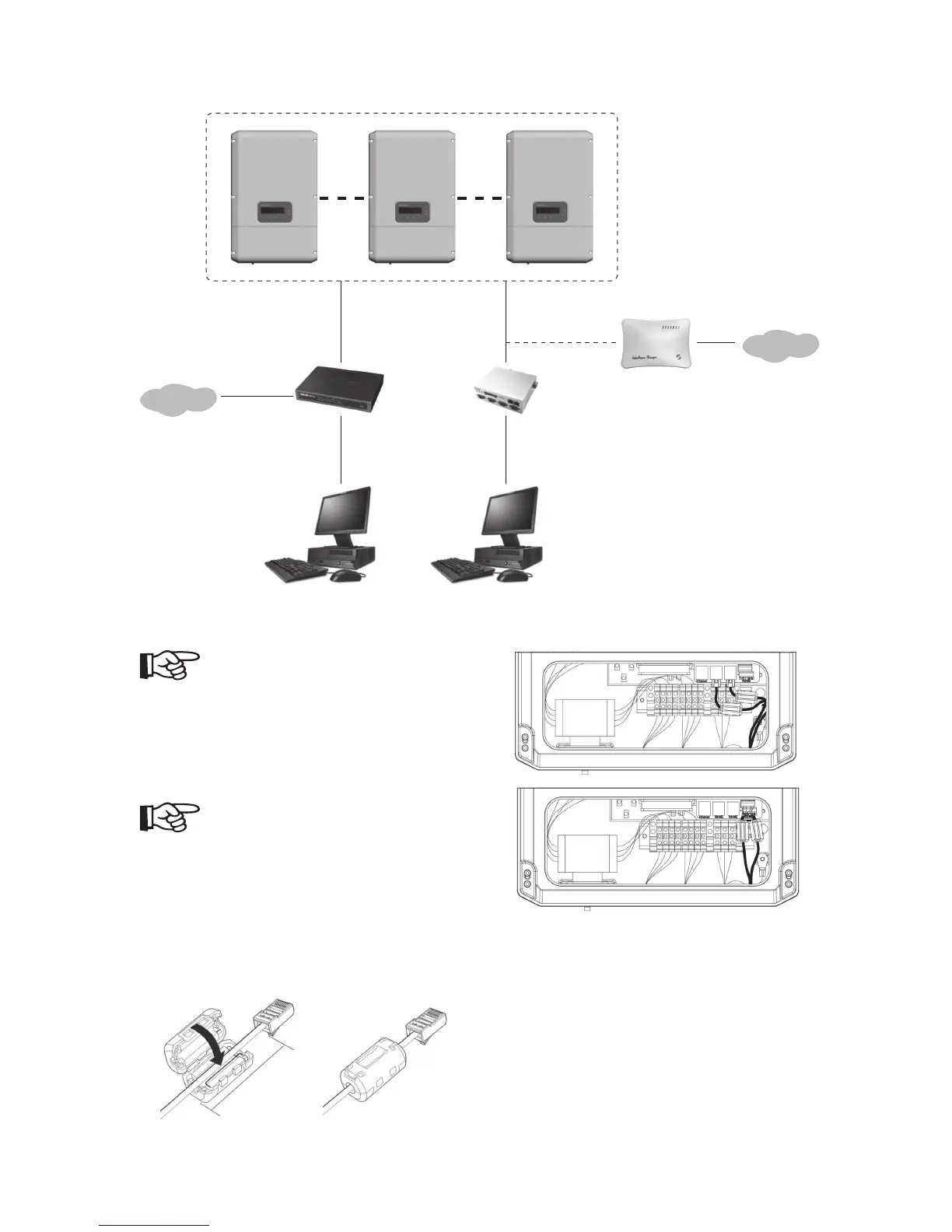

NOTE
The RJ485 pin definition refer to section “5.1
General electrical connection procedure of NTX
inverter”, see page 20.
NOTE
When using a third-party RS485 cables to connect
the inverters, attach the supplied ferrite cores to the
RS485 cables as shown. NTX supply two ways to con-
nect RS485, one way is using RS485 cables with RJ45
connectors to insert into RS485 blocks, another way
is screwing RS485 cables on terminal blocks.
