DRT3000 Series Direct-Vent Gas Fireplaces
45
INSTALLATION ACCESSORIES

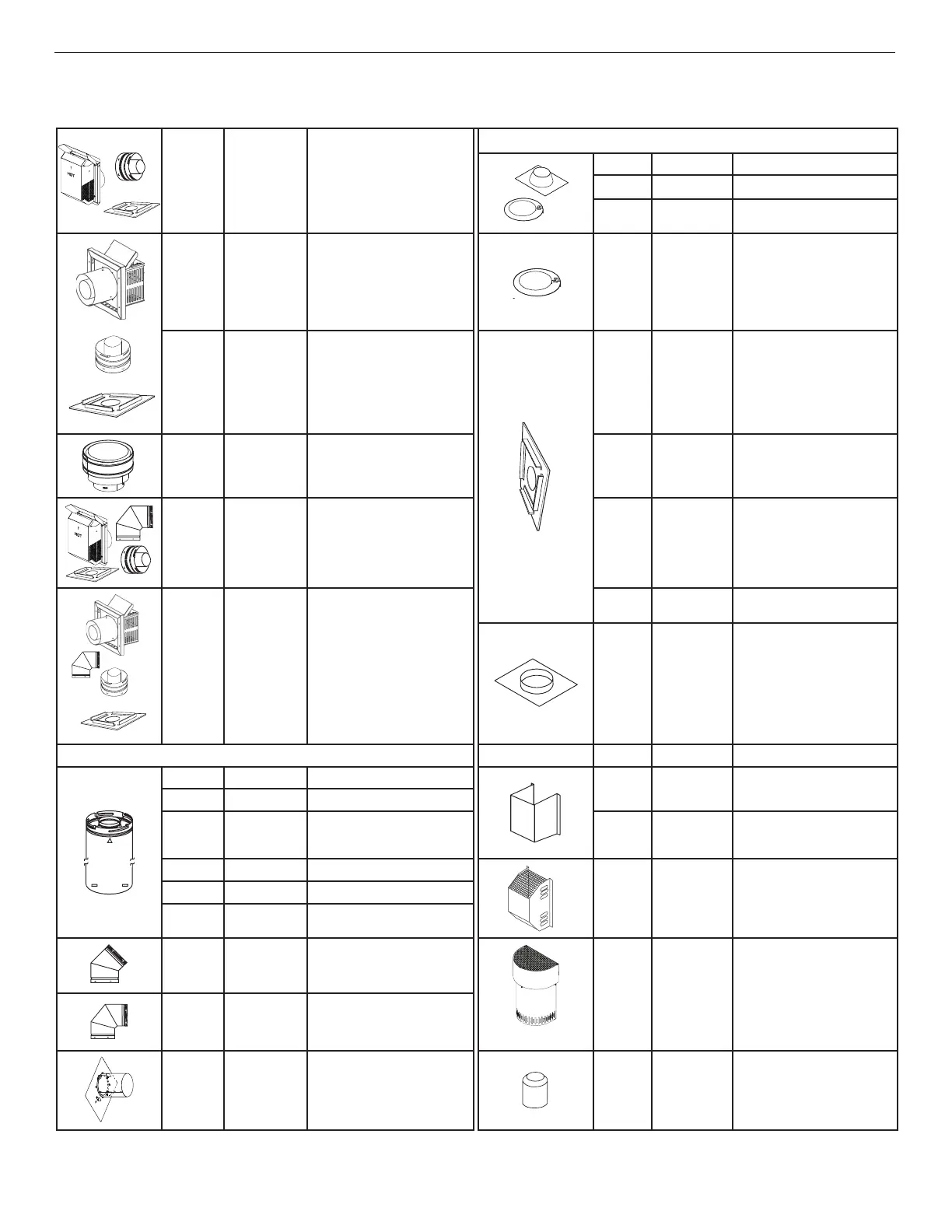

Table 30: Listed Secure Vent
®
Components
H1968 SV4.5HT-2
Horizontal Square Termination
with Firestop/Spacer (H2246),
and Adaptor (74L61)
77L78 SV4.5F Flat Roof Flashing
77L79 SV4.5FA 1/12 to 7/12 Adjustable Flashing
77L80 SV4.5FB
7/12 to 12/12 Adjustable
Flashing
94L10 SV4.5HTSS
Rigid, Horizontal, Small Square
Termination with Firestop/Spacer
(H2246), Adaptor (74L61)
(see 750204M)
77L81 SV4.5SC6 Storm Collar (6 pack)
H5817 SV4.5-20SSWSK
Rigid, Small, Square
Termination, 20” with Shield and
Firestop (see 750247M
and 750204M)
H6183 SV4.5HF5 Firestop Spacer, 5”, rigid
H2152 SV4.5CGV-1
Vertical Termination Cap, High
Wind
H6184 SF4.5HF5 Firestop Spacer, 5”, flex
H8914 SV4.5TK90HT2
Horizontal Termination Kit HT-2
with 90° elbow
H2246 SV4.5HF-10
Firestop/Spacer-Horizontal, rigid
(3-1-1 spacing), 10 Pack
H8915 SV4.5TK90SS
Horizontal Termination Kit Small
Square with 90° elbow
H2247 SV4.5VF-10
Firestop/Spacer-Vertical, rigid
(1-1-1 spacing), 10 Pack
96K92 SV4.5SP Support Plate
Vent Sections (Rigid)
77L70 SV4.5L6 6” (152 mm)
17M52 SV4.5HGS-1
Termination Guard, Square (1
pack) (see 750109M)
77L71 SV4.5L12 12” (305 mm)
77L72 SV4.5L24 24” (610 mm) 17M53 SV4.5HGS-12
Termination Guard,
Horizontal Square (12 pack)
(see 750109M)
77L73 SV4.5L36 36” (914 mm)
87L02 SV4.5HGS
Termination Guard for Horizontal
Square Termination (Deluxe)
(1 pack) (see 750055M)
77L74 SV4.5L48 48” (1219 mm)
77L75 SV4.5LA
Telescopic Length Slip Section
(2–7 1/2” rigid)
77L76 SV4.5E45 45° Elbow
H5820 SV4.5HTSK
Termination Shroud (Guard) for
Horizontal Square Termination
(1 pack) (see 750246M)
77L77 SV4.5E90 90° Elbow
H5816
750,247M
SV4.5-
TWSK10
Through Wall Shield Kit (to shield
direct-vent pipe from blown
insulation)(see 750247M)
H3907 SV4.5ARSA
Attic Insulation Shield with
adjustable height, 12–22”
