INNOVATIVE HEARTH PRODUCTS • SEE-THROUGH DIRECT-VENT GAS FIREPLACES (DRT63STTEN/P) • INSTALLATION INSTRUCTIONS

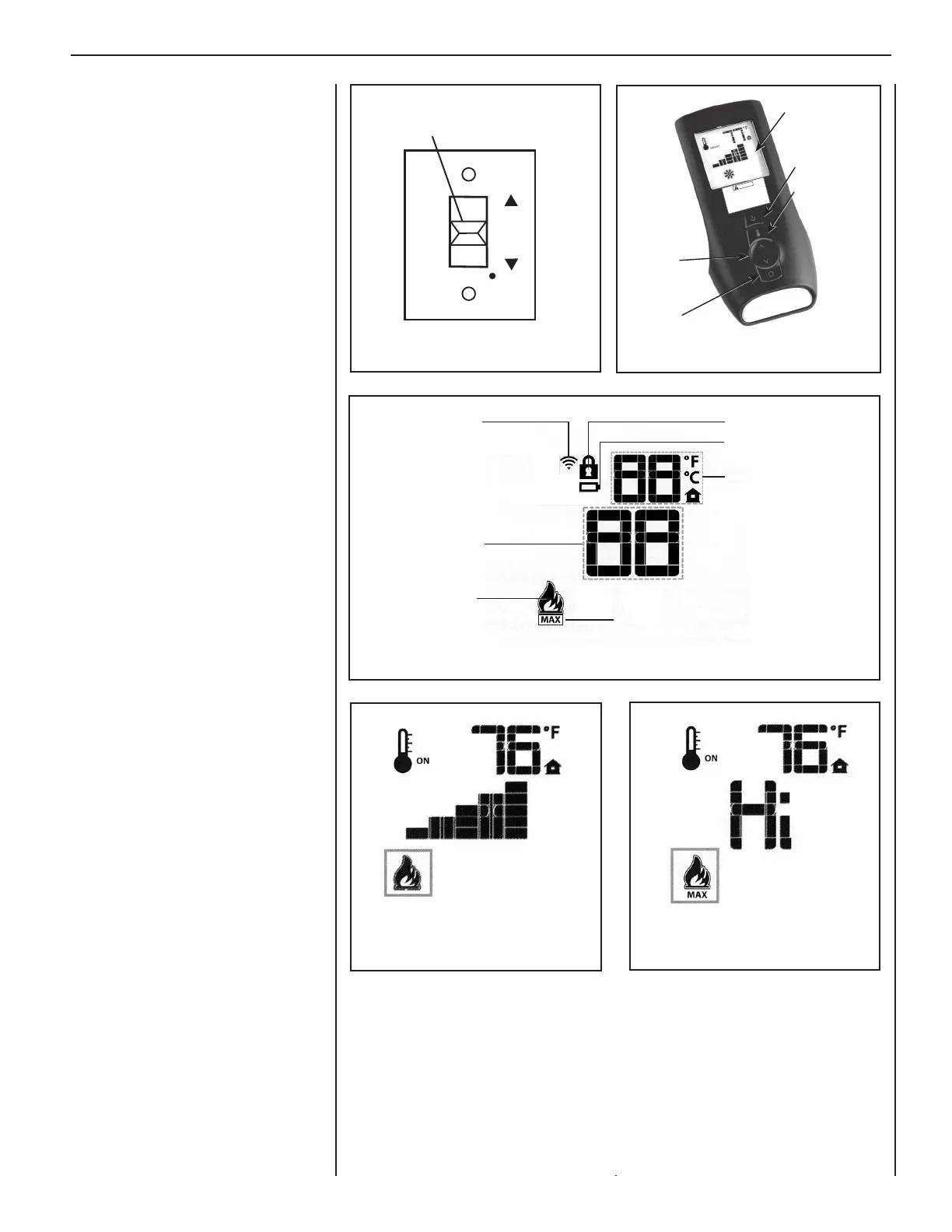

Figure 62
Figure 61: Indicator Icons
Flame Level 5
Transmission
Set Point
Temp./Level/State
Flame On
Child Safety Lock-Out
Low Battery Alarm
Room Temperature
Figure 63
Flame Level Maximum
Figure 59: Receiver
Remote
Off
On
PRG
Slider Switch In
Remote Position
Figure 60: Remote Control
Key Lock
This function will lock the keys to avoid unsu-
pervised operation To activate this function,
press the MODE and UP keys at the same time.
To de-activate this function, press MODE and
UP Keys at the same time.
Intermittent/Standing Pilot Mode
This fireplace can be switched from intermittent
ignition to a standing pilot simply by toggling
the switch located in the control compartment
(refer to Figure 57 on Page 41). To save
energy, switch to intermittent mode. To have
a standing pilot which will help startup in the
winter by warming the flue and the glass, switch
to standing pilot. The standing pilot mode is
indicated by a pilot that comes on and remains
lit when the fireplace is off.
Manual Bypass Of The Remote System
If the batteries of the Receiver or Transmitter
are low or depleted, the appliance can be turned
on manually by sliding the three position slider
switch to the ON position. This will bypass the
remote control feature of the system and the
appliance main burner will come on if the gas
valve is in the "On" position.
Maximum Level Indicatiors
Hot Fireplace Will Cause
Severe Burns
Never Allow Children to
Touch Glass or other Fire-
place Parts
WARNING
Blue LCD Display
ON/OFF Key
ROOM
TEMPERATURE
Key
UP/DOWN
Arrow Key
MODE Key
