48
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

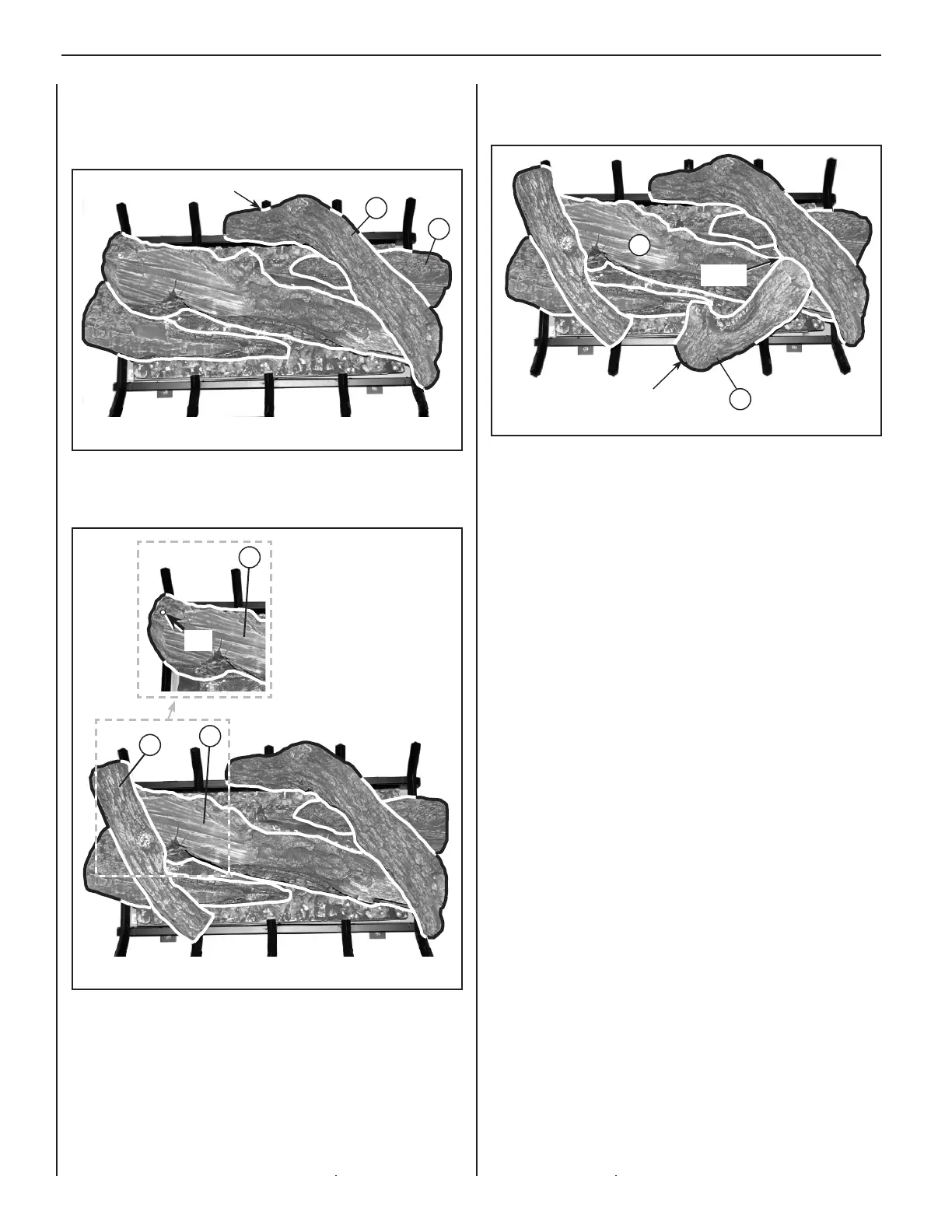

11. See Figure 19. Place groove on underside of Top Front Log F over
the grate finger. Rest the other end of the log on the Landing on
Center Log A.
Figure 74
10. See Figure 18. Place hole on underside of Top Left Log E over pin
on Center Log A.
9. Place groove on underside of Top Right Log D over the grate as
shown in Figure 17.
The middle section of Log D will rest on the landing on Log B
(labeled as “Landing for Log D” in Figure 15).
Groove Location
Figure 73
Figure 75
Groove Location
Landing
Pin
[DETAIL]
A
E
A
D
B
A
F
INNOVATIVE HEARTH PRODUCTS • SEE-THROUGH DIRECT-VENT GAS FIREPLACES (DRT63STTEN/P) • INSTALLATION INSTRUCTIONS
