12

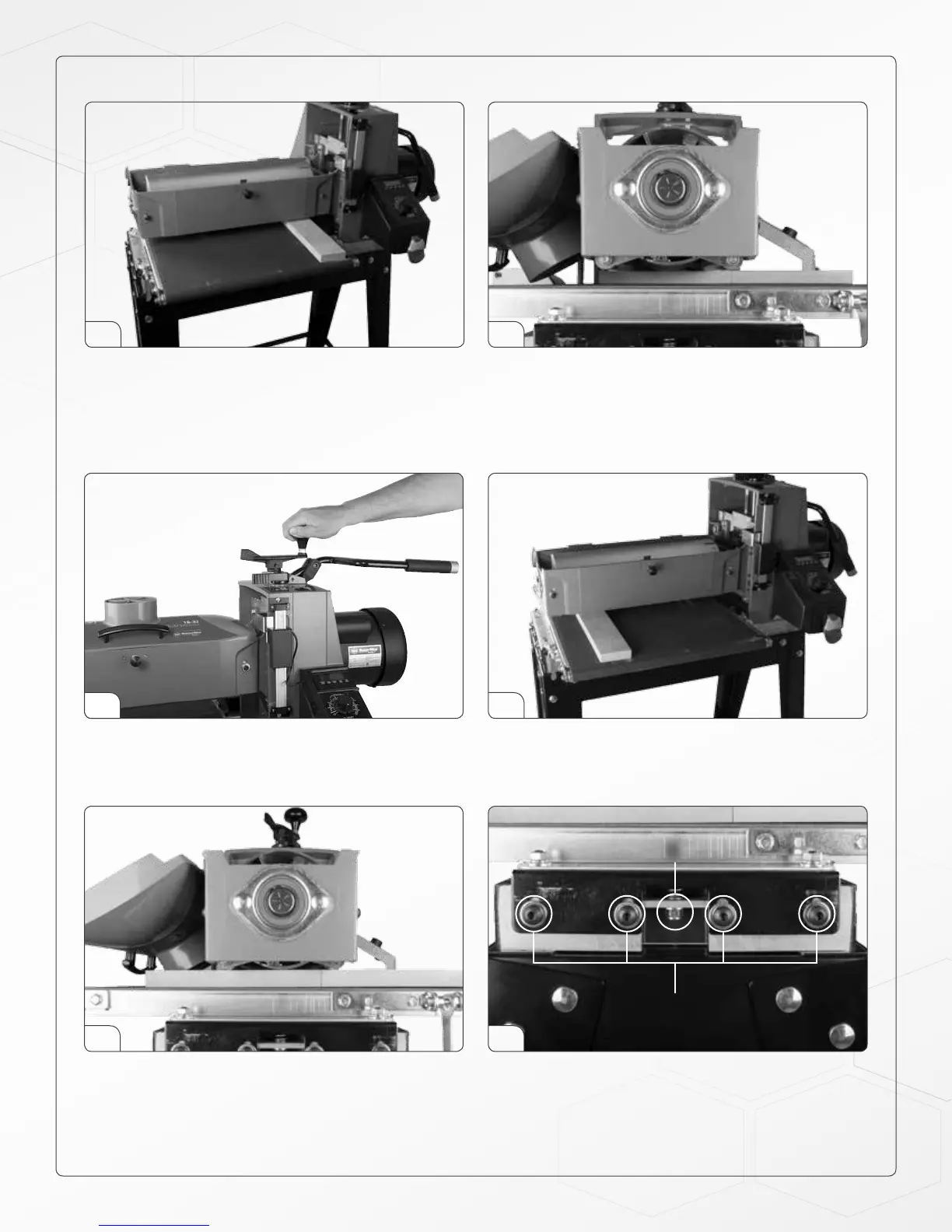

Use a flat, uniform piece of wood as a thickness
gauge. Set it between the conveyor belt and the drum
on the inboard (right) side of the machine.
The tension rollers are set just below the drum enough
so that items cannot pass easily underneath. Use the
height adjustment handle as necessary to lower the
head of the sander until the drum just makes contact
with the piece of wood. Turn on the DRO and take note
of the thickness indicated on the display.
3
Raise the head of the sander by rotating the height ad-
justment handle up exactly one full turn.
After the height has been adjusted move the piece of
wood over to the outboard side (left) and lower the head
by turning the handle down exactly one full turn until the
DRO thickness matches what was noted in step #4.
5 6
4
Check the height of the drum in relation to the piece of
-
not turn the handle one full turn, or if there is a gap
between the drum and the wood, proceed to the fol-
lowing alignment procedure.
screws A along the outboard (left) side of the conveyor
belt and raise or lower the conveyor with the adjust-
ment nut B to achieve parallel alignment. Then tighten
the four socket head screws
7 8
B
A
