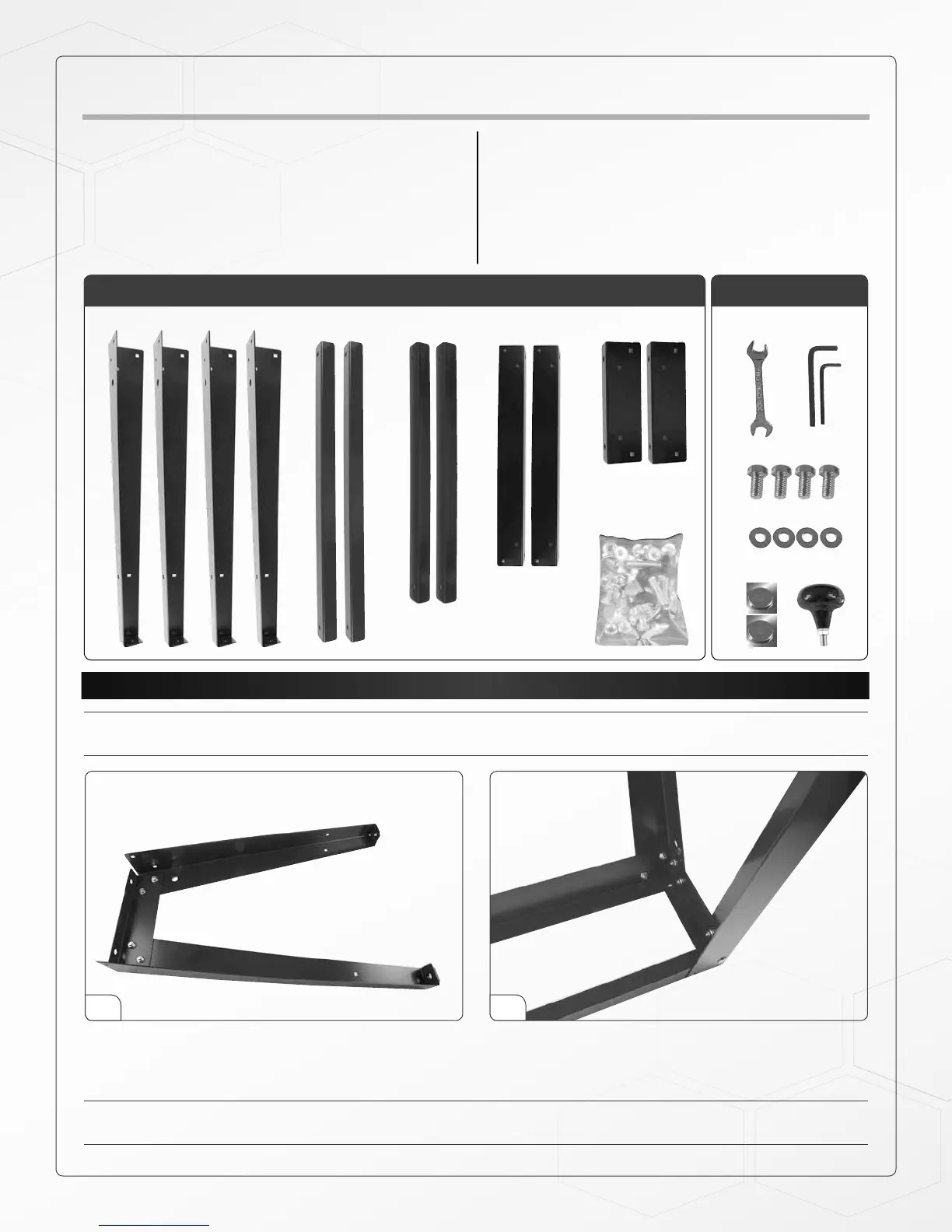

PACKAGE CONTENTS
ASSEMBLING YOUR SUPERMAX TOOLS DRUM SANDER
Note: For initial stand assembly secure all fasteners nger tight to start. This will allow for easier levelling after
the sanding unit is installed on the stand.
Note: To avoid incorrect leg positioning, the holes in the legs are spaced so that the short and long top braces
will only line up from one face of each leg.
1. Machine (not shown) ...................................................... x 1
2. Stand leg ............................................................................ x 4
3. Long lower cross braces .................................................x 2
4. Short lower cross braces ................................................x 2
5. Long top cross braces .................................................... x 2
6. Short top cross braces ................................................... x 2
7. .................................................................. x 1
8. Wrench 12 - 14 mm ....................................................... x 1
9. Allen key 4 & 5 mm ....................................................... x 2
10. Bolt 3/8"...................................................... ..................... x 4
11. Flat washer 3/8" ............................................................. x 4
12. Battery ............................................................................. x 2
13. Knob ................................................................................. x 1
Assemble the stand by securing two legs to the out-
side of each of the two short top cross braces using
the supplied carriage bolts and flange nuts.
Secure the two long top rails inside of the legs and on
top of the short rails.
1 2
8
2 53 4 6
7 8
7
8 9
10
11
12 13
STAND BOX CONTENTS (found inside the main box)
