MAINTENANCE
MONTHLY MAINTENANCE CHECKLIST
• Lubricate conveyor bushings and check for wear.
• Lubricate with a dry lubricant spray all of the moving parts, such as threaded rods and washers.
• Clean dust from conveyor belt.
• Check all set screws for tightness.
• Clean drum and abrasives if necessary.
REPLACING CONVEYOR BELTS
To replace the conveyor belt, the conveyor assembly must be removed from the machine.
DISCONNECT THE MACHINE FROM THE POWER SOURCE.
Raise the drum carriage to its highest position using
the height adjustment handle. Turn off power source
to machine. Unplug main drive motor from receptacle
(in gear motor assembly).
Loosen the conveyor take-up screws to relieve belt
tension and slide the drive roller fully inward.

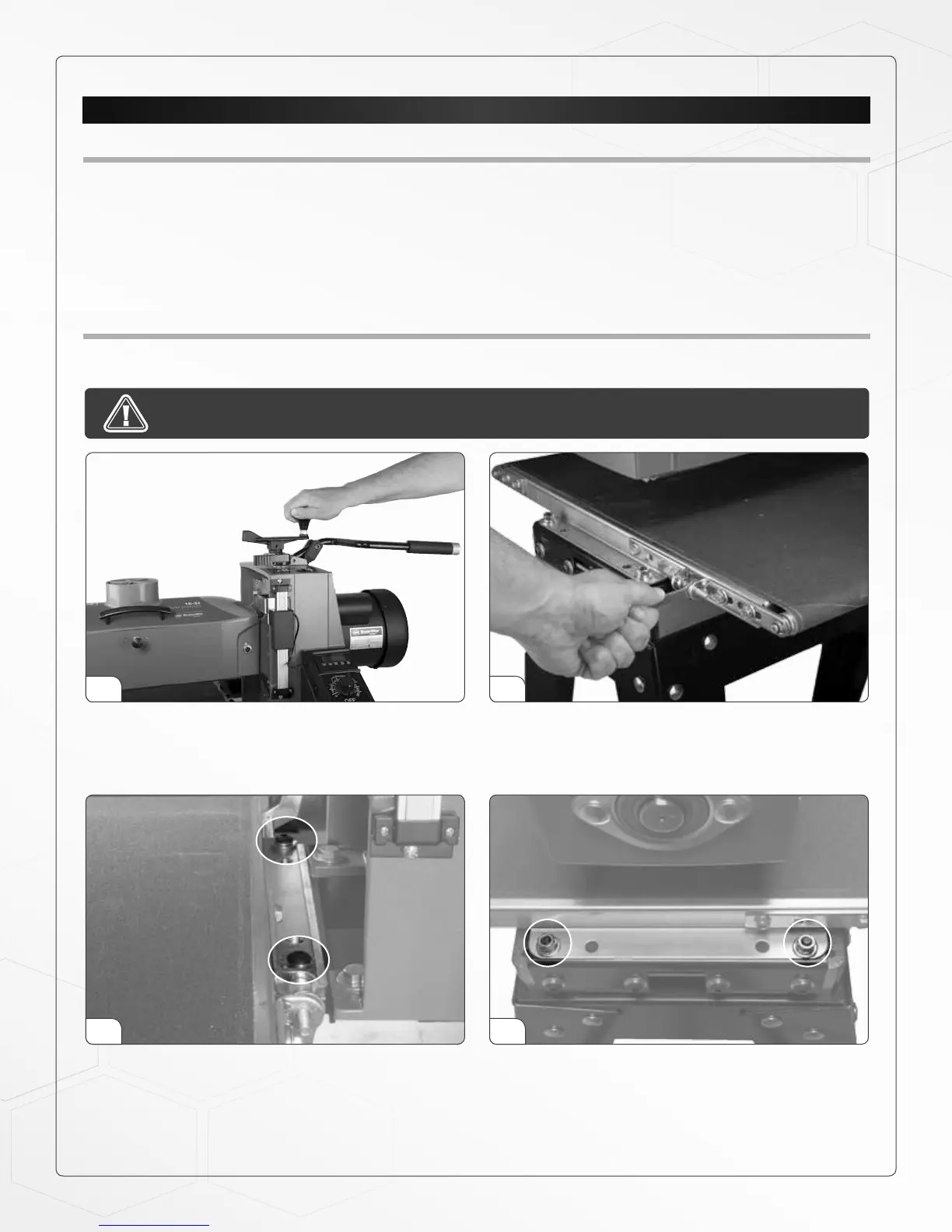

1 2
Remove the two Allen head bolts on the inboard (right)
side that attach the conveyor assembly to the base.
Remove the two nuts and washers from outboard
(left) side. Lift the conveyor and remove it from the san-
der. Set conveyor on motor side. Avoid tearing the belt
on any edges underneath the conveyor bed during re-
moval. Reverse the procedure for re-installation. Re-ins-
tall the conveyor bed to sander.
3 4
