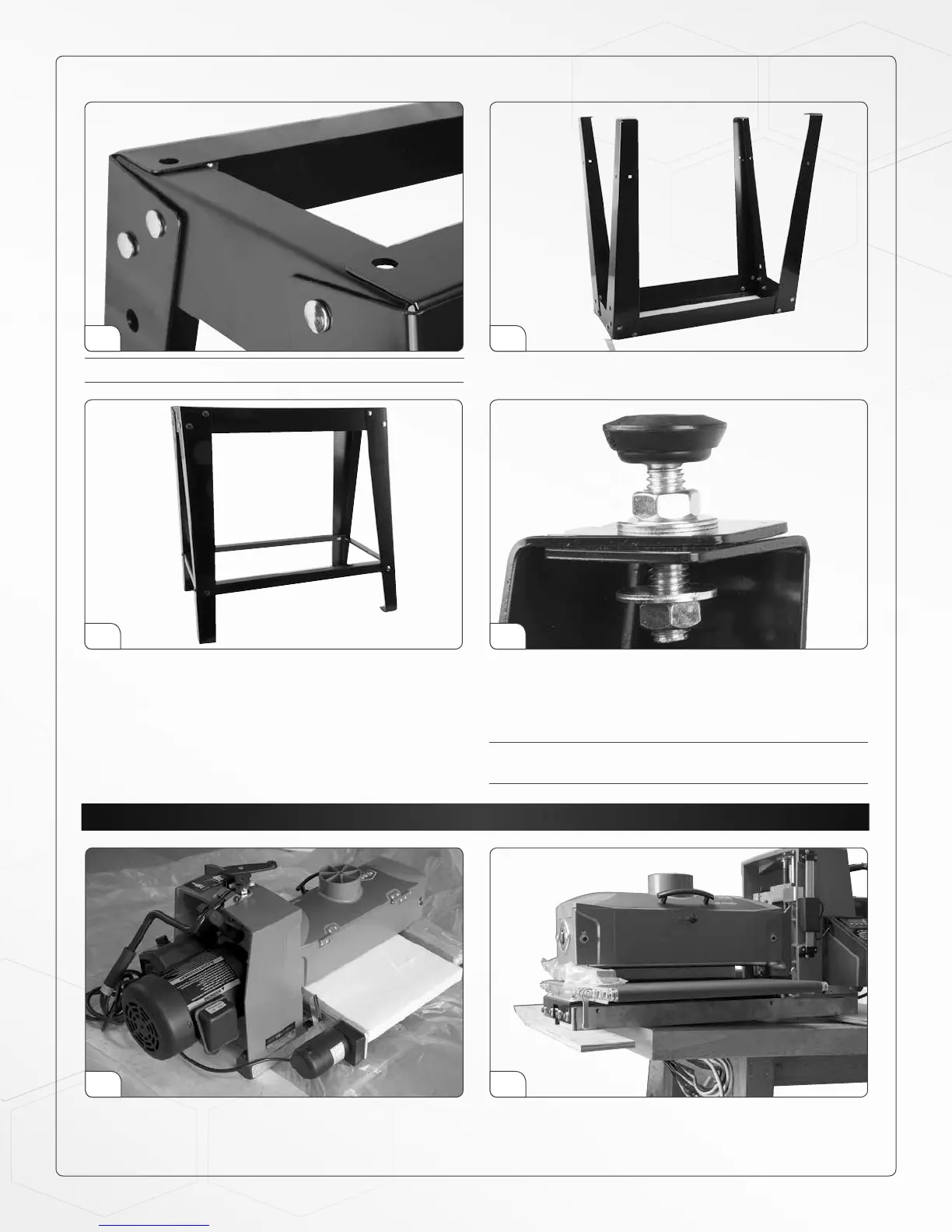

Connect the second leg sub-assembly to the top long rails.
Note: Long rail on top of short rail and both rails inside of legs.
3
For easier access to remove the unit from the box, peel
back the plastic liner, cut the box at the corners, and fold
down the 4 sides of the box.
Then with the help of an assistant carefully lift the unit
and set it down on a workbench with one end hanging
slightly over the edge.
INSTALLING YOUR SUPERMAX TOOLS DRUM SANDER
1 2
Attach the lower cross braces to the legs – again, the
longer cross braces should sit on top of the short ones.
Thread a hex nut onto each of the leveling feet attach a
leveling foot to the bottom of each leg with the hard-
ware order as shown (not required if installing optional
caster set #98-0130).
Note: After nal assembly and sander installation, adjust
the nuts on the threads as needed to level the stand.
5 6
4
9
To Next Page
