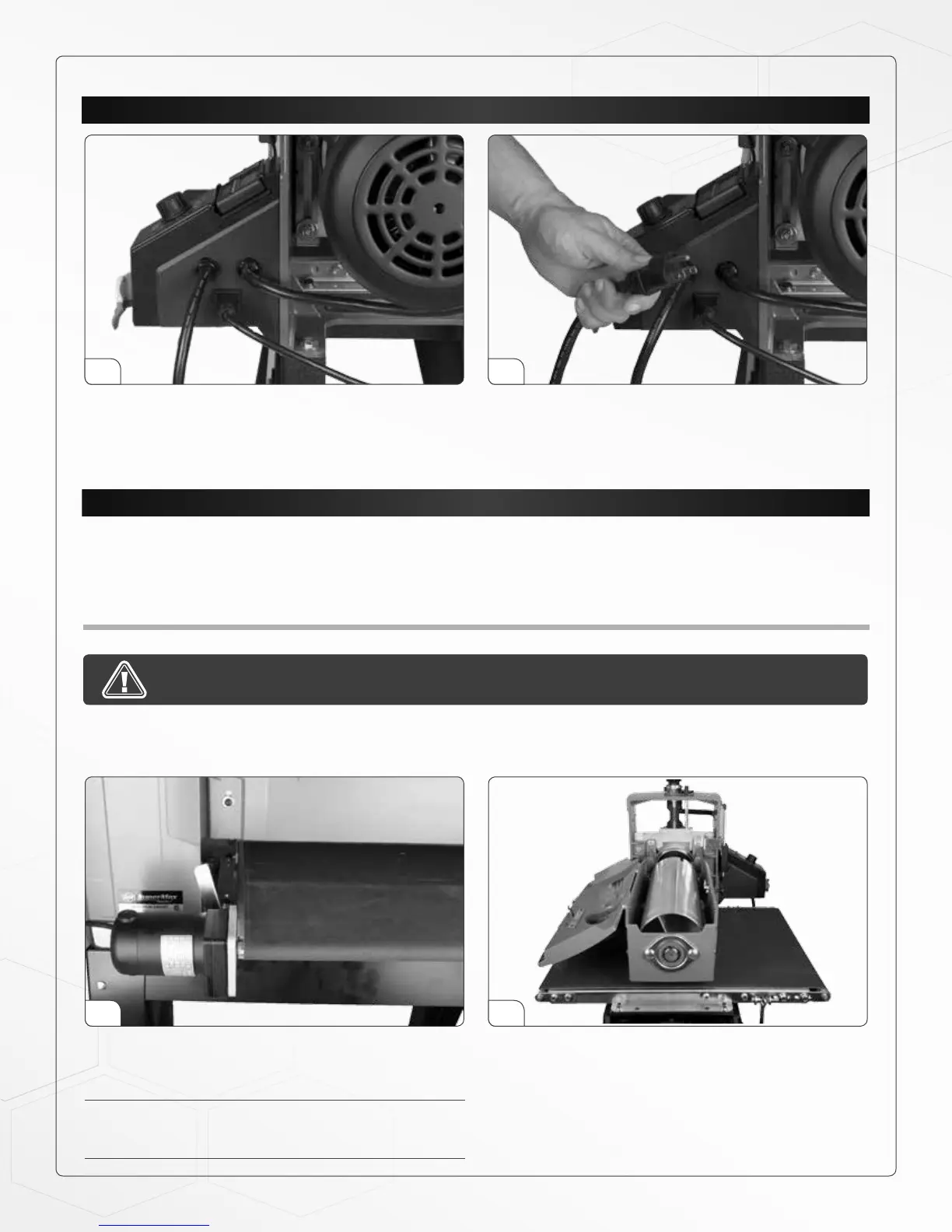

Plug the short power cord that is attached to the mo-
tor into the outlet on the control box. This cord will pro-
vide switched power for the motor when the machine
is plugged into the power source.
Check your power supply to make sure that it is ade-
quate (110V, 15 A, 20 Amp service required) but do not
plug the machine into the power supply until it is fully
set-up.
10 11
INSTALLING YOUR SUPERMAX TOOLS DRUM SANDER (CONTINUED)
SETTING UP YOUR DRUM SANDER
-
Problems can be avoided if these essential checks and set-up procedures are performed prior to operation.
CHECKING DRUM ALIGNMENT
During initial set-up only, checking the alignment before using the sanding drum is necessary to make sure that
the drum is parallel.
Remove the abrasive from the drum. This is necessary
to make sure that the adjustment is as accurate as
possible and the texture on the abrasive will make the
adjustment imprecise.
Before checking drum alignment make sure that the
fast lever between the conveyor motor and the unit is
in the up position.
The conveyor table bolts on the inboard side should not be
so tight that the Fast Lever does not rotate – see rst note
on page #17.
1 2
DISCONNECT THE MACHINE FROM THE POWER SOURCE.
11
