Supermicro AOC-MTGN-i2S User Manual

2-2
AOC-MTGN-i2S Add-on Card User's Guide
2-2 Major Components

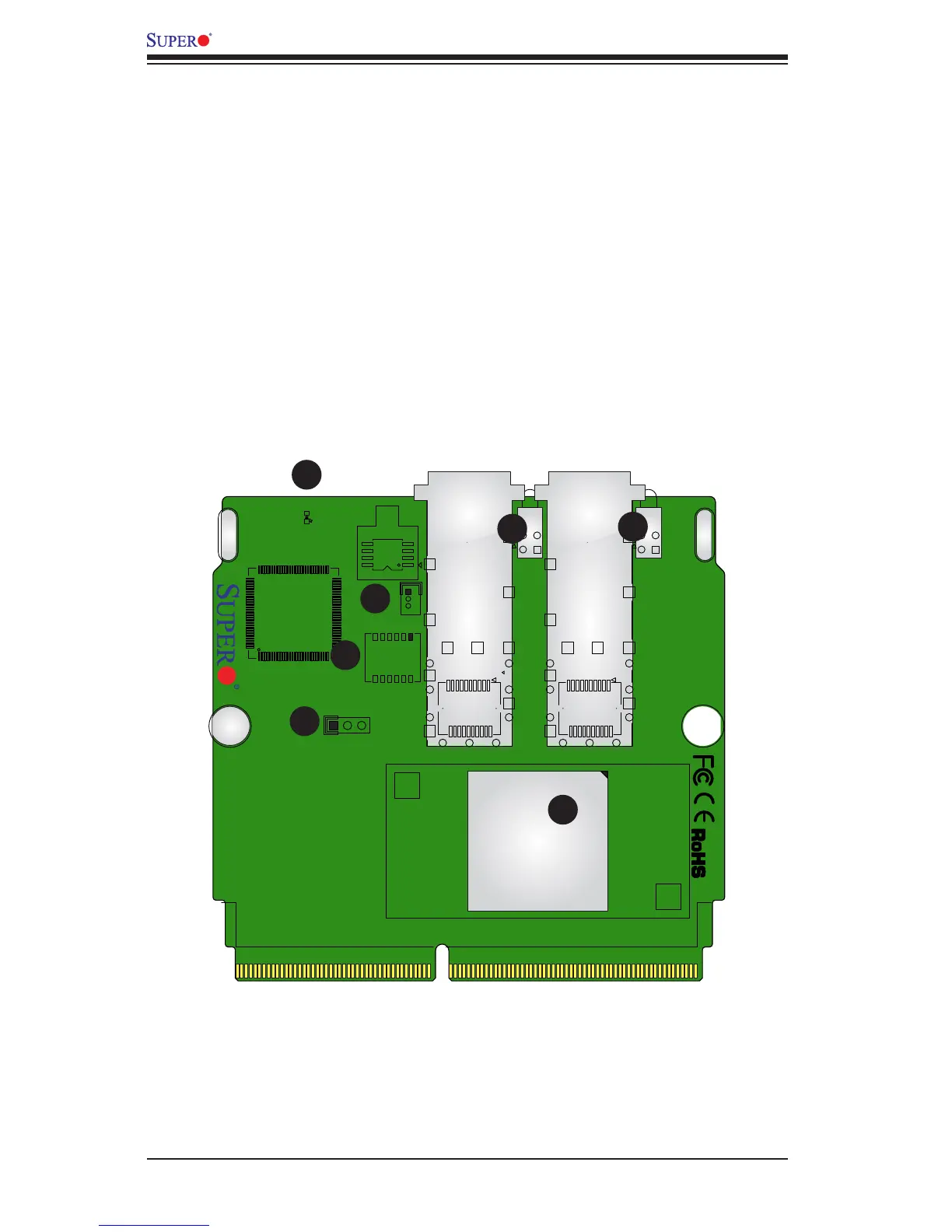

The following major components are installed on the AOC-MTGN-i2S:
1. Intel 82599 10GbE Controller
2. LAN Port 1 and LED1 Indicator
3. LAN Port 2 and LED2 Indicator
4. LED3 - Thermal Alert LED
5. JP3 - Thermal Alert Connector
6. S1 - DIP Switch
7. JPL1 - LAN Port Enable/Disable
JPL1
1
LED3
A
C
JP3
DESIGNED IN USA
AOC-MTGN-i2S
REV:1.00
LED1
LED2
LAN1
LAN2
Intel 82599ES
S1
1
6
127
1
7
6
5
4
3
2
