Chapter 2: Hardware Components
2-5

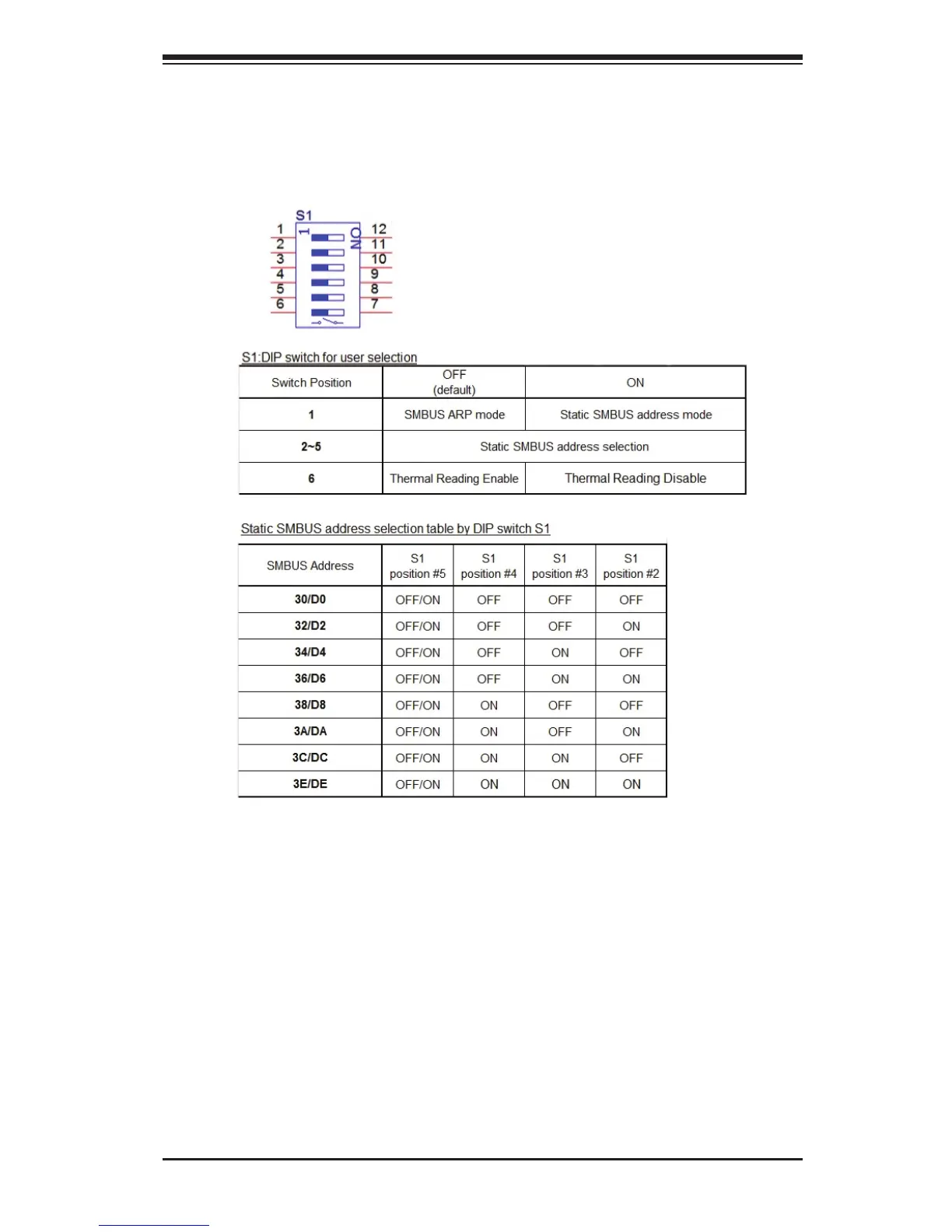

S1 DIP Switch
This
DIP
Switch
provides
SMBUS
address
selection.
Y
ou
can
congure
the
card
with static SMBUS address. Refer to the tables below for address selections.
