AOC-UTG-I2 Add-on Card User’s Manual
2-2
LAN Ports
LAN ports allow the Add-on card to connect a maximum of two network cables (CX4
connectors). Each LAN port provides up to 10-gigabits per second connection speed
and require CX4 copper-based cables for maximum throughput.The ports are
designated Port 1 and Port 2.
LAN Port LEDs
Each LAN port includes four LEDs. The LEDs indicate connection, activity, and
connection speed (in Gigabits/second).
2-2 LED Indicators
Figure 2-2 displays LED indicators on the AOC-UTG-I2 add-on card. These LEDs are
described below in Table 2-2.

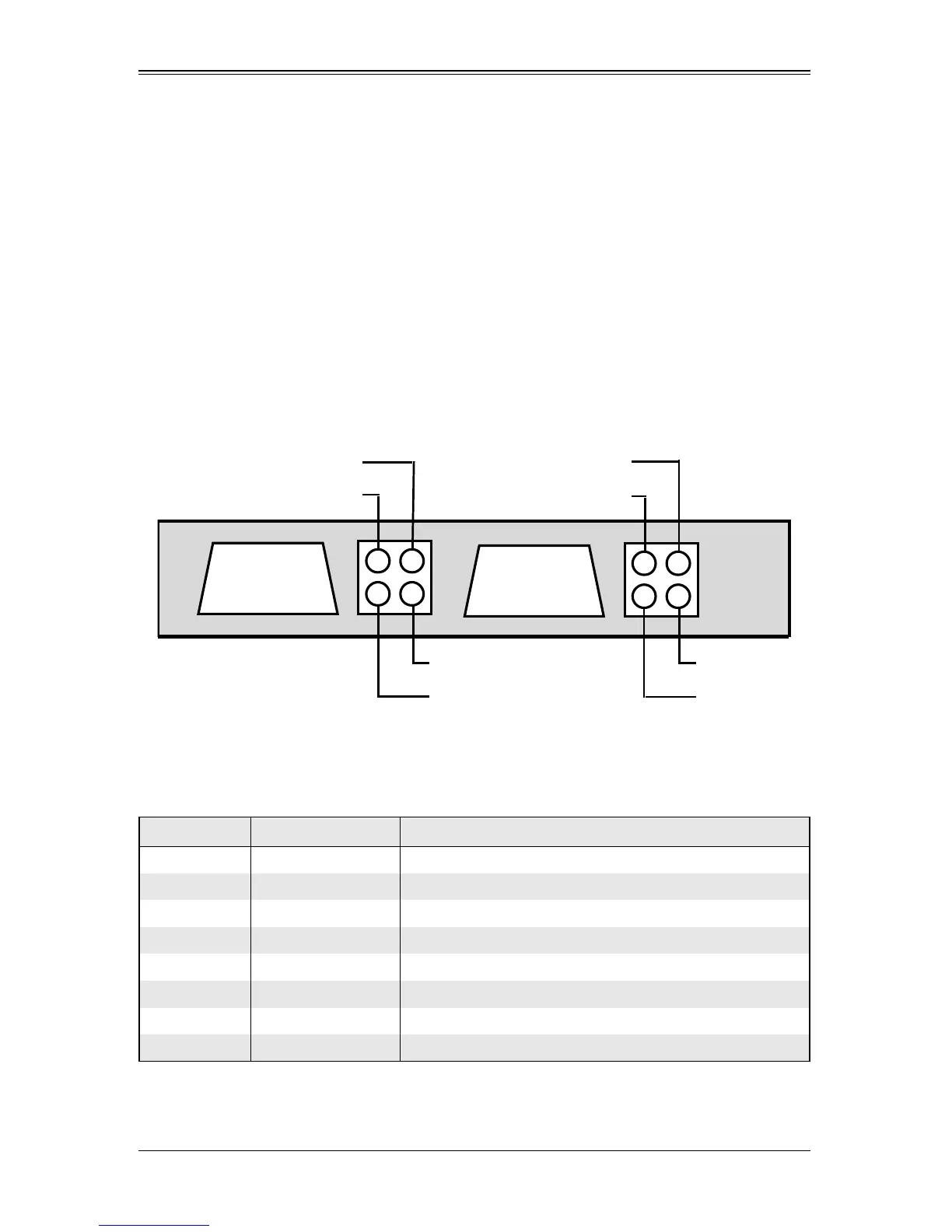

Figure 2-2. LED Indicators
Table 2-2. LAN Port LEDs
LED Number Color Definition
LED1 Yellow Link Speed 1-Gb/second
LED2 Green Link Speed 10-Gb/second
LED3 Yellow Optical Cable Connected
LED4 Green LAN Activity
LED5 Yellow Link Speed 1-Gb/second
LED6 Green Link Speed 10-Gb/second
LED7 Yellow Optical Cable Connected
LED8 Green LAN Activity
LED3/YELLOW
LED1/YELLOW
LED7/YELLOW
LED5/YELLOW
LED4/GREEN
LED2/GREEN
LED8/GREEN
LED6/GREEN
