H11SSL Motherboard Series User's Manual
Installing the Motherboard

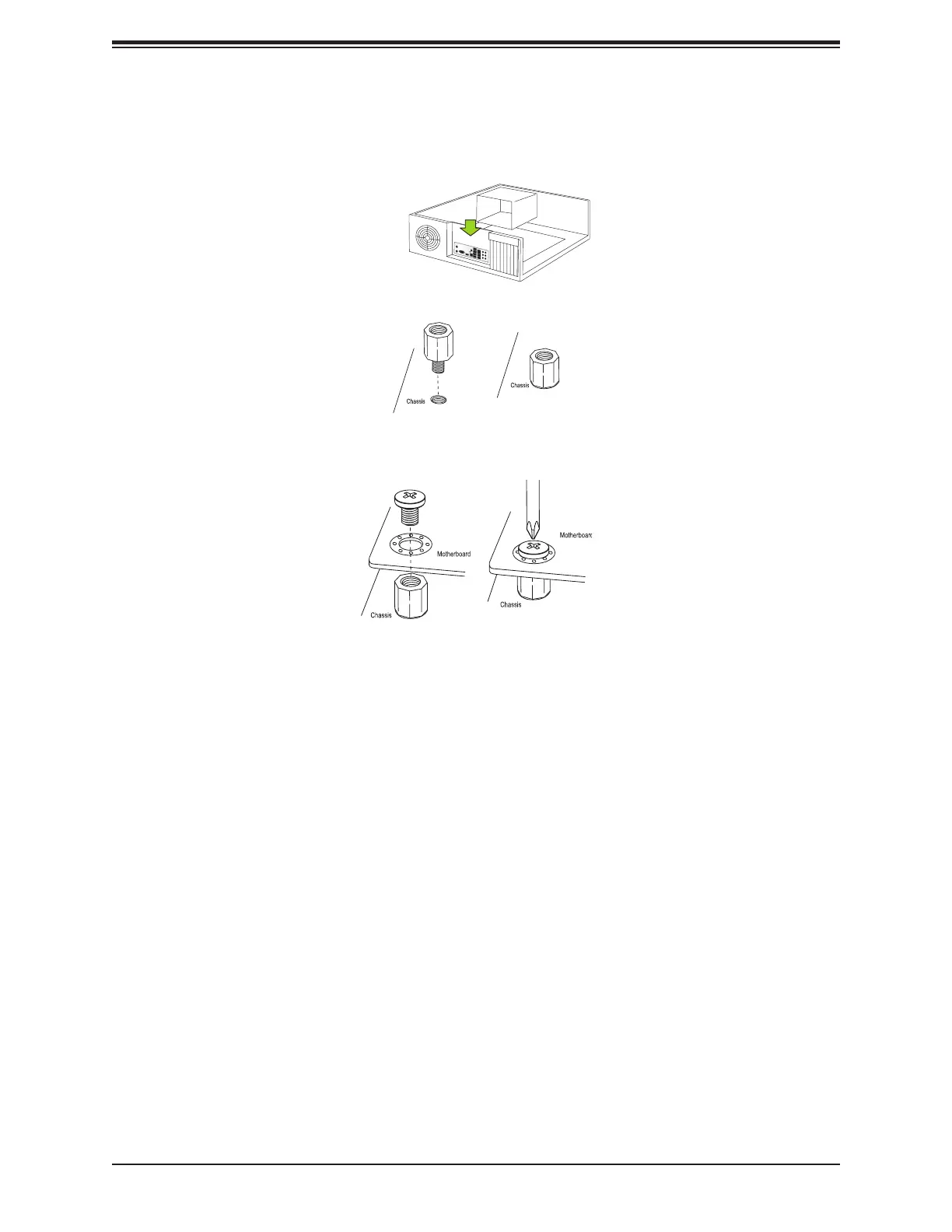

1. Install the I/O shield into the back of the chassis.
2. Locate the mounting holes on the motherboard. See the previous page for the locations.
3. Locate the matching mounting holes on the chassis. Align the mounting holes on the
motherboard with the mounting holes on the chassis.
4. Install stando󰀨s in the chassis as needed.
5. Install the motherboard into the chassis carefully to avoid damaging other motherboard
components.
6. Using the Phillips screwdriver, insert a Phillips head #6 screw into a mounting hole on
the motherboard and its matching mounting hole on the chassis.
7. Repeat Step 5 to insert #6 screws into all mounting holes.
8. Make sure that the motherboard is securely placed in the chassis.
Note: Images displayed are for illustration only. Your chassis or components might look
di󰀨erent from those shown in this manual.
