2-4
S
UPER P4SPA+/P4SPE User's Manual
2-3 Mounting the Motherboard in the Chassis
All motherboards have standard mounting holes to fi t different types of chassis.
Make sure that the locations of all the mounting holes for both the motherboard and
the chassis match. Although a chassis may have both plastic and metal mounting
fasteners, metal ones are highly recommended because they ground the moth-
erboard to the chassis. Make sure the metal standoffs click in or are screwed in
tightly. Then use a screwdriver to secure the motherboard onto the motherboard
tray. (*Note: some components are very close to the mounting holes. Please take
precautionary measures to prevent damage done to these components when you
install the motherboard into the chassis.)
Lever
Processor

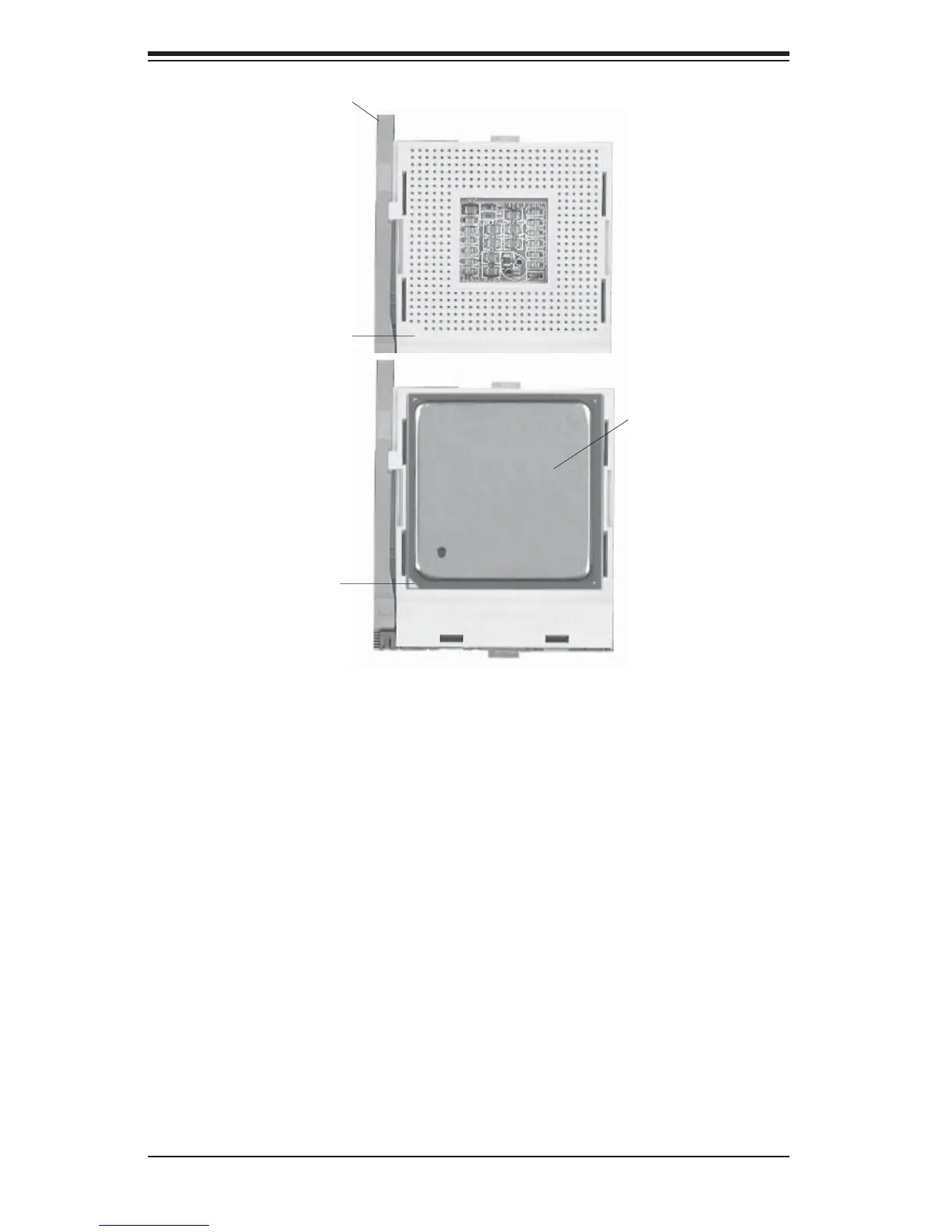

Figure 2-1. 478-pin mPGA Socket: Empty and with Processor Installed
Pin 1
Pin 1
To Next Page
